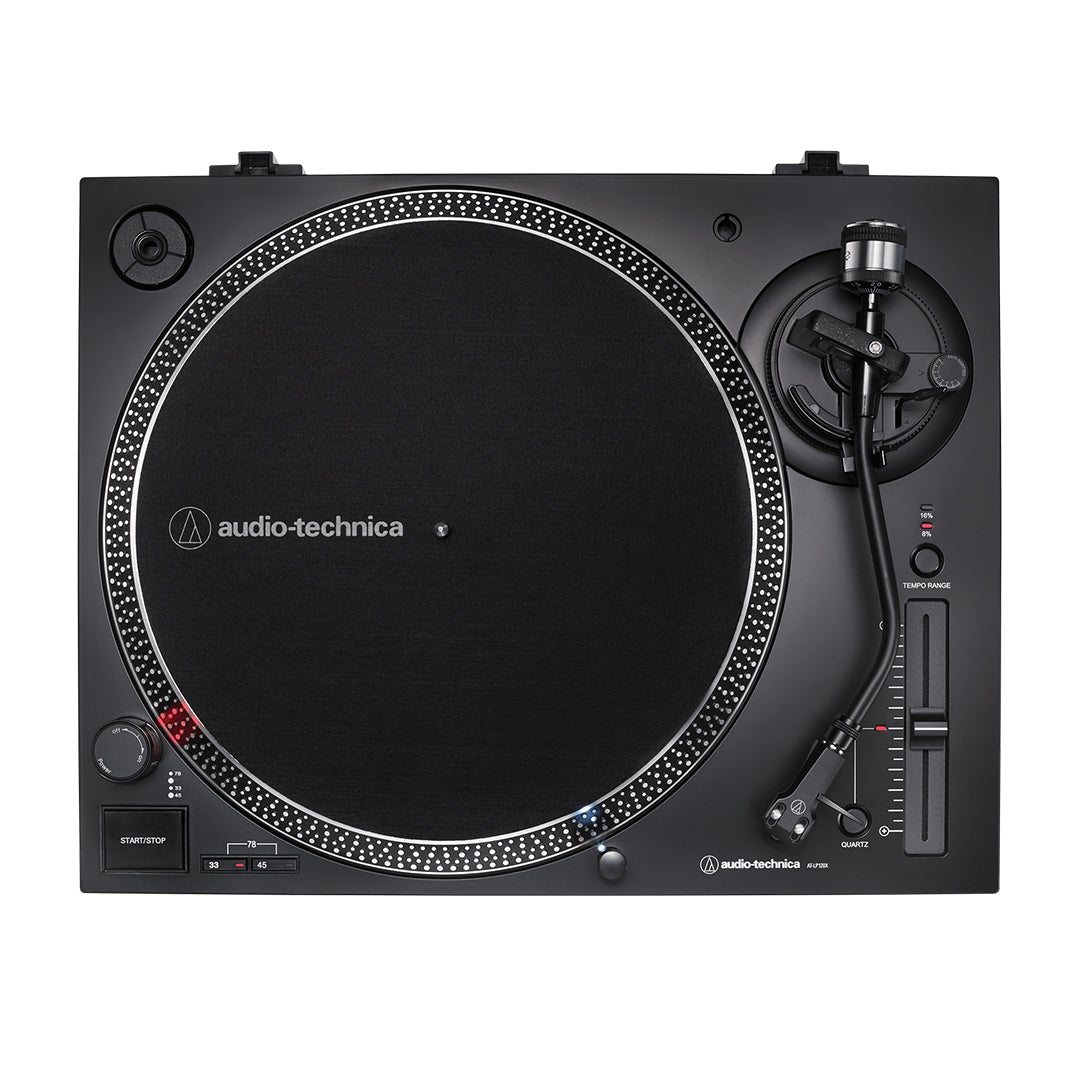

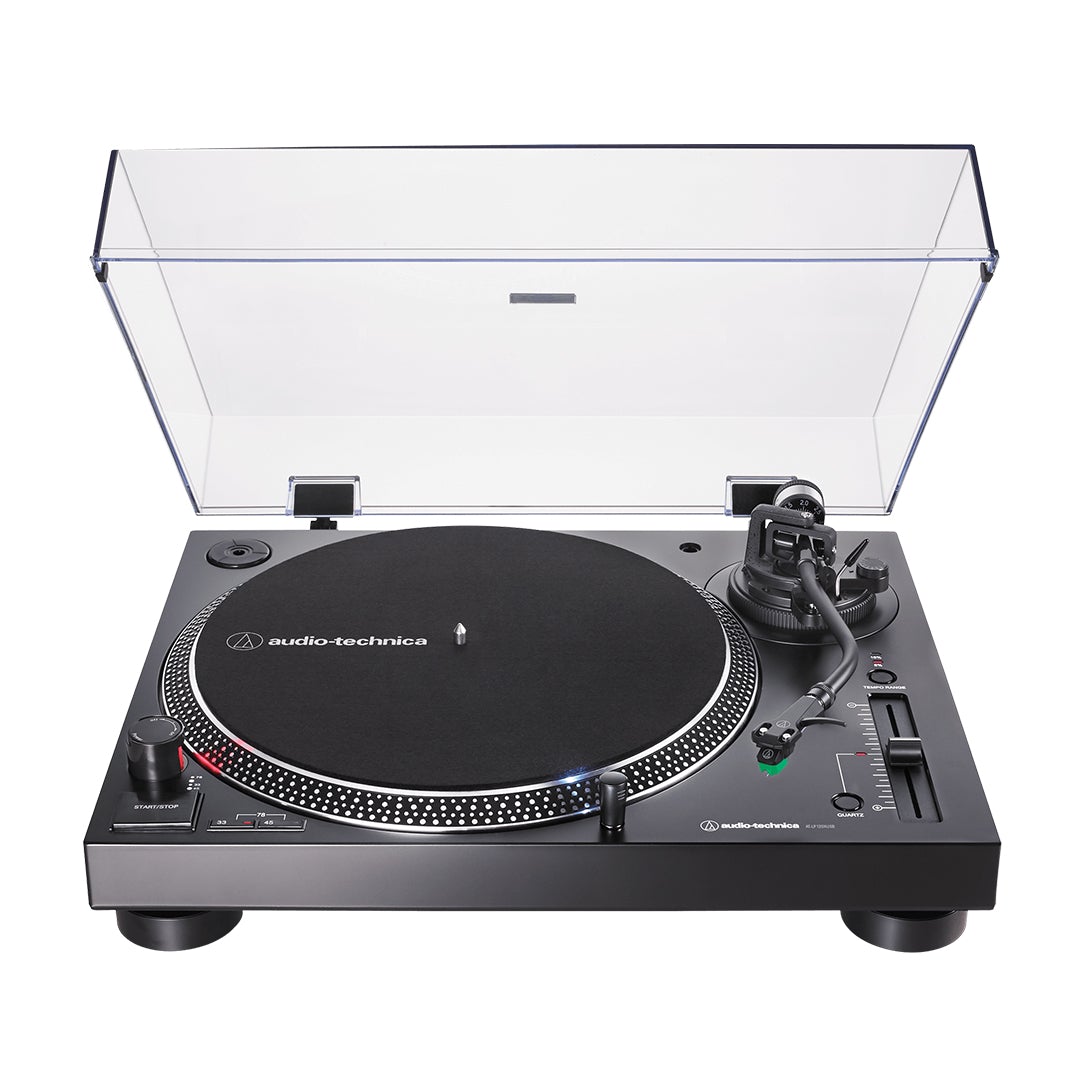

Audio-Technica AT-LP120XUSB Direct-Drive 3 Speed Turntable
Product Overview
This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier.
The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files.

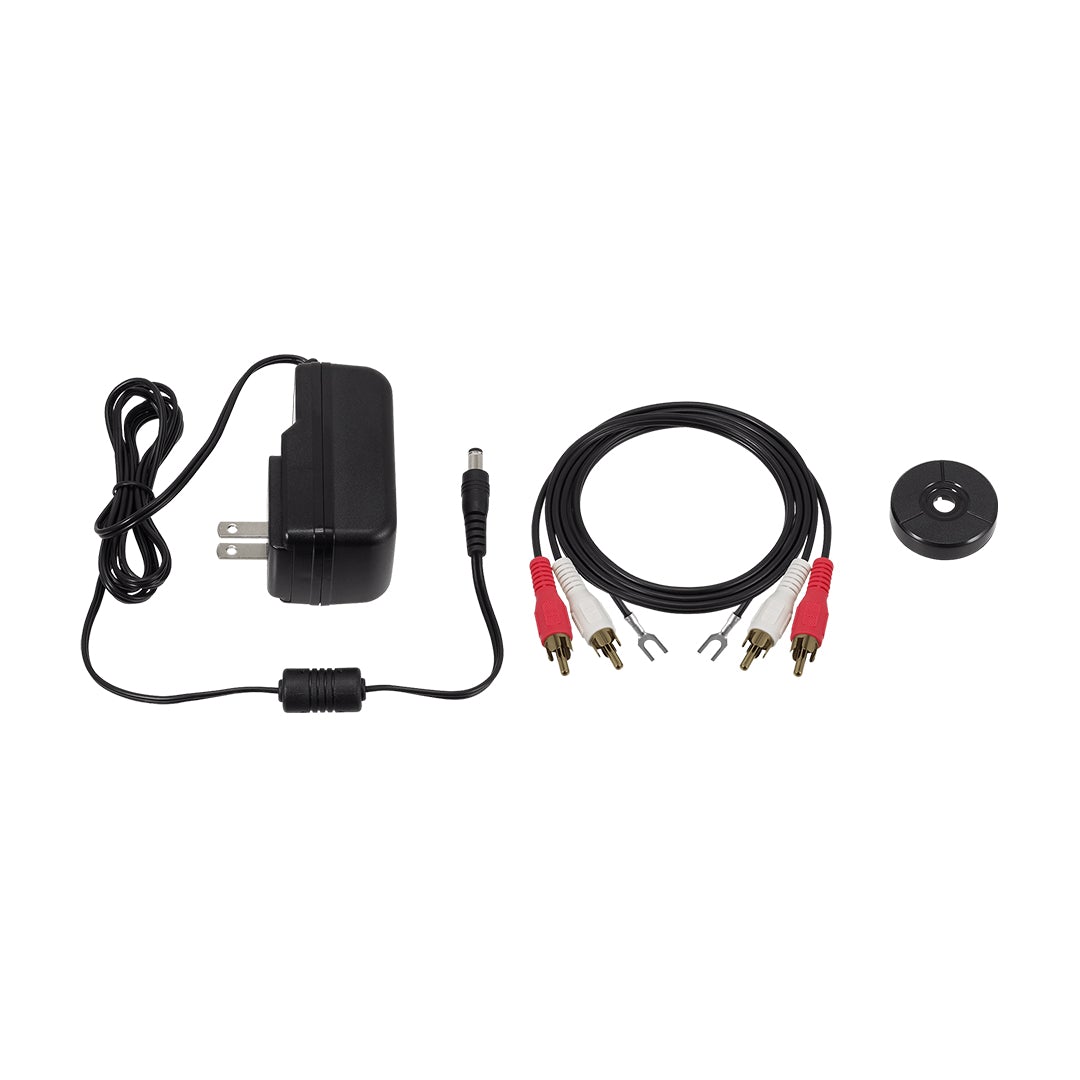

But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.
The turntable features an S-shaped tonearm with adjustable tracking force and an AT-HS6 universal ½"-mount headshell with an AT-VM95E Dual Magnet™ phono cartridge.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
FEATURES
- VINYL VARIETY: Plays 33-1/3 RPM, 45 RPM and 78 RPM Records

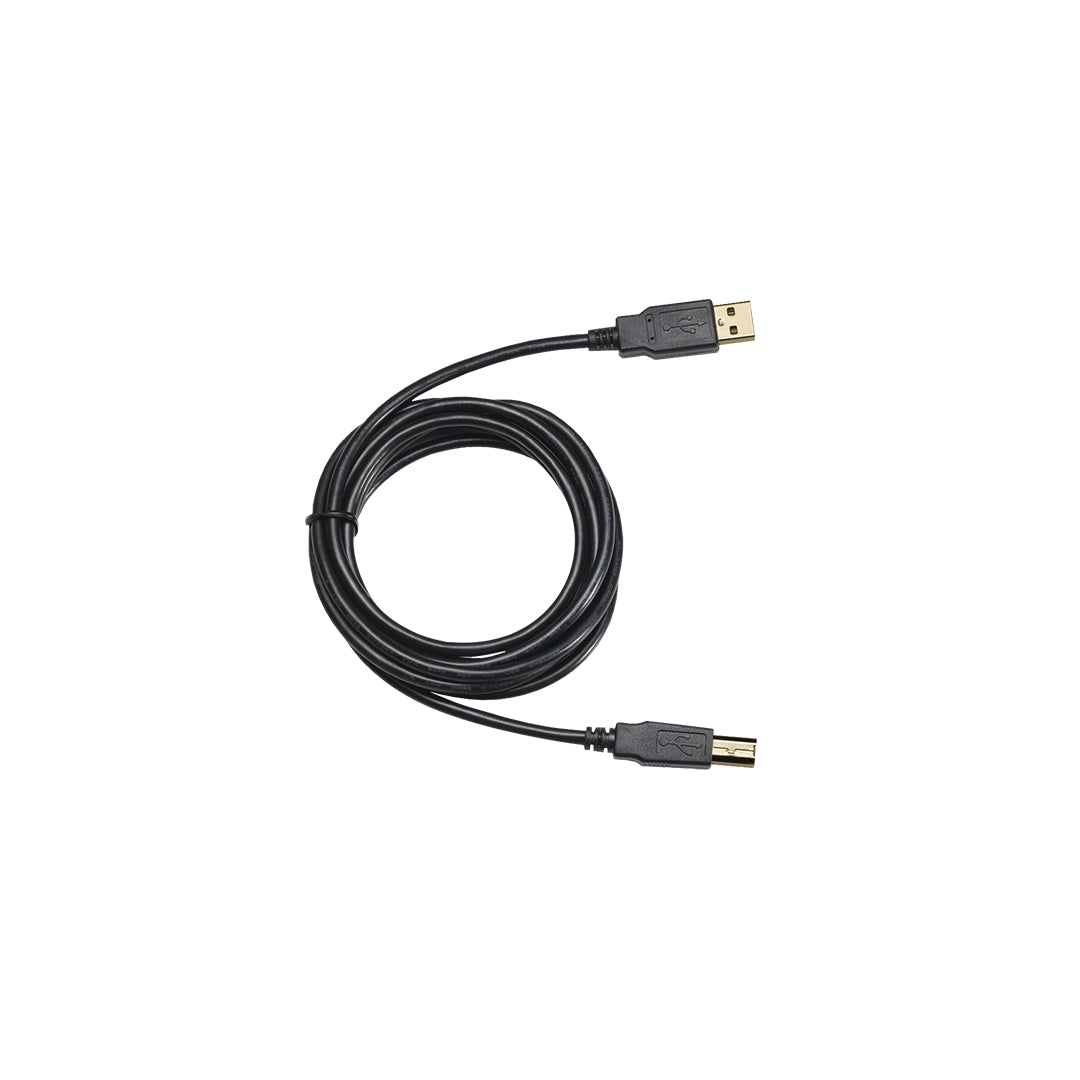

- AUDIO FLEXIBILITY: USB and Analog Output
- INTEGRATED PRE-AMP: Built-in Switchable Phono Pre-Amplifier

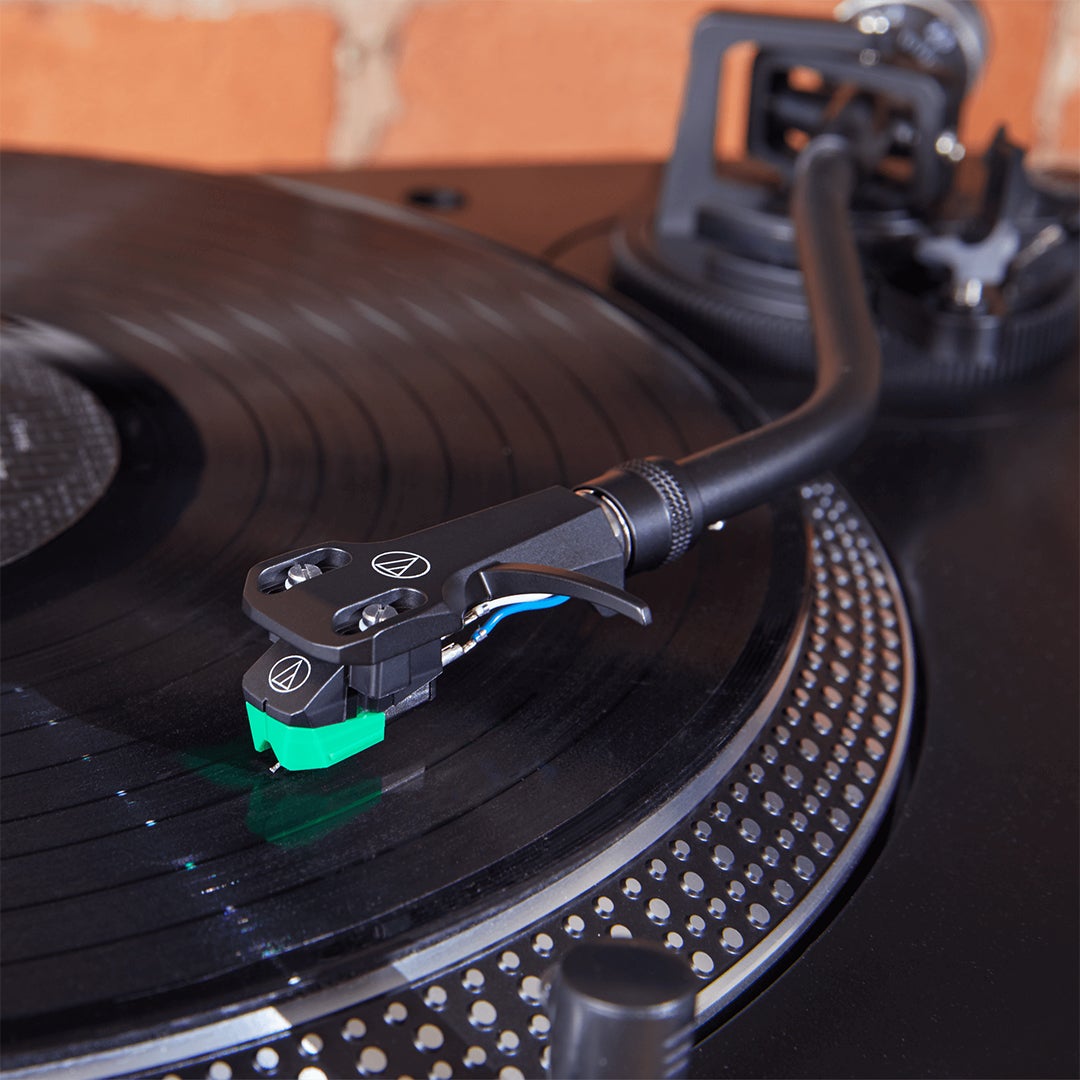

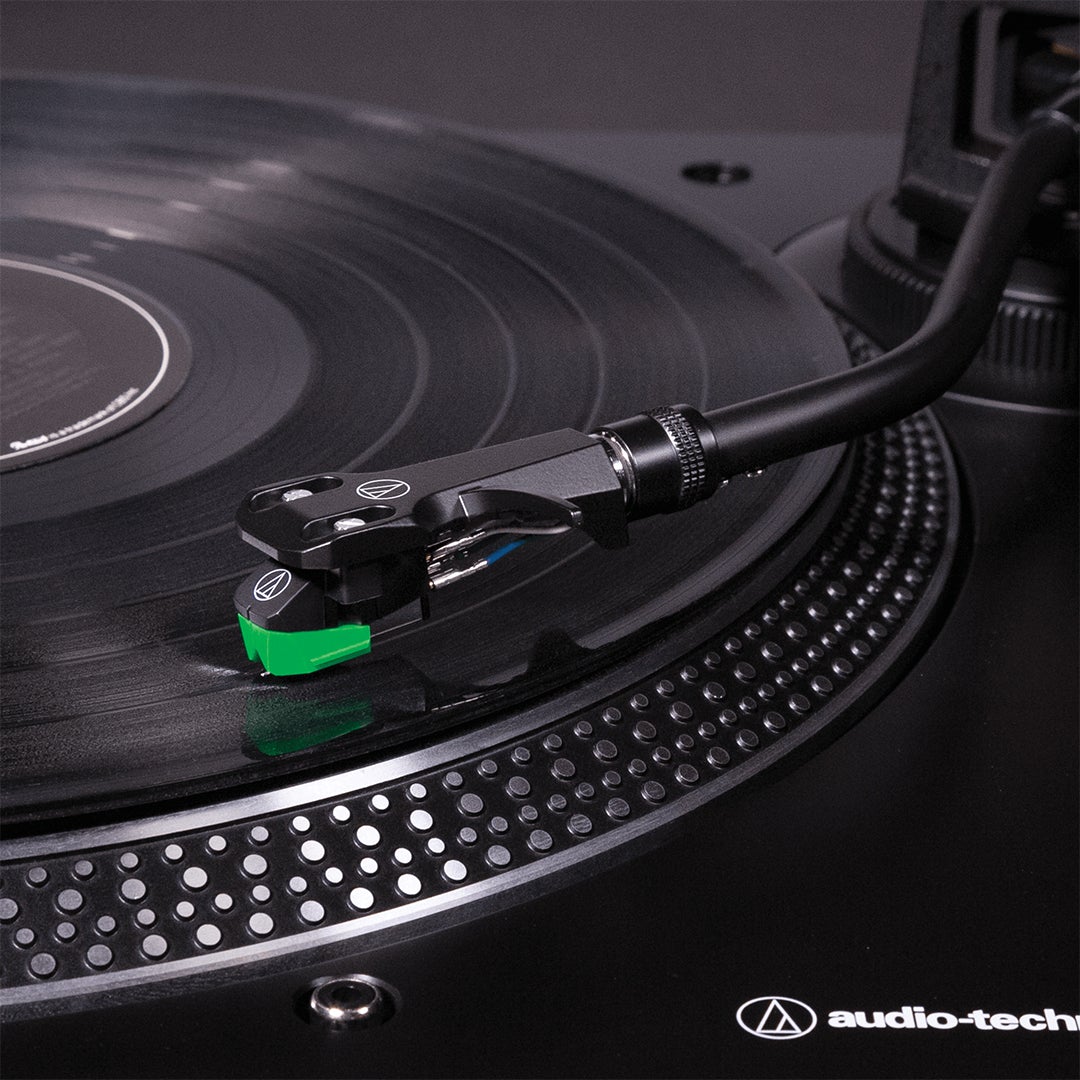

- PREMIUM CARTRIDGE: AT-VM95E Dual Magnet™ Phono Cartridge
- PROFESSIONAL-GRADE PLATTER: Professional-grade anti-resonance, die-cast aluminium platter with felt mat
-
DIGITISE YOUR VINYL: Convert your vinyl records to digital audio files by downloading and using the free Mac- and PC-compatible Audacity recording software
Specifications
- Type: 3-speed, fully manual operation
- Motor: DC servo motor
- Drive Method: Direct drive
- Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
- Turntable Platter: Die-cast aluminum
- Starting Torque: >1.0 kgf.cm
- Braking System: Electronic brake
- Wow and Flutter: <0.2% (WTD) @ 3 kHz (JIS)
- Signal-to-Noise Ratio: >50 dB
- Output Level: Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE”: 240 mV nominal at 1 kHz, 5 cm/sec
- Phono Pre-Amp Gain: 36 dB nominal, RIAA equalized
- USB Function: A/D, D/A – 16-bit/44.1 kHz or 48 kHz USB selectable; Computer interface – USB 1.1 Compliant Windows 7 or above, or MAC OS X or above
- Power Supply Requirements: 100 to 240 V, 50/60 Hz, 1.5A Max.
- Dimensions: 452.0 mm (17.80") W x 352.0 mm (13.86") D x 141.6 mm (5.57") H
- Weight: 8 kg (17.6 lbs.), without dust cover
- Notes: Tonearm type: Balanced S-shaped tonearm with detachable headshell, Effective arm length: 230.5 mm, Overhang: 16 mm, Tracking error angle: Less than 3 degrees, Applicable cartridge weight: 3.5-8.5 g, Anti-skating range: 0-4 g, Replacement Stylus: AT-VMN95E USB operation system requirements, PC or Mac with an available USB port (USB1.1 or higher), Windows 7 or above, or Mac OS X or above
