Systemline E50 In Wall Bluetooth Amplifier - White (No Speakers)

Ideal for bathrooms small and large, the Systemline E50 is a wall mounted amplifier unit which lets you stream music from your smart phone or tablet.

A powerful 2 x 18W amplifier will fill even the largest of bathrooms with high quality music played through the discreet waterproof ceiling speakers.

Control the volume, track and more with simple hand gestures, with a wave of the hand you can change tracks, a circular motion will turn the volume down! Perfect for wet hands.

You could even connect a bathroom television to the system so you can enjoy your TV programs with room-filling sound.

Systemline E50 Features

GESTURE CONTROLS

The real unique feature that sets the E50 apart from its rivals is the gesture controls! Simply wave your hand in front of the unit to change the volume, mute and un-mute. Ideal for when you're in the bathroom, no need to touch the panel to adjust volume or tracks with wet hands.

INSTALLATION

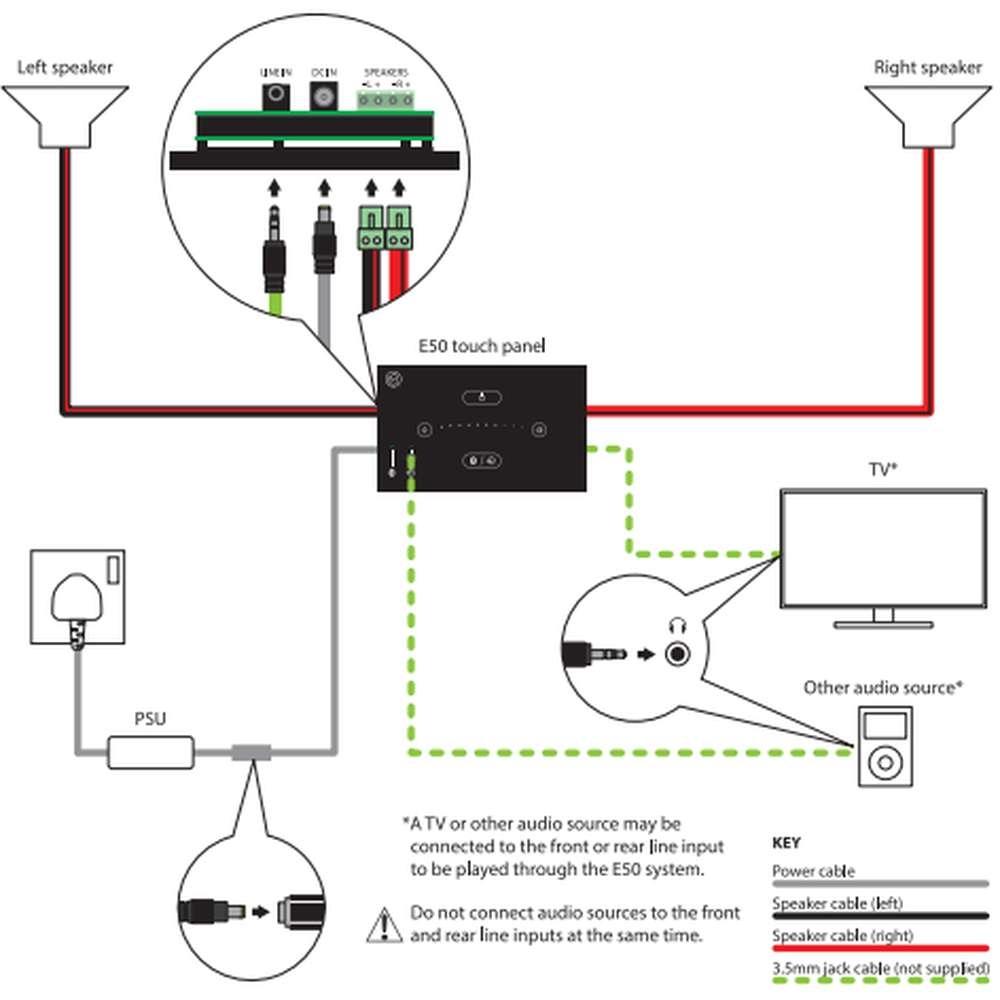

Installing the E50 is pretty easy, the amplifier fits to a standard 2G UK Backbox, install the power supply to a three pin socket mounted above the ceiling or in a cupboard and run the speaker cable to the two ceiling mounted speakers.

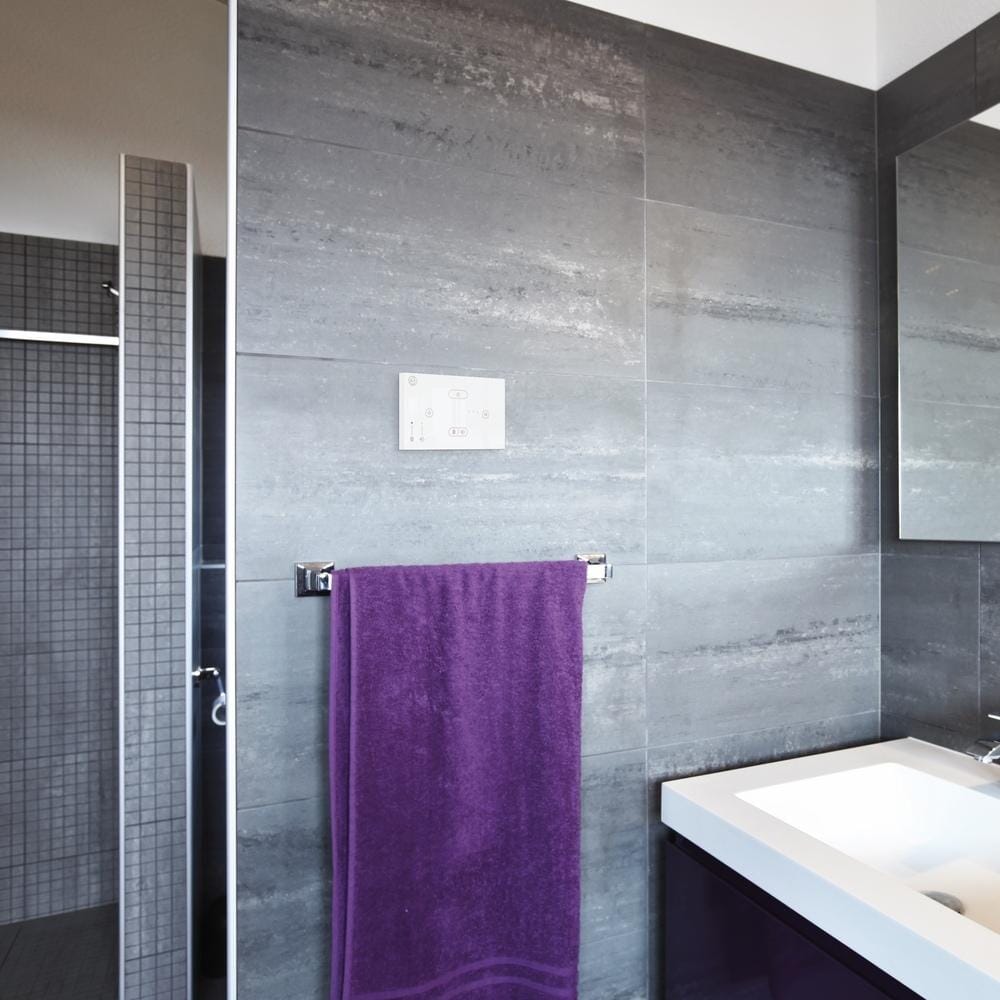

If it's going in a bathroom then you need to make sure it's outside of Zone 2, so it can't go in the shower, over the bath or sink. Most installations are either by the door, or on the outside of the room to make sure you're clear of all bathroom regulations completely!

A quick bead of silicone sealant around the wall frame will prevent steam ingress and the 3.5mm audio jack bung should also be used (included).

WHAT YOU GET

The E50 is a complete, ready to install bundle and contains everything you need to complete your new radio system install.

• Systemline E50 Amplifier Keypad with Gesture Control
• Power Supply (5M)
• 47mm 2 Gang Dry Lining Back Box
• Speaker Cables (2 x 7M)

• Dimensions: 150 x 90mm x 47mm (WxHxD)
• Inputs: Rear Line In 3.5mm Stereo Jack (Audio In), DC Jack (18V DC In)
• Outputs: Speaker x 2 (Up to 4 x 8ohm speakers)
• Bluetooth: Class 2 Bluetooth 2.1 aptX for CD-quality transmission, Selectable device name to allow multiple units to be used in close proximity, Secure pairing system
• Range: Up to 10m
• Amplifier: 2 x 18W into 8 Ohms
• Dimensions: (WxHxD) 50mm x 82mm x 68mm
• Plug Type: UK 3 Pin
• Inputs: 110-240VAC 50-60Hz 1.6A
• Outputs: 18V 2.8A

• 1 x Systemline E50 Amplifier
• 1 x Power Supply (5M)
• 1 x 5M DC Power Cable Extension
• 1 x 47mm 2 Gang Dry Lining Back Box
• 2 x 7.5m Speaker Cables

• Installation Manual
• E50 User Manual
• E Series with 4 speakers
