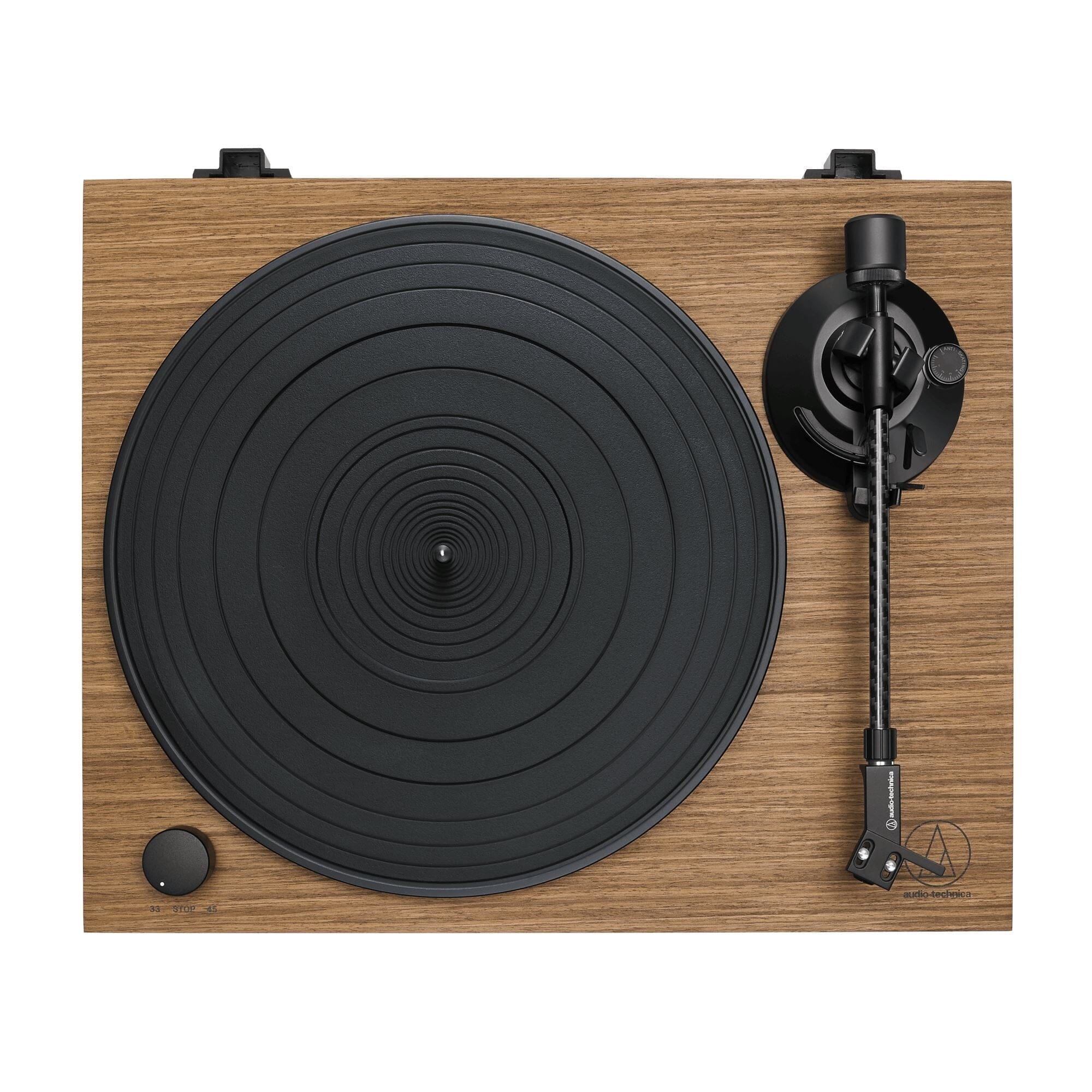

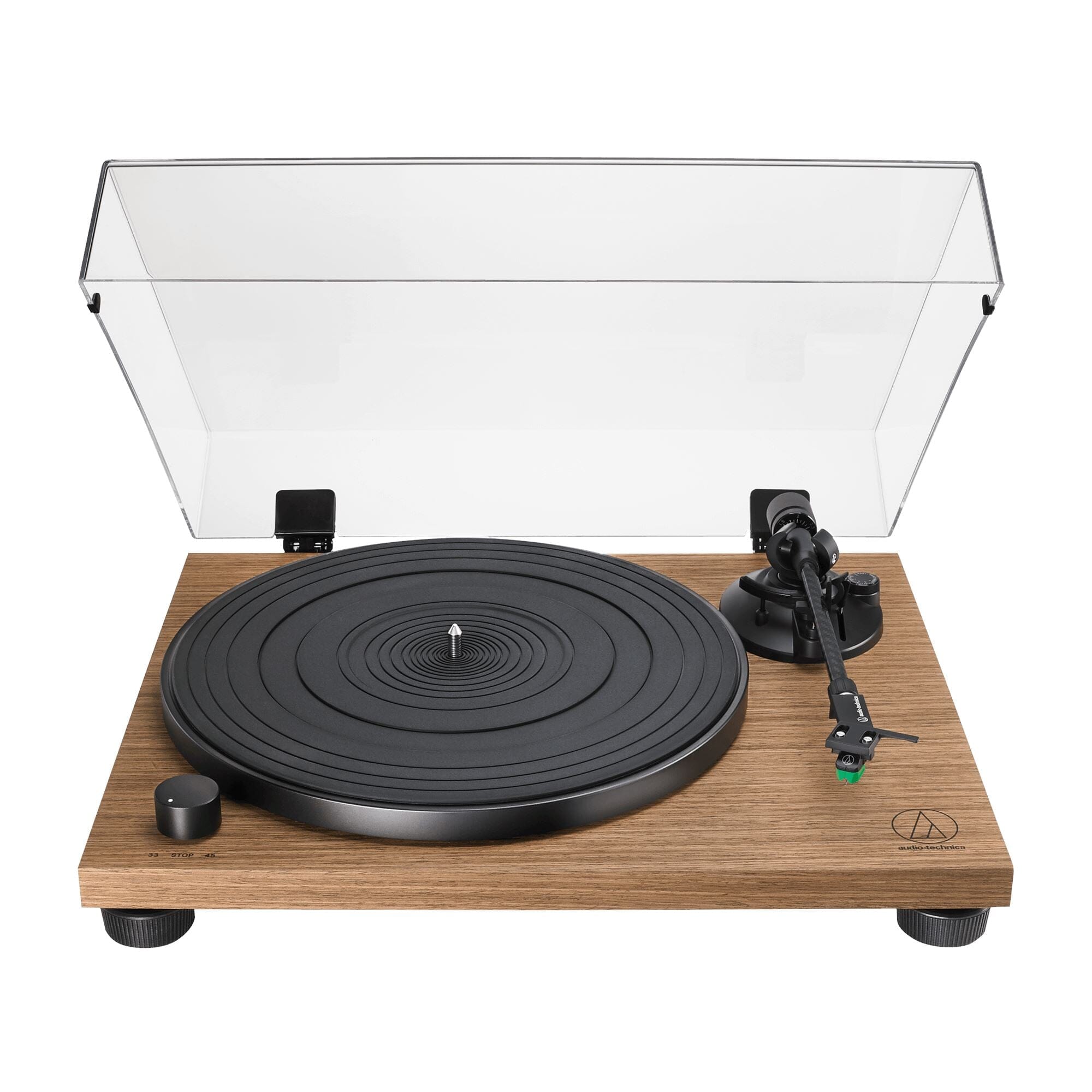

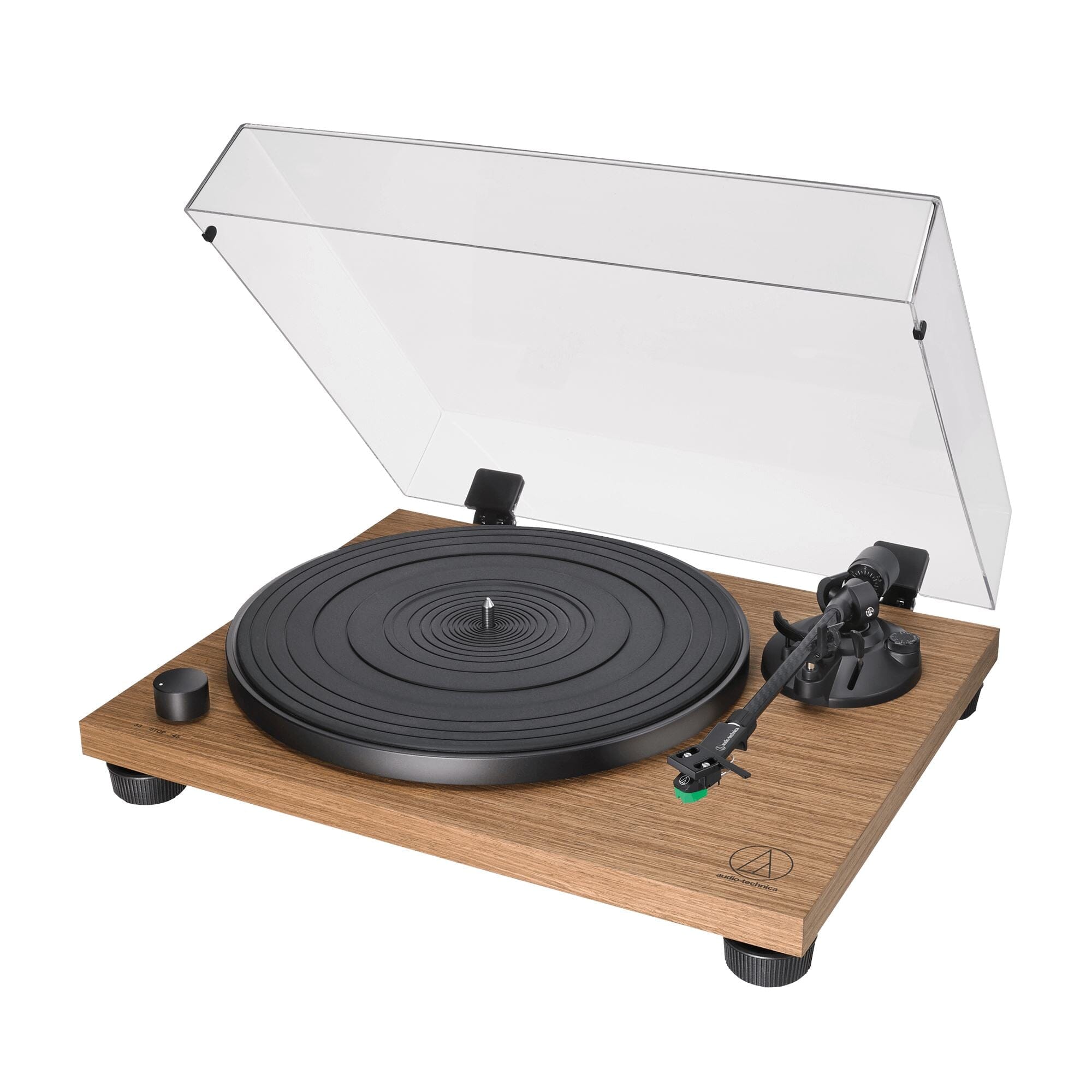

Audio-Technica AT-LPW40WN Fully Manual Belt-Drive Turntable

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

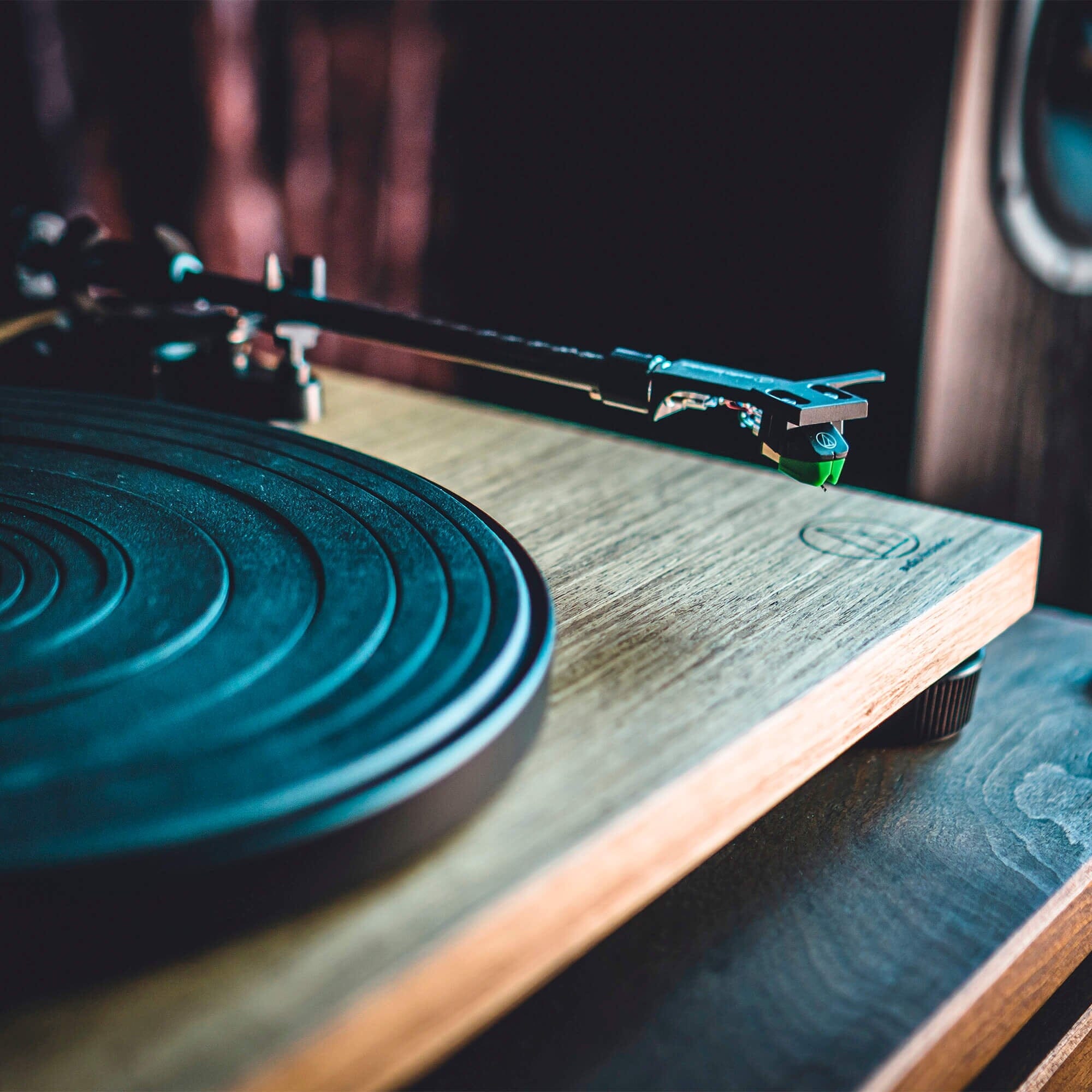

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

FEATURES

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Motor features a speed-sensor system to maintain accurate platter rotation speed
• Fully manual operation
• Adjustable dynamic anti-skate control
• Professional anti-resonance, die-cast aluminium platter with rubber mat

• AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus

• AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

• Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest

• Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer

• Built-in switchable phono pre-amplifier for phono or line-level output

• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

• Type: 2-speed, fully manual operation
• Motor: DC servo motor w/speed stability control
• Drive Method: Belt-drive
• Speeds: 33-1/3 RPM, 45 RPM
• Wow and Flutter: < 0.15 % WRMS (33 RPM) at 3 kHz
• Signal-to-Noise Ratio: > 60 dB
• Output Level Pre-amp: ""PHONO"": 4.0 mV nominal at 1 kHz, 5 cm/sec
• Pre-amp: ""LINE"": 200 mV nominal at 1 kHz, 5 cm/sec
• Phono Pre-Amp Gain: 35 dB nominal, RIAA equalized
• Power Supply Requirements: 100 to 240 V, 50/60 Hz
• Dimensions: 117 x 420 x 340 (H x W x D mm)
• Weight: 5.0 kg

• Audio Technica LPW40WN Quick Start Guide
• Audio Technica LPW40WN User Manual
