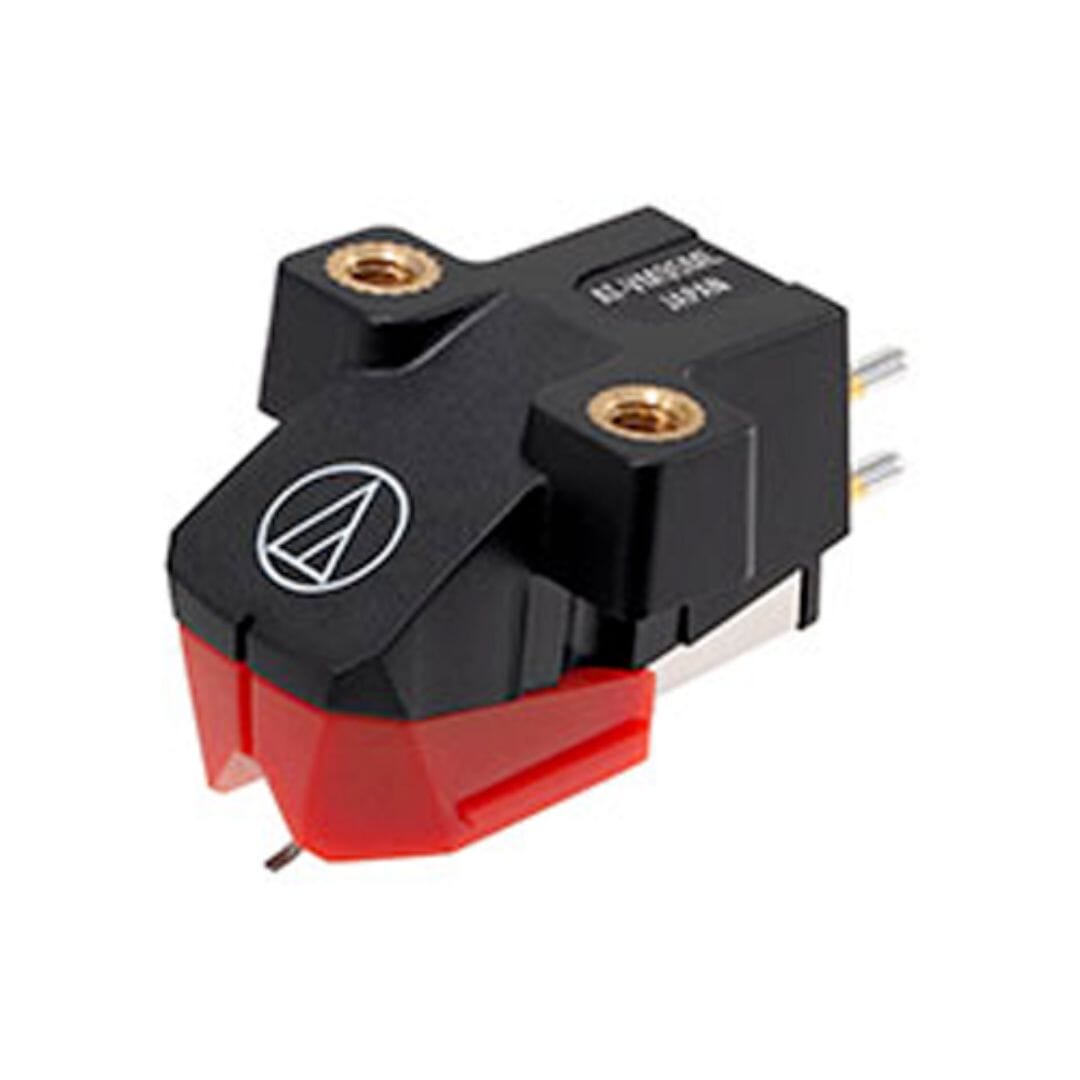

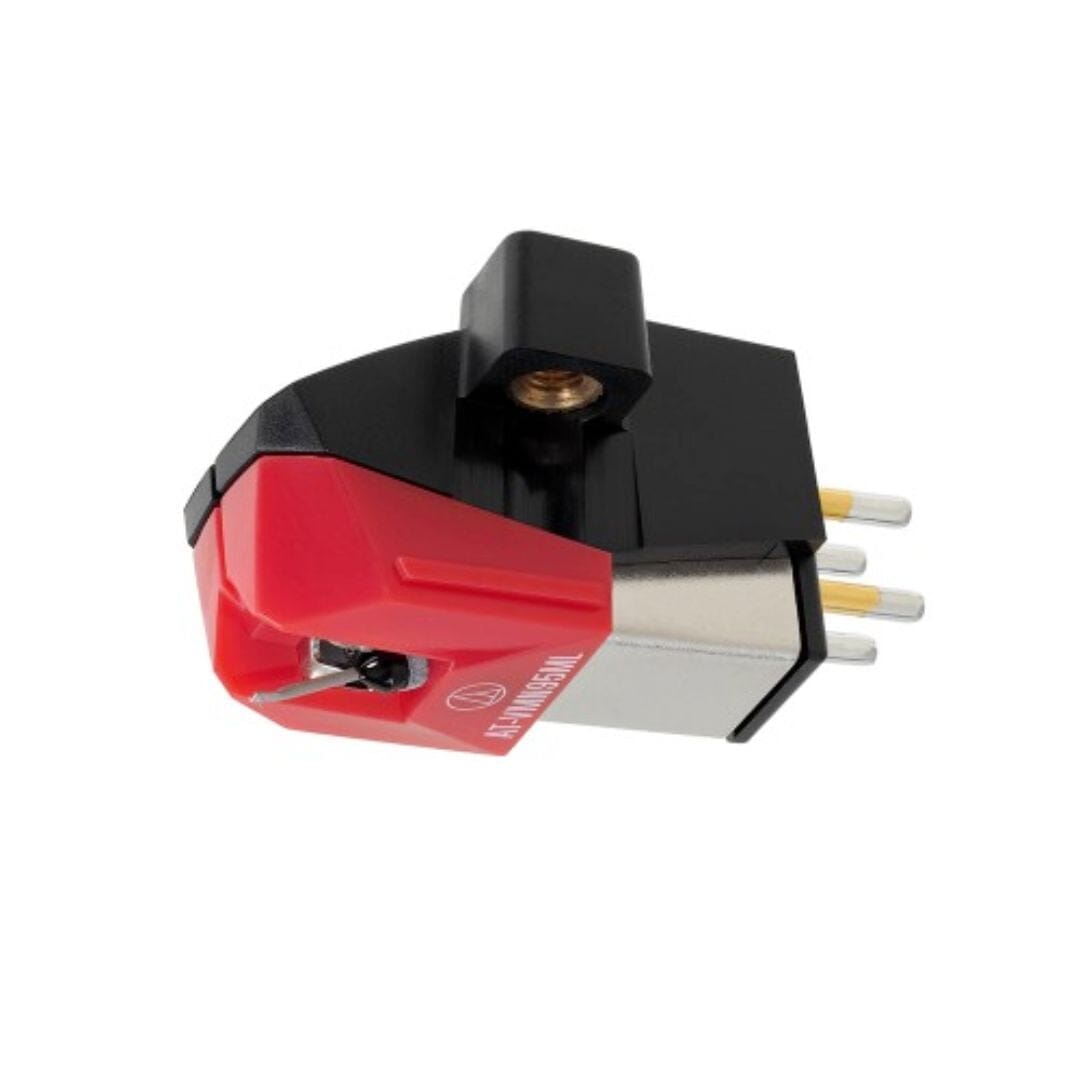

Audio-Technica AT-VM95ML VM95 Series Microlinear Stereo Cartridge

The AT-VM95ML, features a Nude Microlinear diamond, not only the Microlinear stylus will permit to double the duration of your stylus.

The performance of a line contact stylus, will minimise the “inner groove distortion” as well as providing extended frequency response and maximise resolution in the medium and high frequencies of the audio program material.

FEATURES

• Aluminium Cantilever: Ensures durability and precise tracking for accurate playback of your vinyl records.


• 3.5mV Output Voltage: Delivers a robust output signal, ensuring clear and dynamic sound reproduction.


• Compatible Body with all VM95 Series Stylus Assemblies: Offers versatility and flexibility, allowing you to easily swap stylus assemblies to suit your audio preferences.


• 20 to 23,000Hz Frequency Response: Provides a wide frequency range, capturing both the subtle nuances and powerful dynamics of your music.

• Model:AT-VM95ML
• Type: VM Stereo Dual Magnet
• Mounting: 1/2” centres
• Frequency Response: 20 - 25,000 Hz
• Channel Separation: 23 dB (1 kHz)
• Output Channel Balance: 1.5 dB (1 kHz)
• Output Voltage: 3.5 mV (@ 1 kHz, 5 cm/sec)
• Vertical Tracking Angle: 23°
• Vertical Tracking Force Range: 1.8 - 2.2g (standard 2.0 g)
• Stylus Shape: Microlinear
• Stylus Size: 2.2 x 0.12 mil
• Stylus Construction: Nude Square Shank
• Cantilever: Aluminium Pipe
• Coil Impedance: 3.3 kΩ (1 kHz)
• Coil Inductance: 550 mH (1 kHz)
• DC Resistance: 485 Ω
• Static Compliance: 20 x 10 – 6 cm / dyne
• Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
• Wire Used for Coil: T.P. Copper
• Recommended Load Impedance: 47,000 Ω
• Recommended Load Capacitance: 100-200 pF
• Cartridge Weight: 6.1g
• Dimensions(HxWxD): 17.2 x 18.9 x 28.3mm
• Replacement Stylus: AT-VMN95ML
