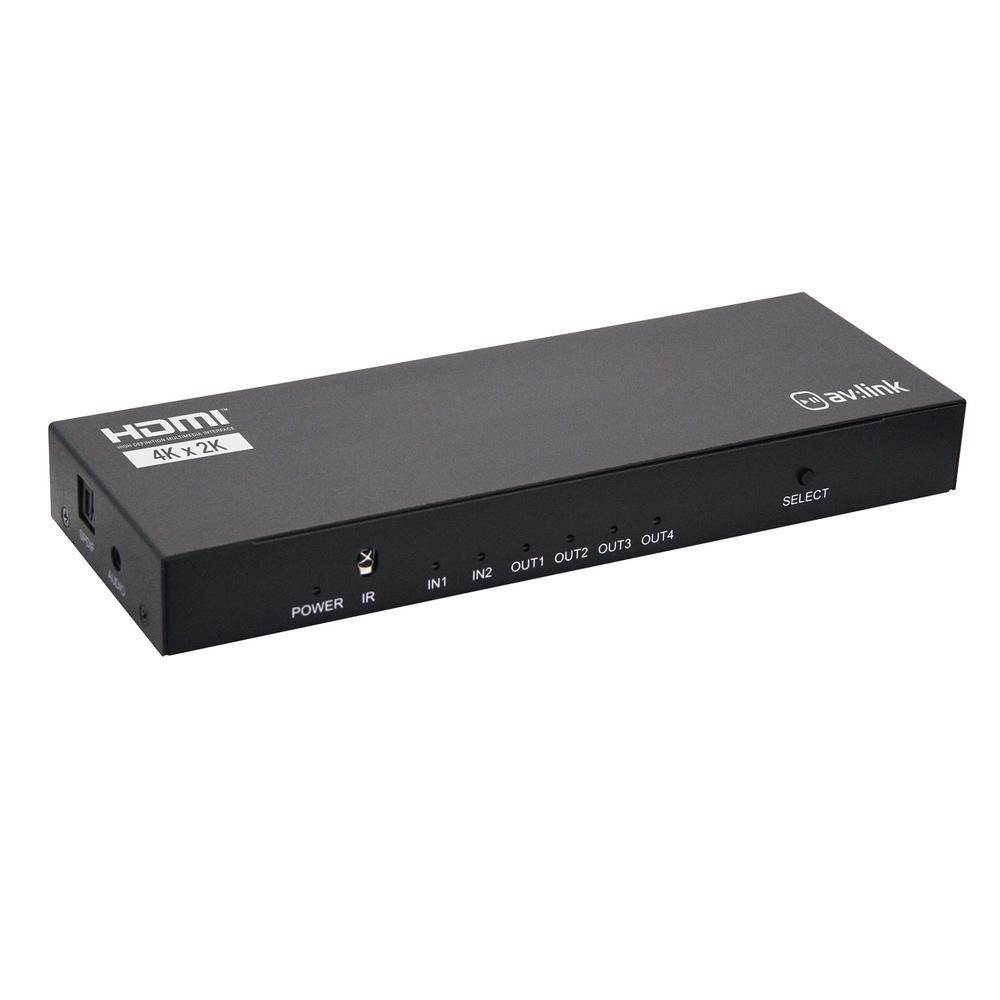

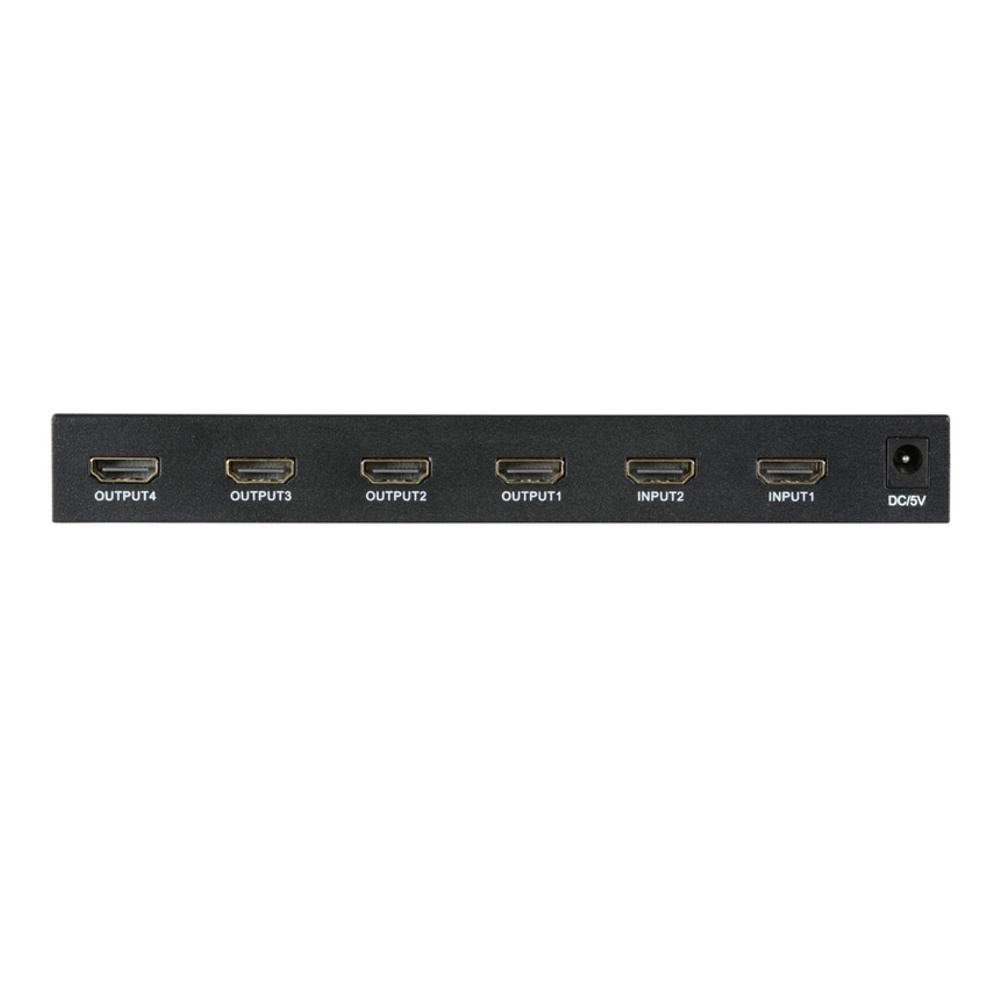

AV Link HSS24 4K HDMI Switch / Splitter - 2 x 4
A 4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs.
Combine up to 25m cable per output for HD, or 16m for 4K without signal loss. SPDIF / 3.5mm jack audio. IR remote.
4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs. Use with HDMI cables of a combined 25m per output for HD resolution, or a combined 16m per output for 4K resolution, without signal loss.
SPDIF and 3.5mm jack outputs allow the audio signal of the selected source device to simultaneously be channelled through a separate sound system; ideal for hospitality and entertainment venues.

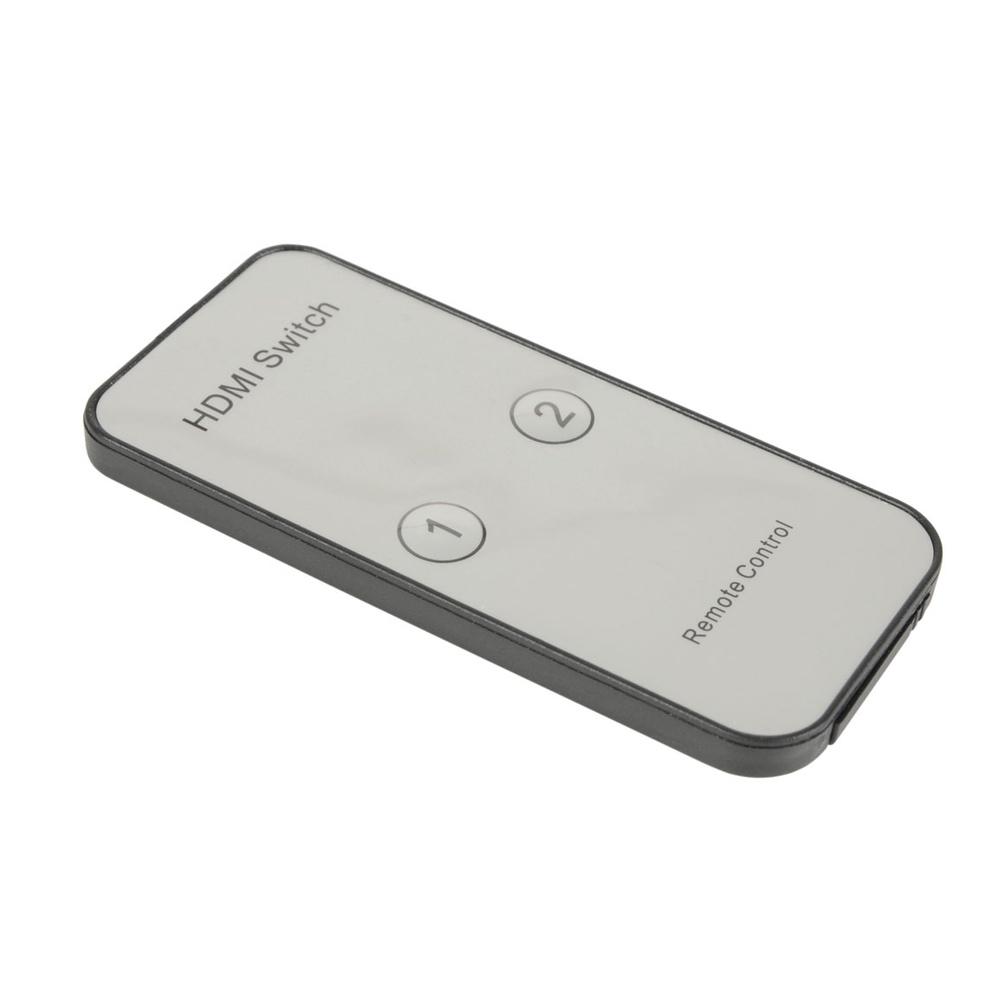

Supplied with IR remote to switch between sources.
FEATURES
- Simple connection and operation
- Gold plated HDMI connectors for optimum signal transfer
- Supports HDMI v2.0a resolutions up to 3840 x 2160 @ 60Hz
- Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
- Digital SPDIF and analogue 3.5mm jack audio outputs
- Ideal for entertainment, hospitality and other commercial venues with multiple displays
- IR remote and UK power adaptor supplied
- HDMI version: v2.0a
- Resolution: Up to 3840 x 2160 @ 60Hz
- Display colours: 8/10/12bit deep colour
- HDCP version: 1.4 (input only)
- Audio format: DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
- Max. bandwidth: 600MHz
- Max. baud rate: 6Gbps
- Transmission distance: 20m max HD or 10m max 4K (20m input/output @ 1080p and 10m input/output @ 4K)
- Max. working current: 500mA
- Operating temperature range: -15°C ~ +55°C
- Battery remote: CR2025 (supplied)
- Dimensions: 200 x 70 x 25mm
- Weight: 305g
- 1 x HDMI switch / splitter
- 1 x IR remote control
- 1 x UK power adaptor
- 1 x User manual
