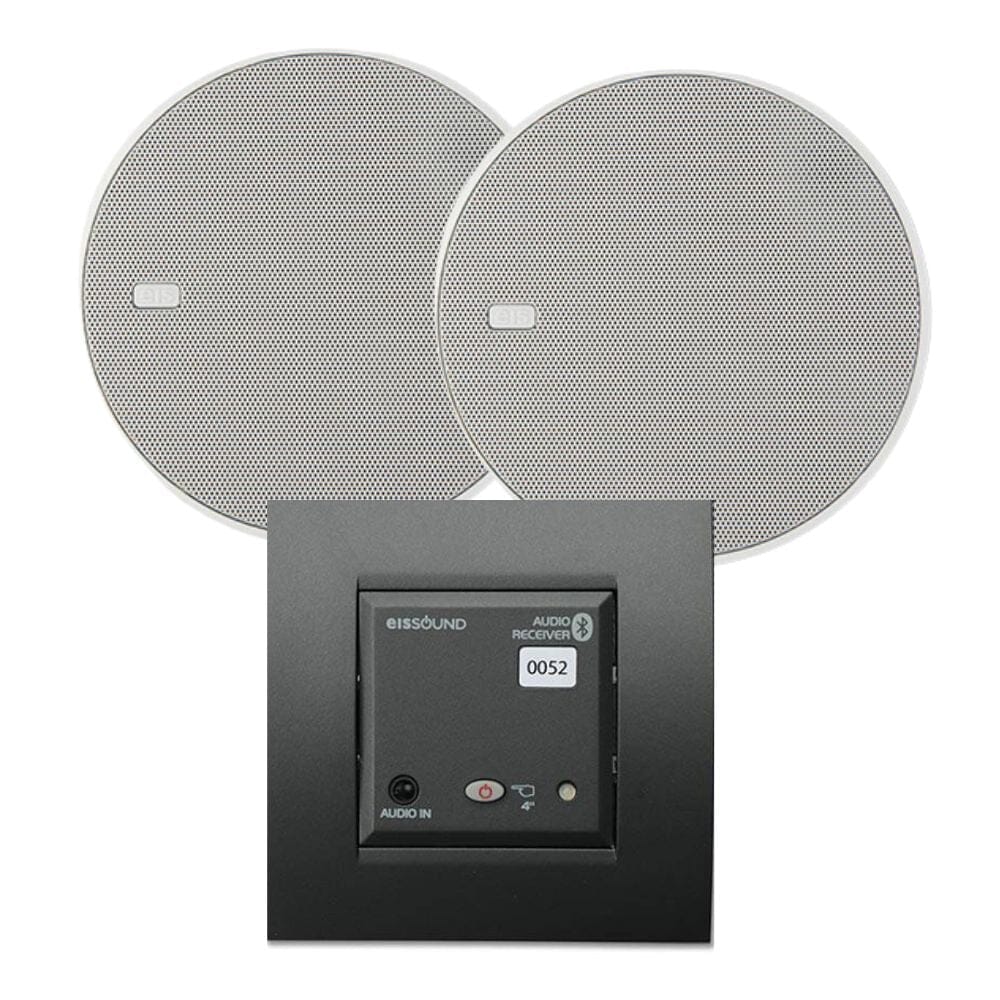

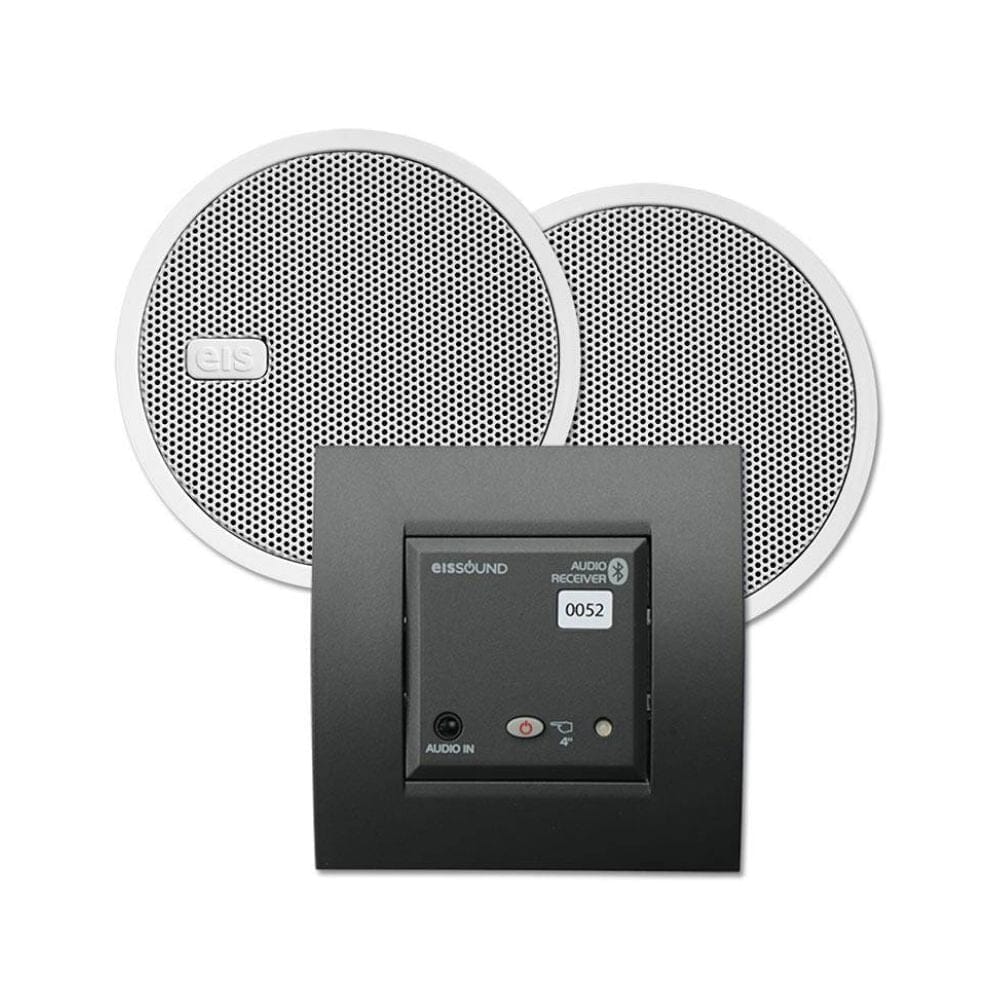

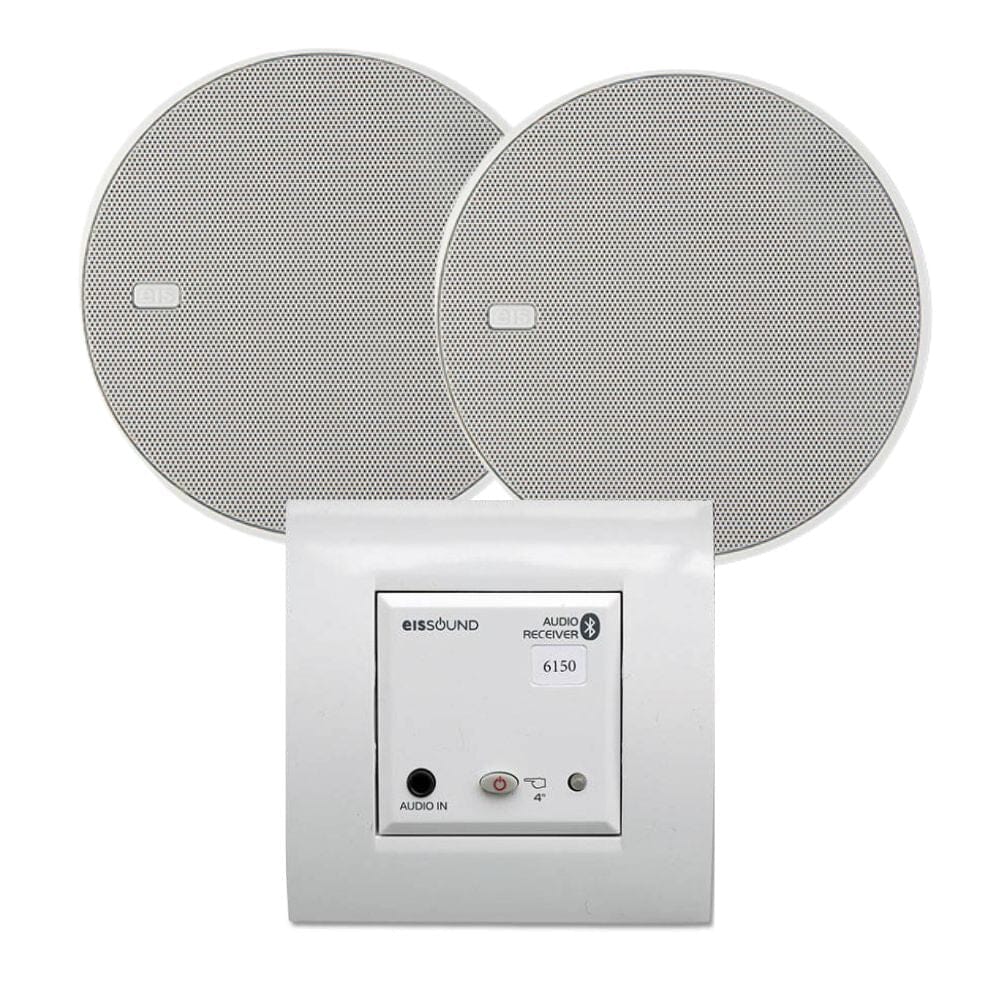

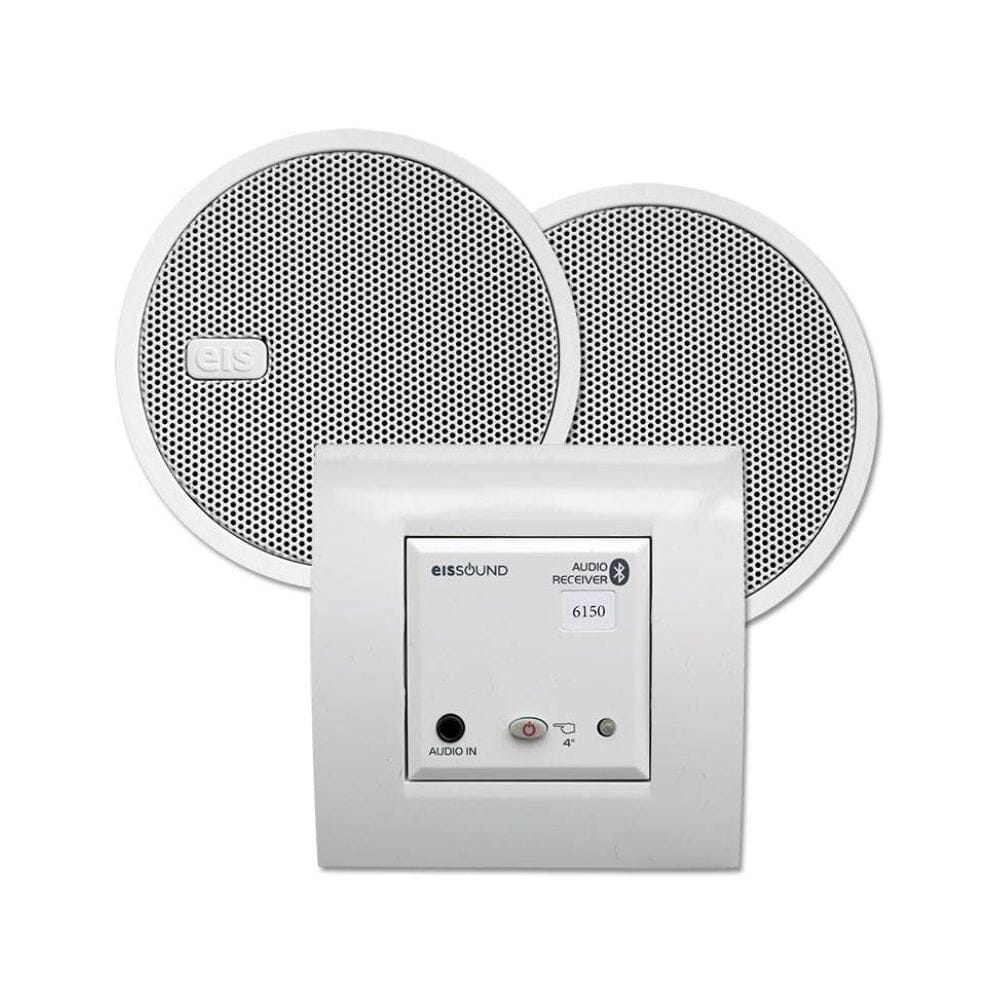

KB Sound In Wall BT Bluetooth Ceiling Speaker System (2.5" - 5")

The KB Sound Mando BT is a popular in wall Bluetooth speaker system with low profile in ceiling speakers designed for quality background audio in your home.

It's perfect for use in kitchens, bedrooms, bathrooms, garden rooms and many more possibilities.

With a single button on the faceplate it's very easy to use, simply pair your smart phone or Amazon Echo device and you can stream any music from your device.

The stylish gloss black, white or stainless steel faceplates at the same size as a UK light switch will look at home in any room.

FEATURES

• BLUETOOTH STREAMING: Wirelessly connect your smart phone, tablet or computer to the Mando unit via Bluetooth. Any music, radio station, podcast or audio book that your device can play will sound through the ceiling speakers from a range of up to 10 metres.


• WORKS WITH ALEXA: You can pair an Amazon Echo device (sold separately) to the Mando via Bluetooth allowing you voice control over your speaker system. Simply ask Alexa to play your favourite radio station or internet streaming service and it'll sound through the discreet in-ceiling speakers.


• EASY TO USE: The Mando has been specially designed to be simple to operate. With only one button on the faceplate you can easily turn the unit on or off and initiate Bluetooth pairing mode. More time to enjoy your music.


• STYLISH DESIGN: The Mando features a high gloss glass surround and faceplate. Available in black or white they look stylish and high-end in any decor. The Mando is also available in Silver which is a high quality stainless steel effect. Whatever your decor the Mando will fit right in.


• SECURE PAIRING: Connecting to the Mando is very easy, you simply press and hold the power button for four seconds which initiates Bluetooth pairing mode allowing you to connect on your smart device. This is both easy to do and also prevents neighbours from connecting to your speaker system.

• VOLUME LIMITER: If you're planning to install the Mando into a kids bedroom or in hospitality such as an hotel room or similar then you'll be pleased to know that you can easily adjust the amplifiers output volume to reduce the chance of annoying the neighbours.


• STEREO / MONO SWITCH: A switch on the rear of the unit allows you to switch between stereo and mono playback mode. Most of the time you'll be using stereo, however if you want to put one speaker in the bedroom and one speaker in the en-suite then you can set it to mono mode to achieve this.

EASY TO INSTALL

The Mando BT ceiling speaker system is surprisingly simple to install.

It sits in a standard UK back box (47mm deep) and can be fitted to either a flush mount box or a plasterboard box.

Powered from an in-line 15V transformer, much the same as a 12V downlight then connected to the ceiling speakers with the included 2 core speaker cable.

Once installed it is the same size and similar profile to a standard UK light switch meaning it's easy and discreet to fit into any room.

The Mando BT can be used to power ceiling speakers in the bathroom, but the amplifier should be mounted outside of the room.

AMPLIFIER

• Measurements - Exterior: 45 x 45 x 42mm - (W x H x D)
• Measurements - Cavity: 45 x 45 x 36mm (W x H x D)
• Measurements - Face Cover: 45 x 45mm (W x H)
• Voltage: 15 - 16Vdc
• Consumption - Bluetooth Operation: 22 - 111 mA
• Consumption - 3.5mm Jack Operation: 22 - 99mA
• Input Signal - Bluetooth Operation: 100 - 550 mVrms
• Input Signal - 3.5mm Jack Operation: 7 - 60 Kohms
• Output Signal: 2.5 Wrms - 8 Ohms
• Line Output Signal: 1.82 Wrms (Terminals 65,66,4), 50 ohm (Terminals 65,66,4 Output Impedance)
• Amplifier Trigger Signal: 14Vdc (Terminals 62,4), 1 Kohms (terminals 62,4 Output Impedance)
• Left / Right Channel Separation: 58dB
• Passband: 45 - 20.000 Hz
• Distortion: 0.1%
• SNR: 84dB
• Bluetooth ID: 0000 - 9999
• Bluetooth Specifications: Class 2 BT2.1 + EDR, A2DP 1.2, AVRCP 1.4
• Wireless Transceiver: 2.5 Ghz
• RF Power Transmitter: 7 dBm
• Range: 10m

POWER SUPPLY

• Measurements: 49 x 47 x 24mm (w x h x d)
• Voltage: 93 - 264 Vac
• Frequency: 47 - 63 Hz
• Power: 12W
• Output Voltage: 15 Vdc
• Output Current: 800mA
• Consumption Demand: 12W

SPEAKERS

Size: 2.5"

• Overall Diameter: 95mm
• Cutout Size: 76mm
• Depth: 36mm
• Power Handling: 3W (nominal) 5W (max)
• Impedance: 8 ohms
• Frequency: 170Hz-12Khz
• Colour: White

Size: 5"

• Overall Diameter: 182mm
• Cutout Size: 150mm
• Depth: 57mm
• Power Handling: 10W (nominal) 20W (max)
• Impedance: 8 ohms
• Frequency: 90Hz-20Khz
• Colour: White

• 2 x Ceiling Speakers (2.5" / 5")
• 1 x Amplifier (White / Black / Silver)
• 1 x Glass Surround (White / Black / Silver)
• 1 x Back Plate
• 1 x Power Supply
• 1 x User Manual
