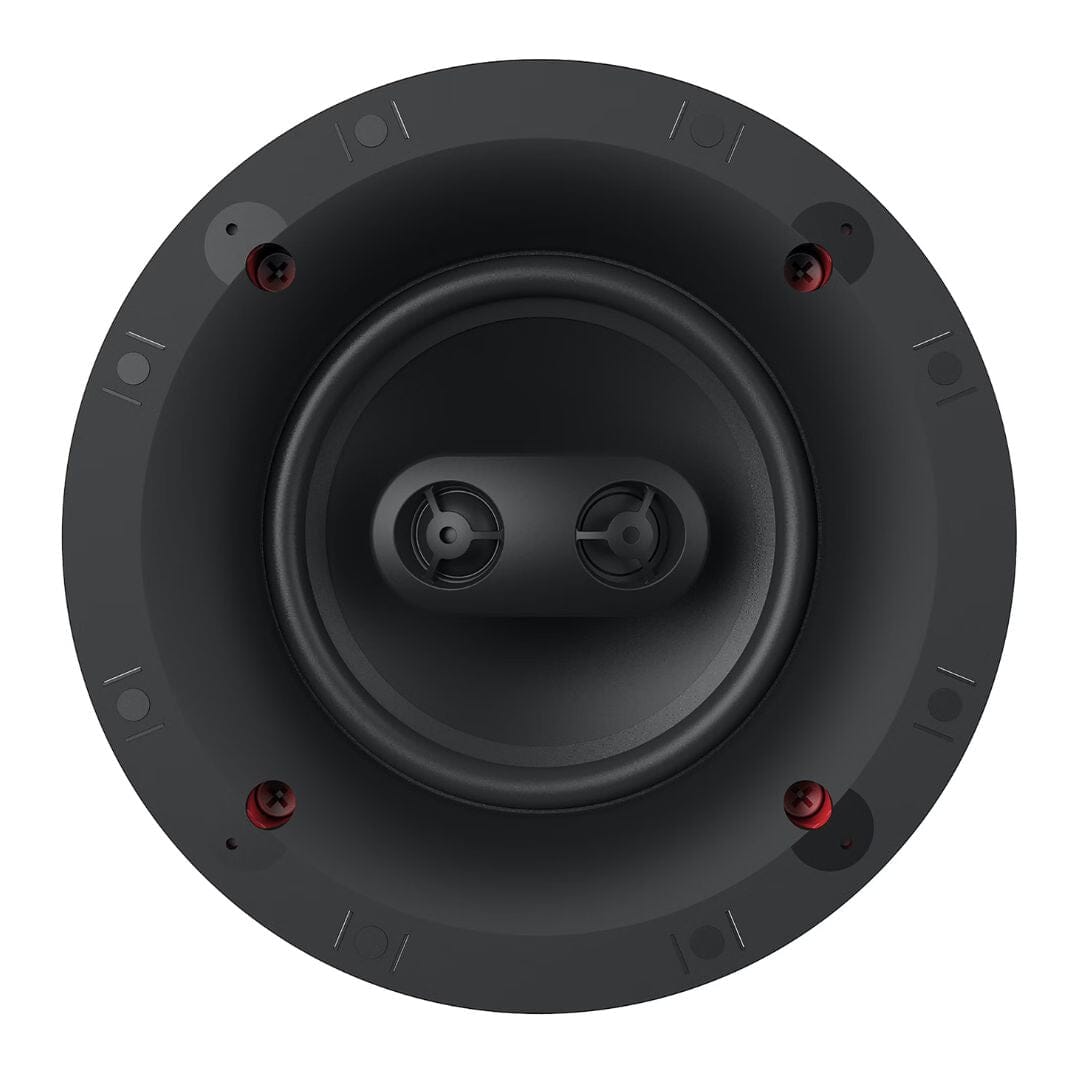

Klipsch DS-180CSM 8" In Ceiling Speaker Stereo (Each)

Using the same acoustic voicing and design principles of our more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance.

With a dual voice coil 8” Polypropylene woofer and two .75” Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren’t possible.

FEATURES

• 8” Polypropylene woofer
• Dual .75” Silk Dome tweeter

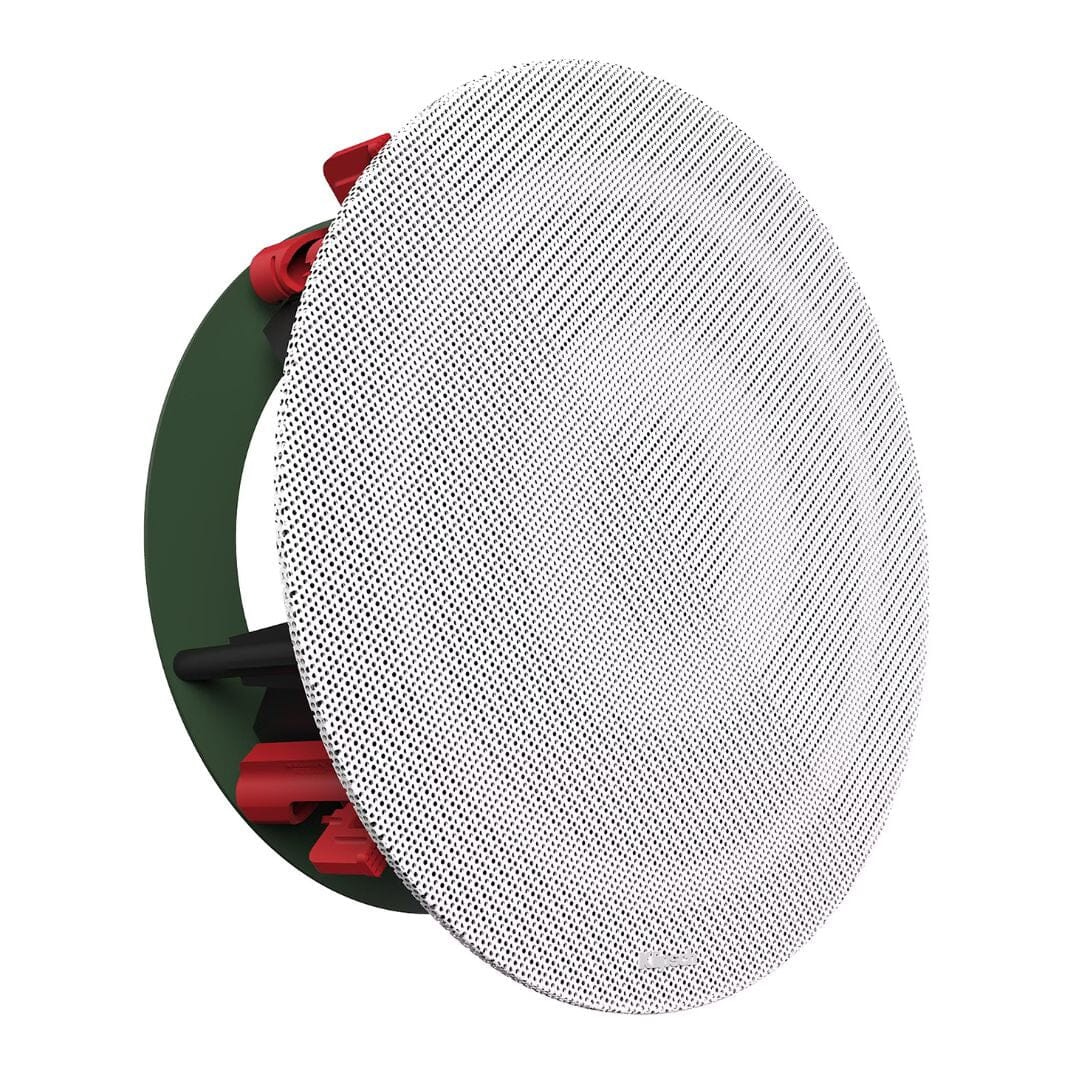

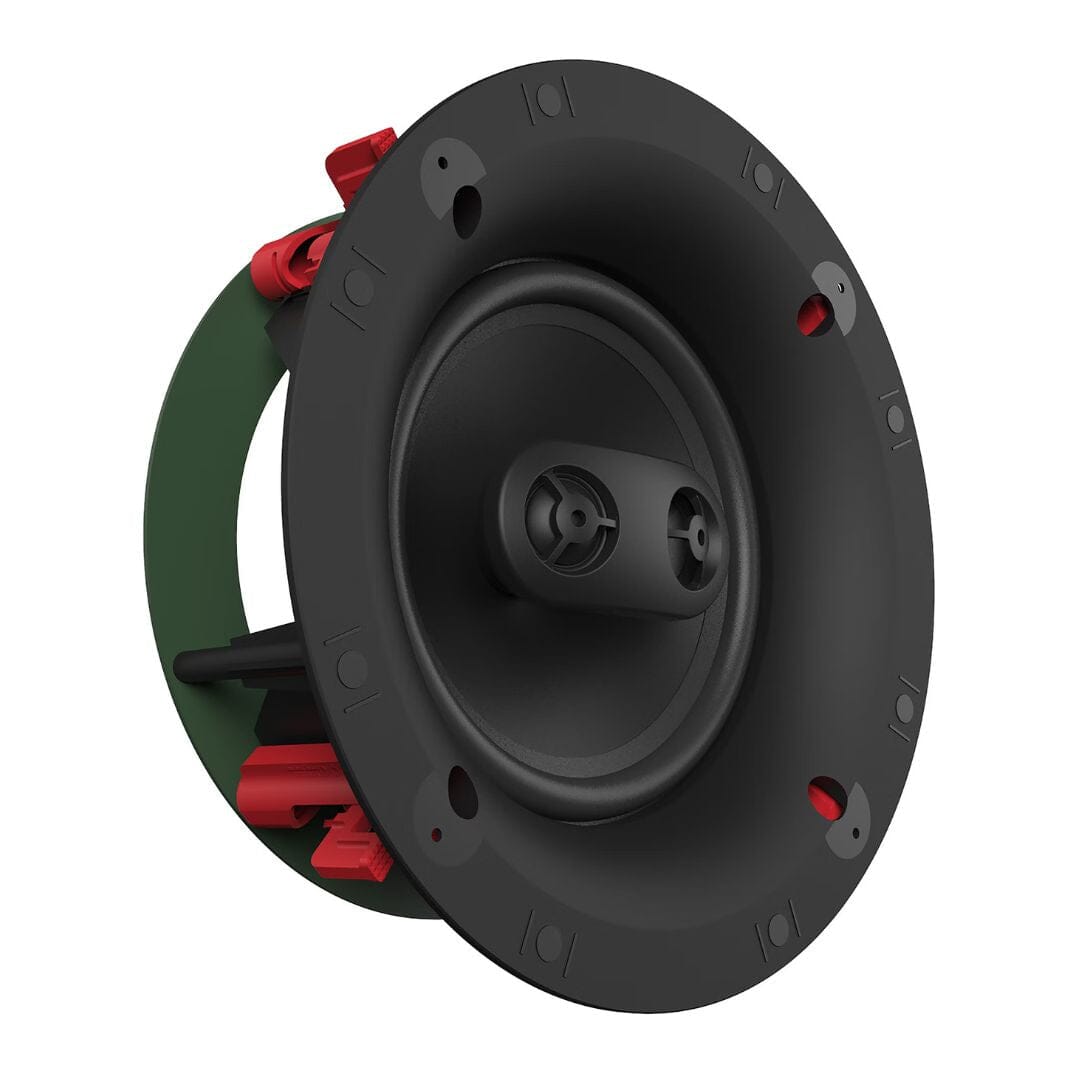

• Patented Sky Hook® Tool-Free Installation System

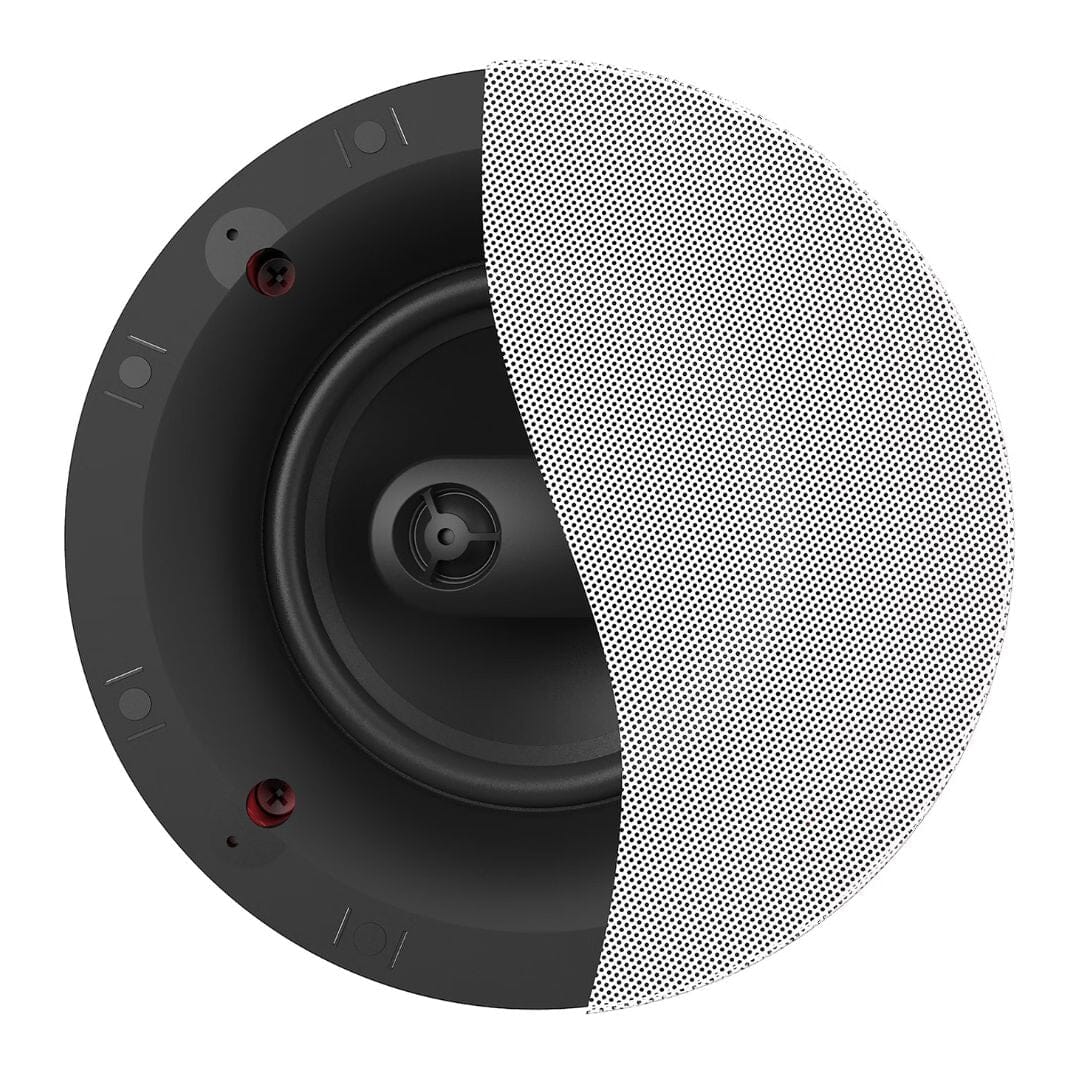

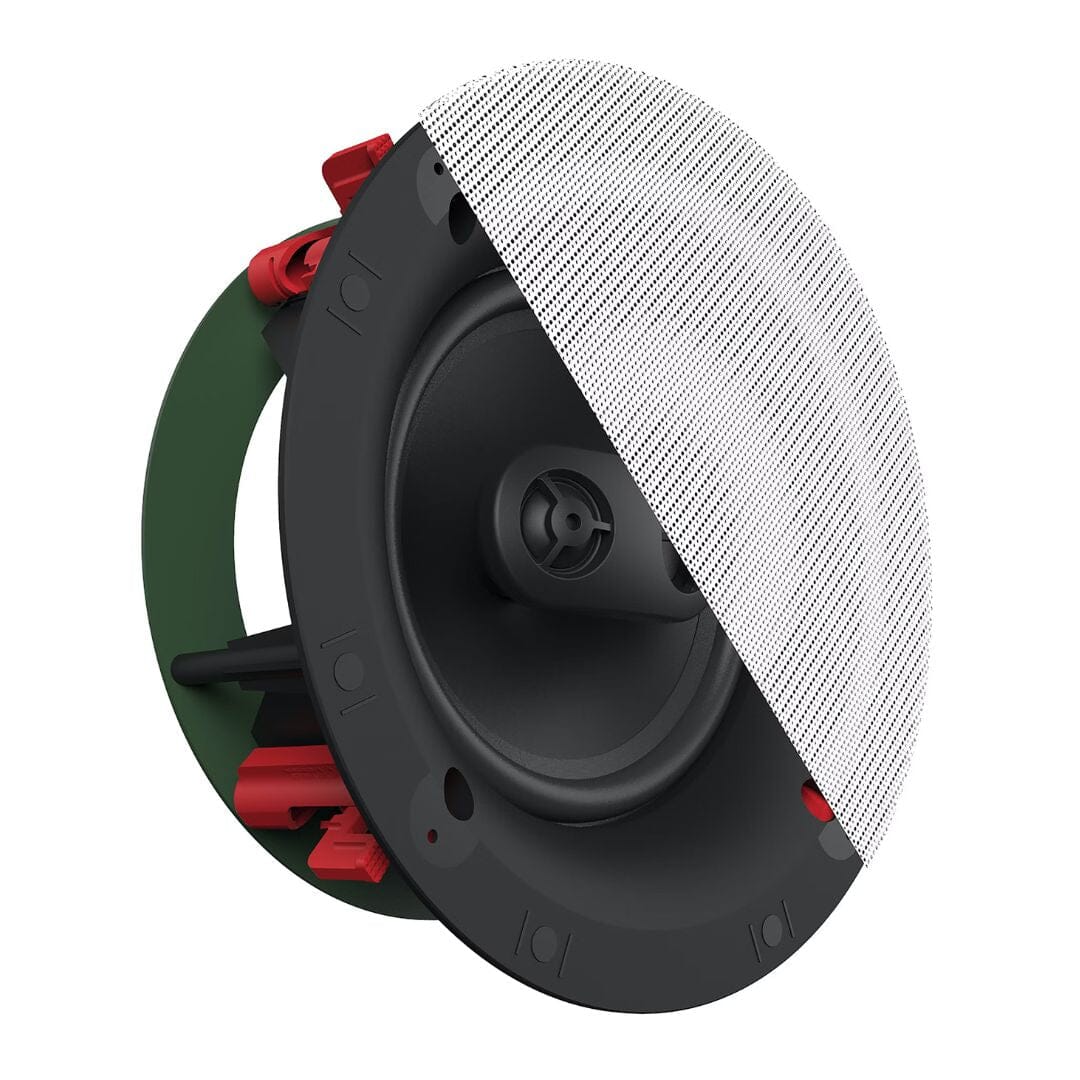

• Bezel-Free Magnetic Grille

• Frequency range:  55Hz-20KHz +/- 3dB
• High Frequency Driver: Dual .75" (1.9cm) Silk Dome Tweeters
• Low Frequency Driver: 8" (20.32cm) Polypropylene Woofer
• Sensitivity: 94 dB @ 2.83V / 1m
• Coverage Angle: 160°
• Power Handling: 50W RMS / 200W RMS
• Impedance: 8 Ohm Compatible
• Enclosure Material/Type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame White Paintable Grille
• Product Dimensions: 27.3 x 27.3 x 11.1 cm (WxHxD)
• Mounting Depth: 10.8 cm
• Cutout Dimensions: 24.3 cm
• Product Weight: 3.36 kg

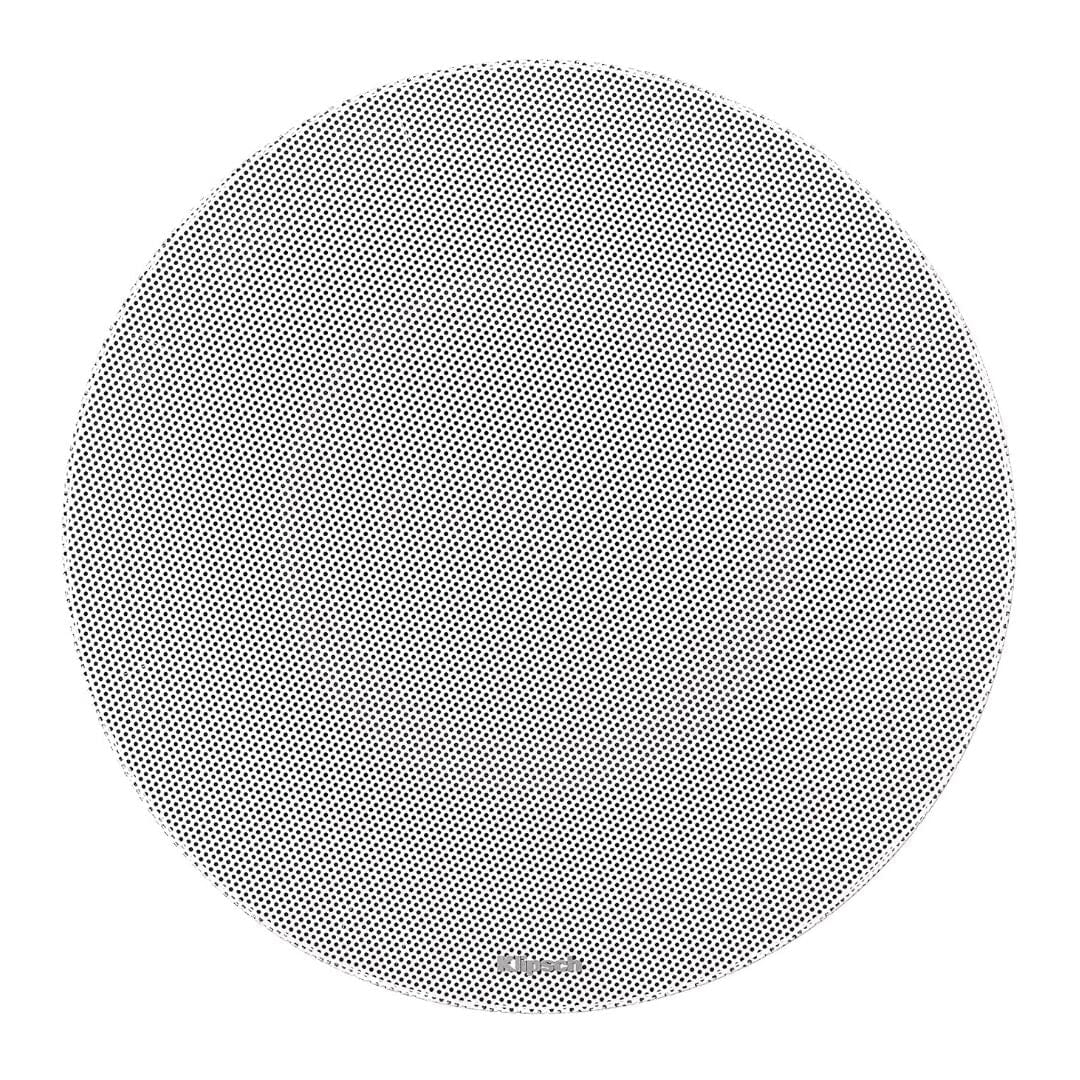

• Included in Box: Flat Paintable Magnetic Grille
• Install Kit: IK-800-C II (Sold Separately)
• Fire Rated Enclosure: ME-800-C (Sold Separately)
• Built From: 2017
