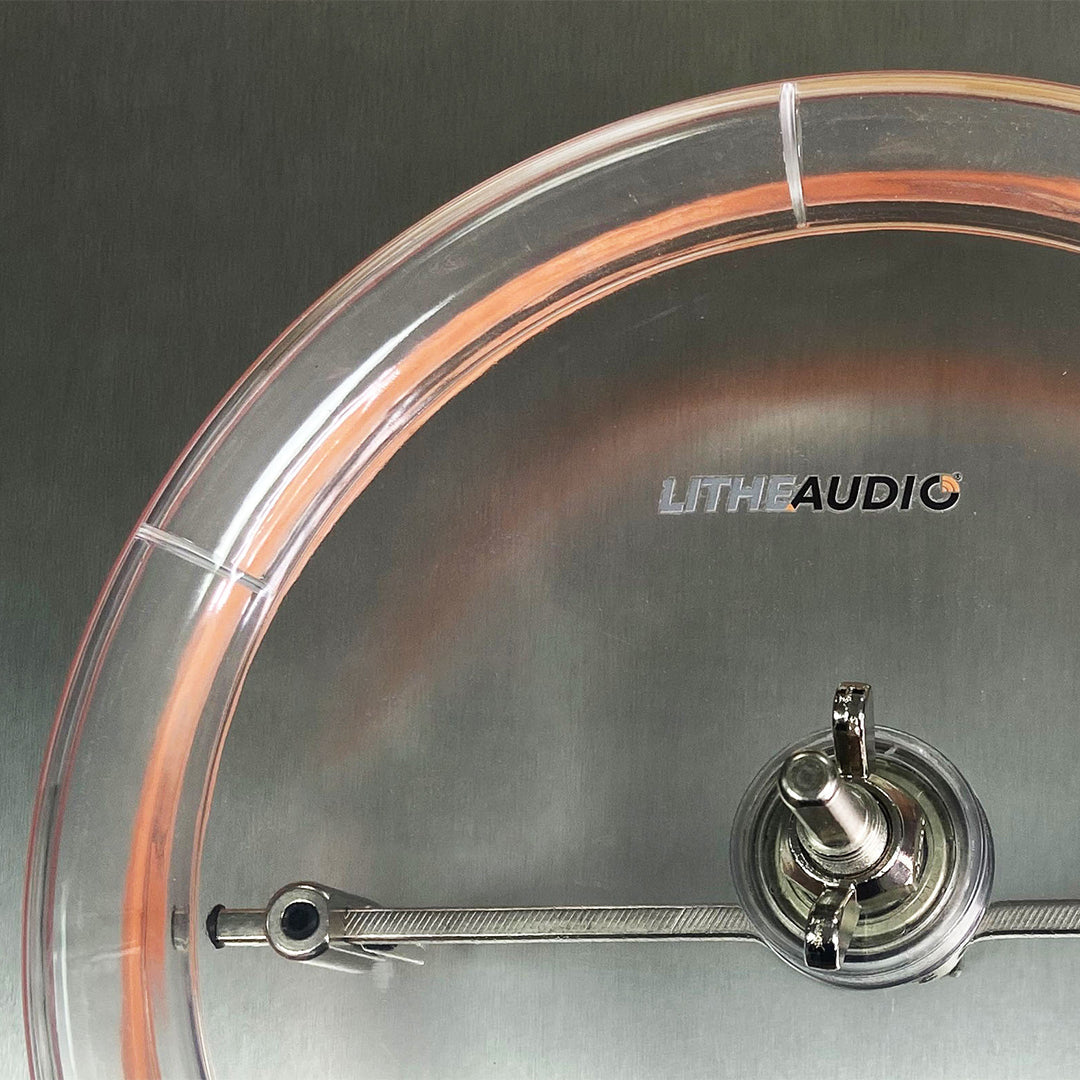

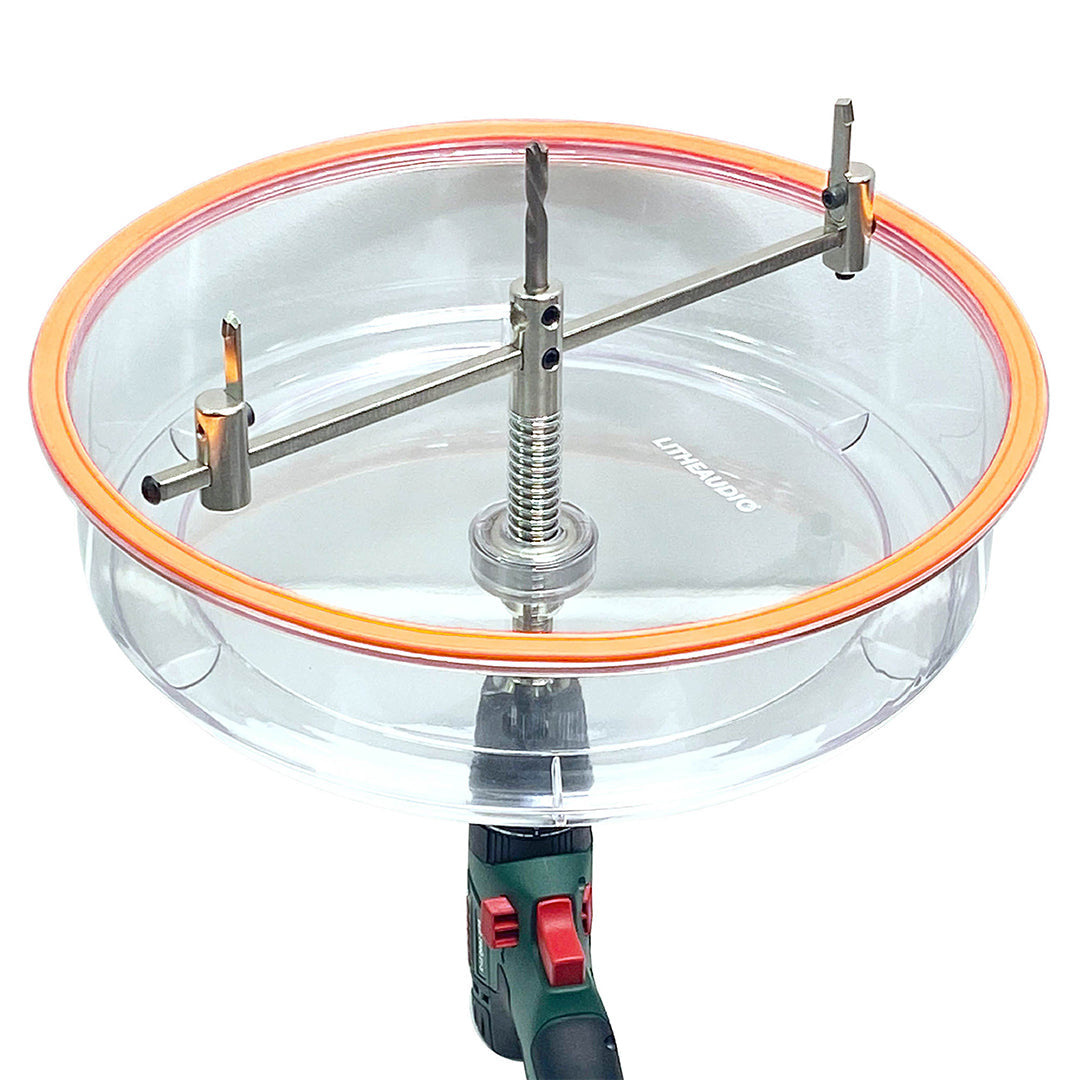

Lithe Audio Ceiling Speaker Hole Saw

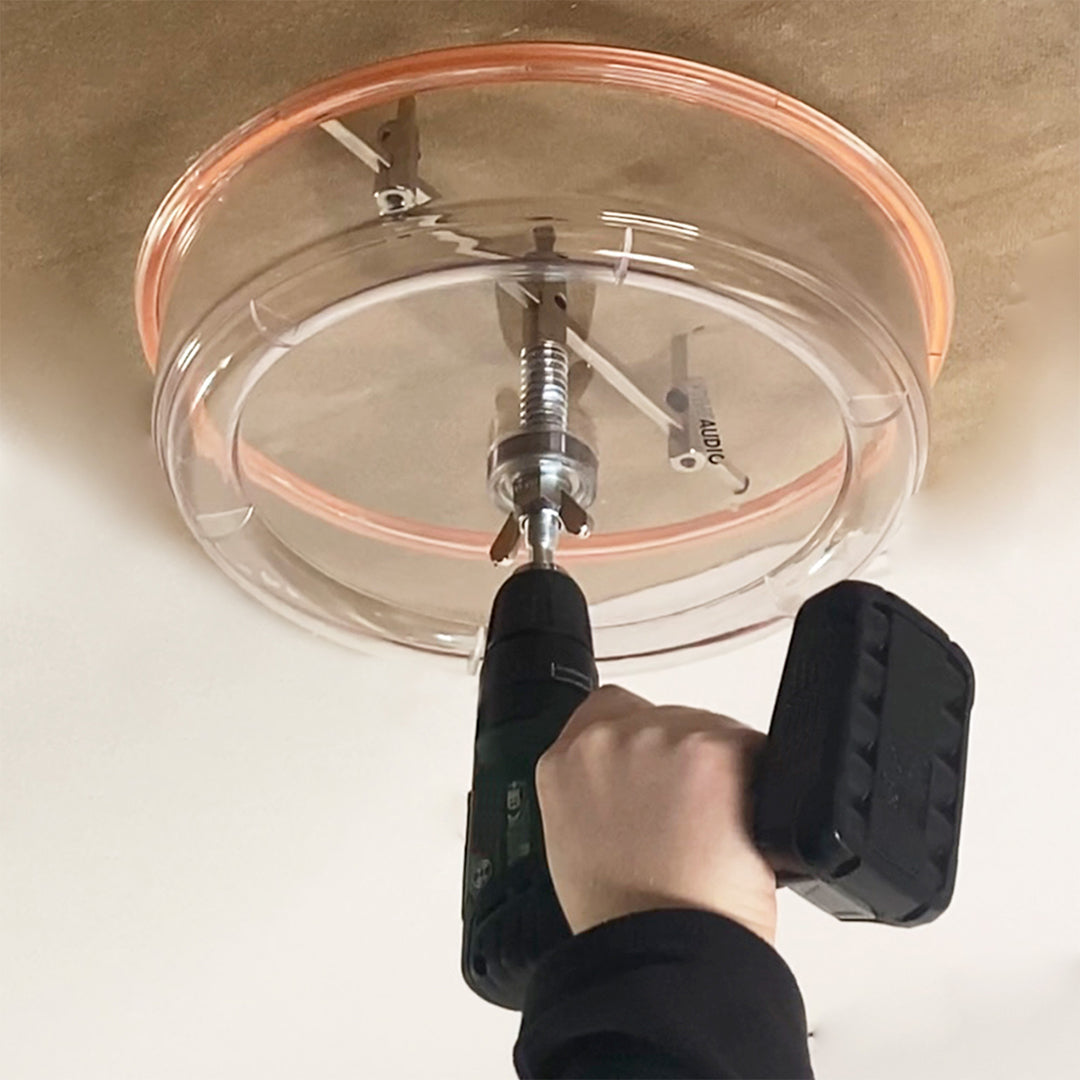

This adjustable hole saw from Lithe Audio is designed to make mess-free, accurate and fast circular holes for ceiling speakers (as well as downlight fittings).

This tool is capable of cutting round holes of 40mm - 300mm diameter with a max. cutting depth of cut - 30mm (max. 1mm in metal).

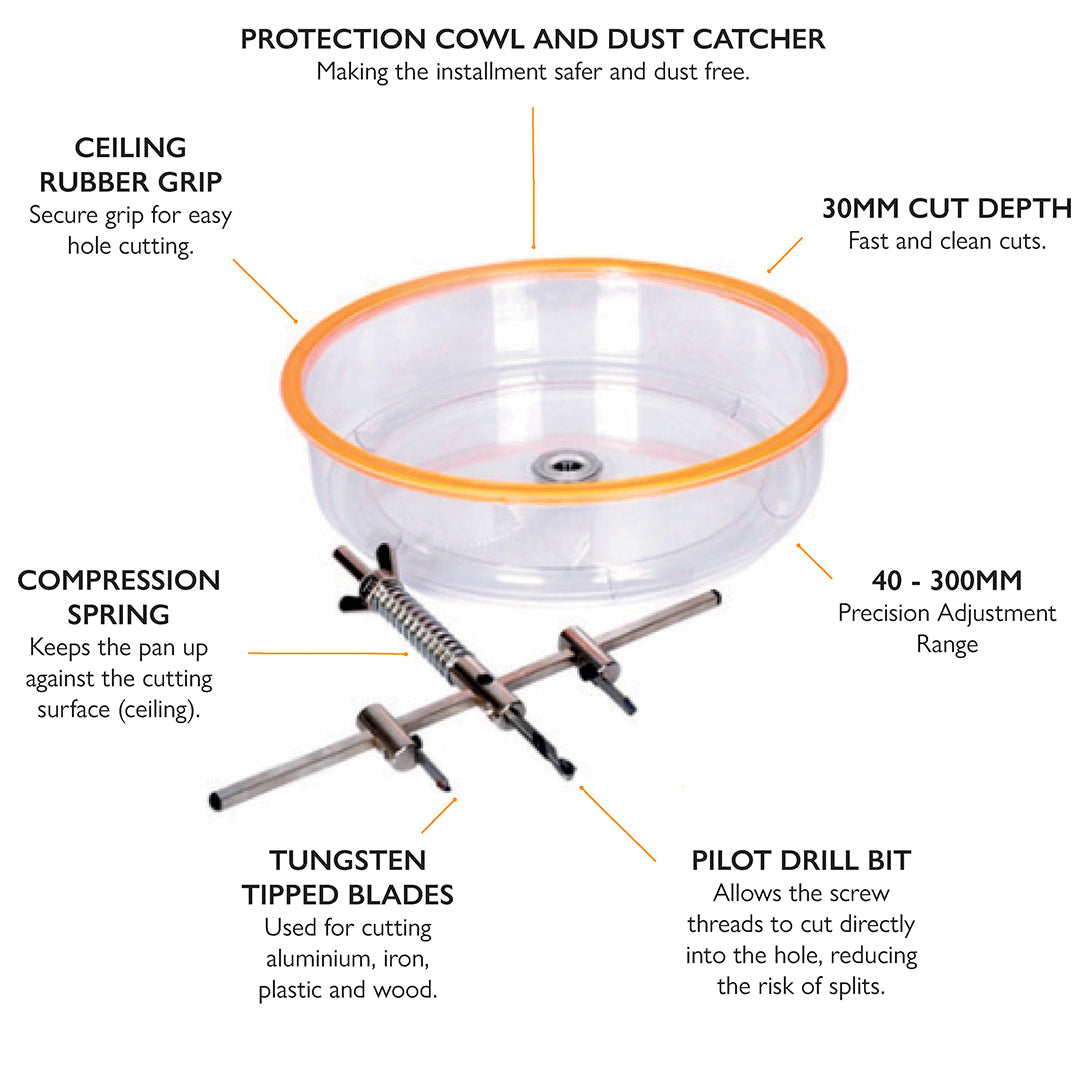

Features

• 2X TUNGSTEN CARBIDE TIPPED BLADES: For cutting aluminium, iron, plastic & wood.

• 2X HIGH STRENGTH STEEL BLADES: Used for the cutting of wood and plastics.

• 2X LOCKING KEY'S: Tightening and securing parts.

• ALLEN KEY: Used for adjusting the cutting blade holders.

• PILOT DRILL BIT: Use to drill hole through remaining thickness.

• PROTECTION COWL & DUST CATCHER: Making the installment safer and dust-free.

This tool is capable of cutting round holes of 40mm - 300mm diameter with a max. cutting depth of cut - 30mm (max. 1mm in metal).



Using the Allen Key supplied, adjust the cutting blade holders so that the cutting blades are at the desired diameter. The inner edge of the holders should line up with the appropriate graduation on the arm. It is important to note the orientation of the cutting blades - ensure they are correct. Follow our step-by-step guide in the instruction manual if you find yourself struggling.

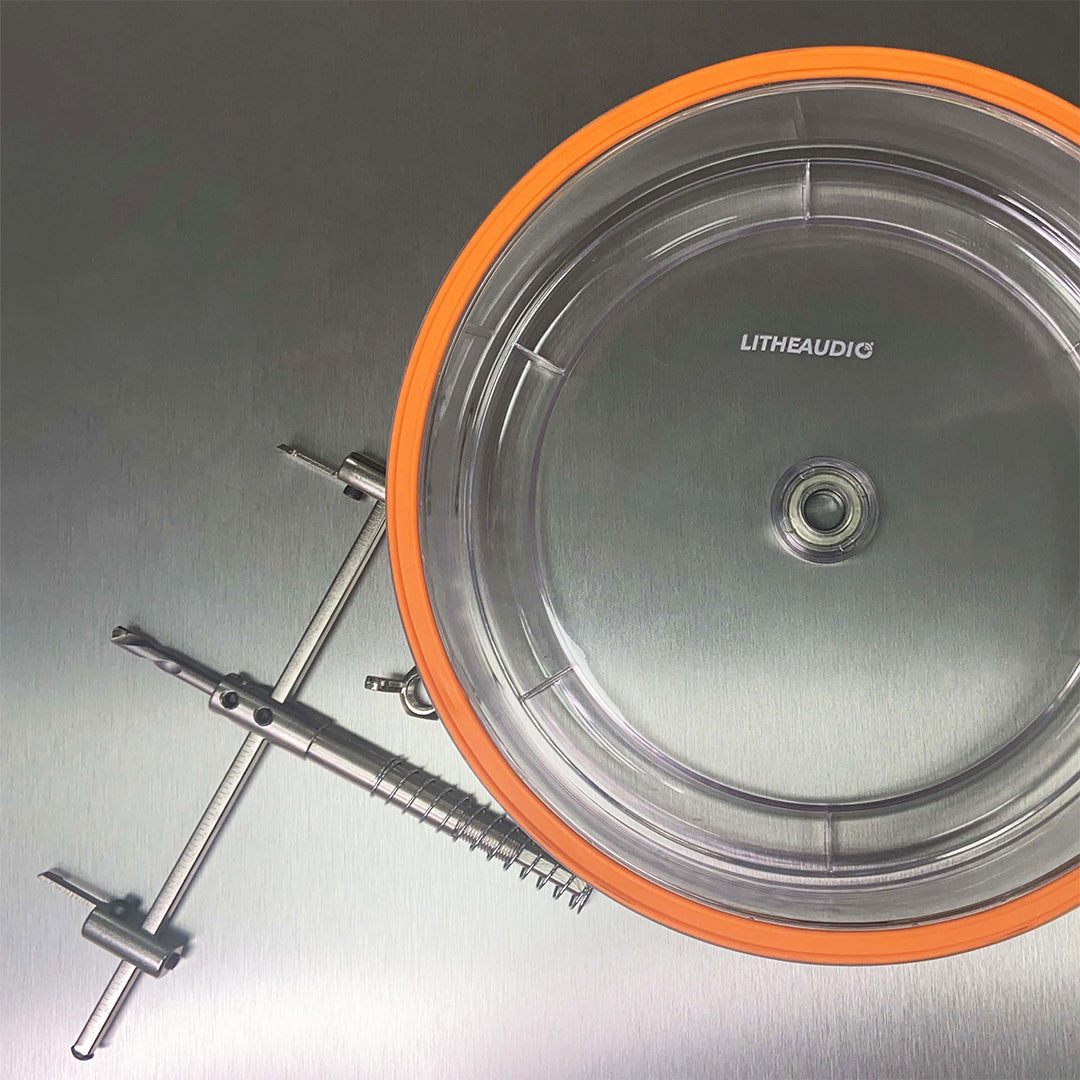

• 1 x Lithe Audio Ceiling Speaker Hole Saw Kit
• 1 x User Manual

*Drill not included

• Lithe Audio Ceiling Speaker Hole Saw Manual
