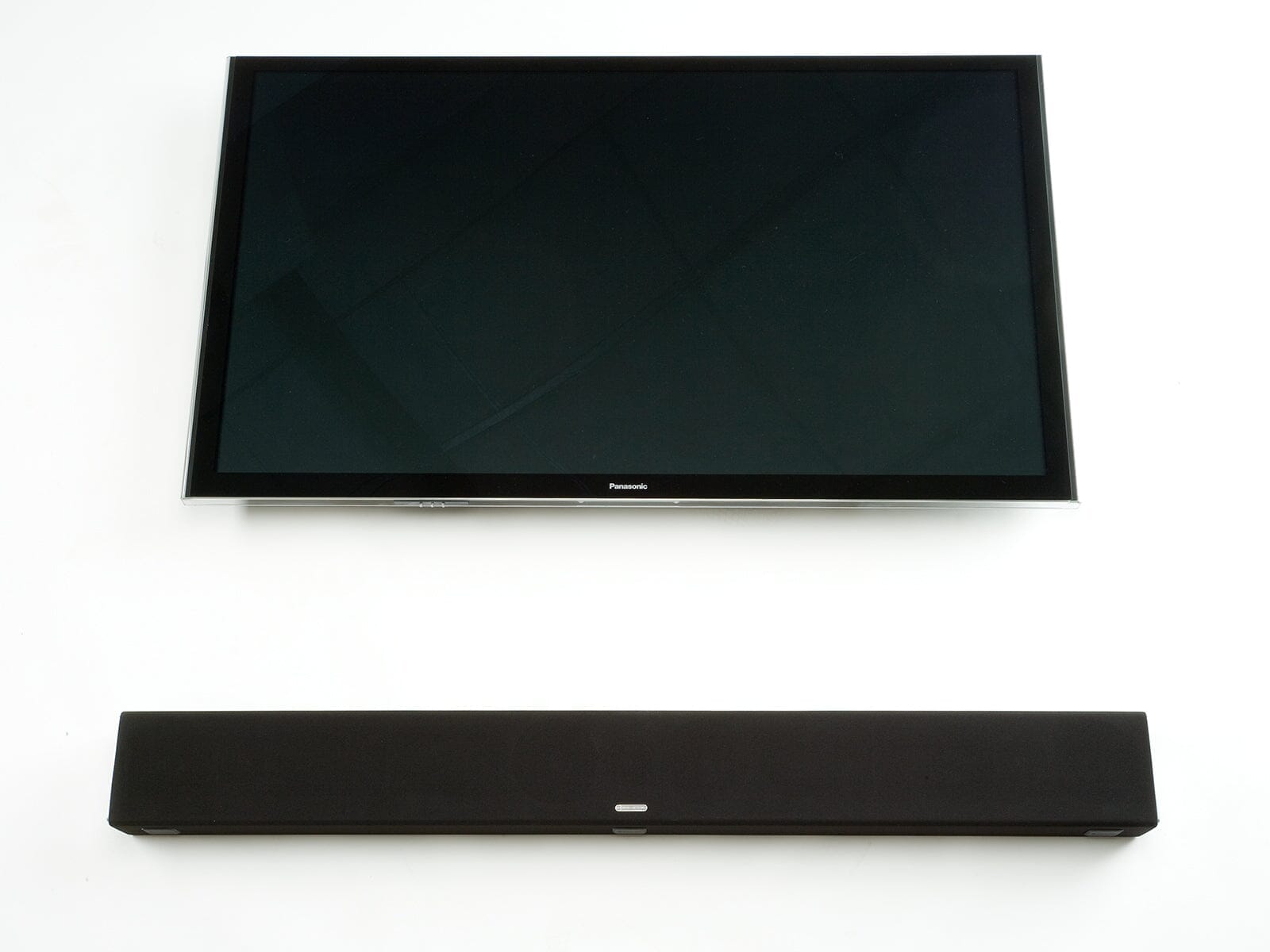

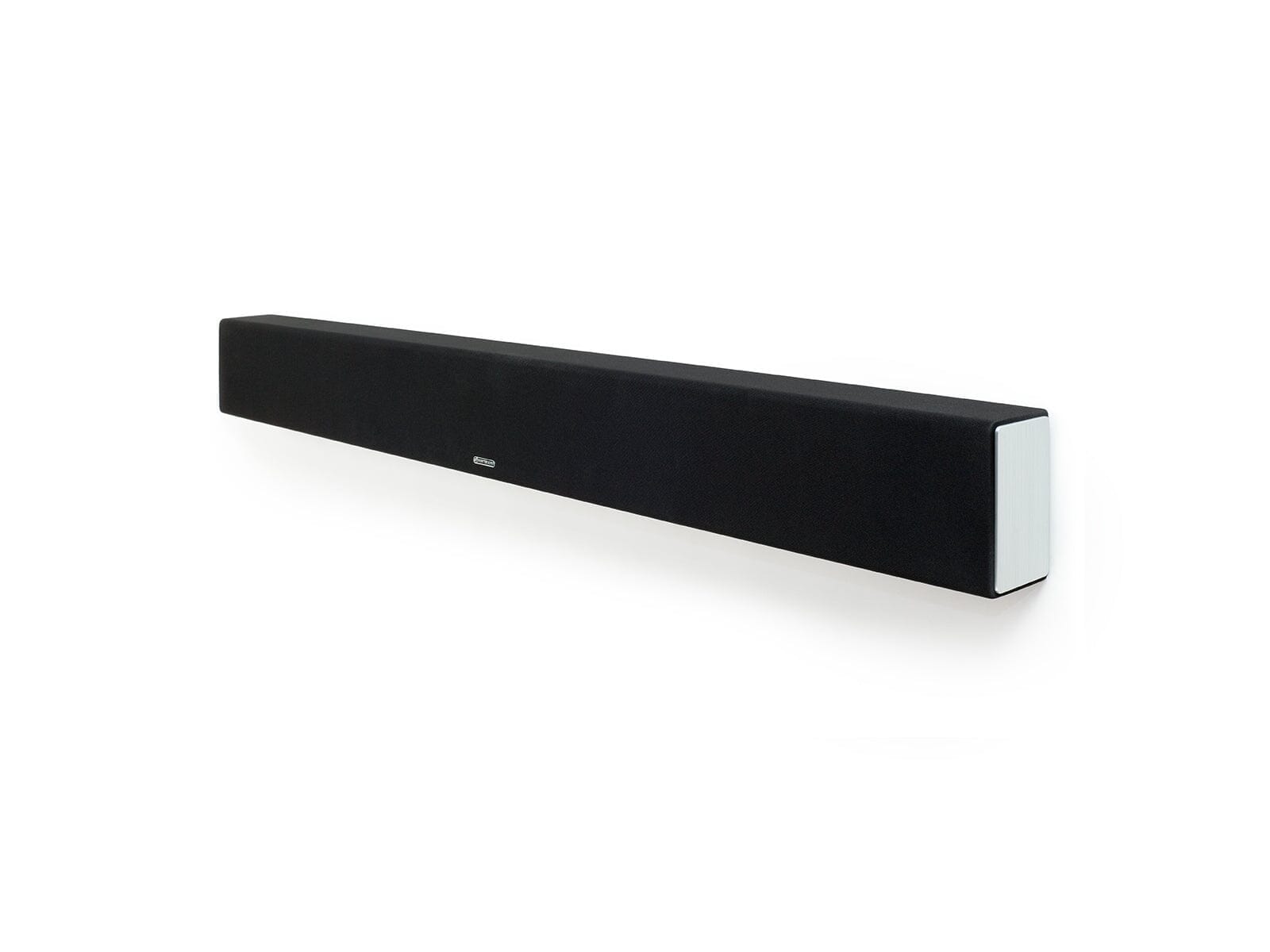

Monitor Audio SB-3 Passive Soundbar
All of the items on our website are shipped from our UK warehouse, based on the South Coast near Portsmouth.
We use the top couriers including DPD & Parcelforce in order to get your product to you ASAP.
UK MAINLAND DELIVERY
| FREE | |
|
Standard Delivery - Orders Over £50 Usually Delivered Within 2-3 Working Days |
FREE |
|
Standard Delivery - Orders Under £50 Usually Delivered Within 2-3 Working Days |
£3.99 |
|
Next Day Delivery (Order By 2PM) Usually Delivered Next Working Day |
£6.99 |
All orders are sent on a tracked & signed for service.
INTERNATIONAL DELIVERY
Unfortunately we are currently only shipping to mainland UK and are currently not shipping to Ireland.
We offer a 30 day returns period whereby you can return your product for any reason*
30 DAY RETURNS
If you do not need or want your item you can return it to our UK warehouse within 30 days from your purchase for a refund (excl. any premium shipping costs).
Returns must be sent back at your cost using a tracked & insured courier service. We recommend Parcel Monkey.
RETURNS ADDRESS:
|
FAO Returns TECH4 Unit P1, Pegasus Building |
* Products must be kept in original packaging in as new condition.
WARRANTY & FAULTY GOODS
All products on our website come with a 1 year return to base warranty (unless otherwise stated).
If your item has become faulty within this time frame, or if it has arrived damaged, please contact us for further information.
If your item is deemed faulty by our tech team then we will need it back for testing and repair or replacement under warranty.
When returning goods please ensure you include your full name, details and order number. We will reimburse shipping costs of up to a maximum of £15.
EXCHANGES
We do not offer exchanges however you are welcome to return your item for a refund and purchase the new item separately.
Product Overview
The Monitor Audio SB-3 passive soundbar features twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction.
This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.
In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience.
Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
FEATURES
- Individual C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel
- C-CAM gold dome tweeters per channel
- Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel
- Three separate driver arrays for left, centre, right channels in a single cabinet
- Optional dedicated wall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative.
What You Get
- 1 x SB-3 Passive Soundbar
Note: Requires AV Receiver to power (Sold separately) and BSB Wall bracket for wall mounting (sold separately)
Specifications
- Frequency Response (-3 dB): All Channels: 80 Hz – 30 kHz
- Sensitivity (1W@1M): Left and Right Channels: 84 dB, Centre Channel: 87 dB
- Nominal Impedance: 8 ohms
- Power Handling (RMS): Left and Right Channels: 40 W, Centre Channel: 80 W
- System Power Handling (RMS): All Channels: 100 W (High pass filter set to 100 Hz)
- Recommended Amplifier Requirements: All Channels: 30 – 100 W
- Crossover Frequency: All Channels: 80 – 120 Hz
- Maximum SPL: 104 dB (108.8 dB all channels driven)
- Bass Alignment: Left and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading, Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
- Drive Unit Complement: Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid drivers, 2 x 1" (25 mm) C-CAM Gold Dome tweeters, Centre Channel: 2 x 4" (100 mm) C-CAM cone bass/mid drivers, 1 x 1" (25 mm) C-CAM Gold Dome tweeter
- Cabinet Dimensions (H x W x D, Including Feet): 147 x 1307 x 93 mm (5⅞ x 51⅞ x 3¹¹/₁₆")
- External Dimensions (Including Bracket, H x W x D): 145 x 1307 x 100 mm (5¹¹/₁₆ x 51⅞ x 3¹⁵/₁₆")
- Bracket: BSB
- Weight: 9.1 kg (20 lb)
- Sold As: Single unit
