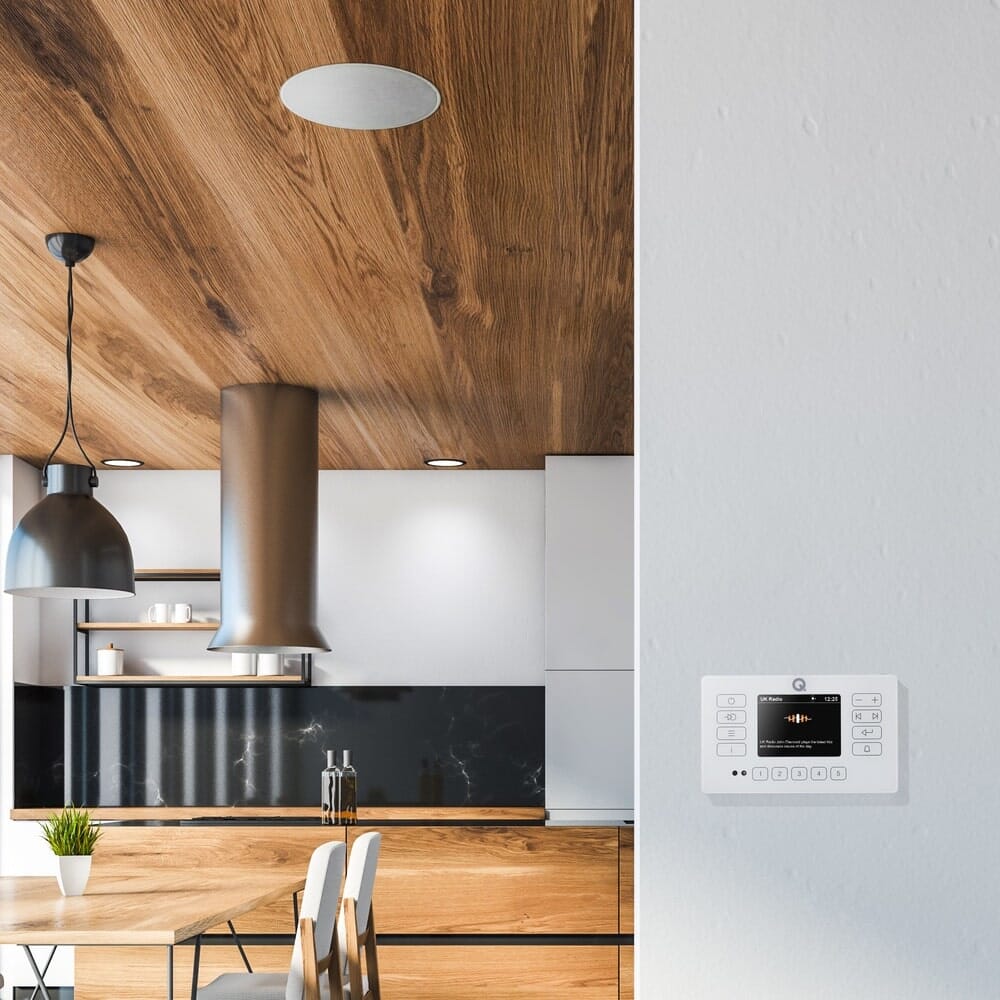

Q Acoustics E120 6.5" Bluetooth Ceiling Speaker System with FM/DAB Radio

Following on from the very popular Systemline E100, we now introduce the new replacement - the E120!

With a more powerful amplifier, a sleeker and more stylish wall panel with colour screen, optical audio input and subwoofer output this is set to be the most popular in wall HiFi systems on the market.

The E120 combines style with hifi performance. The amplifier is more powerful than ever and can comfortably drive higher quality speakers for maximum sound quality.

Want the ultimate system? Add an active subwoofer via the wired subwoofer output!

FEATURES

• DAB+ / FM RADIO: Enjoy your favourite DAB+ and/or FM radio stations in high quality.

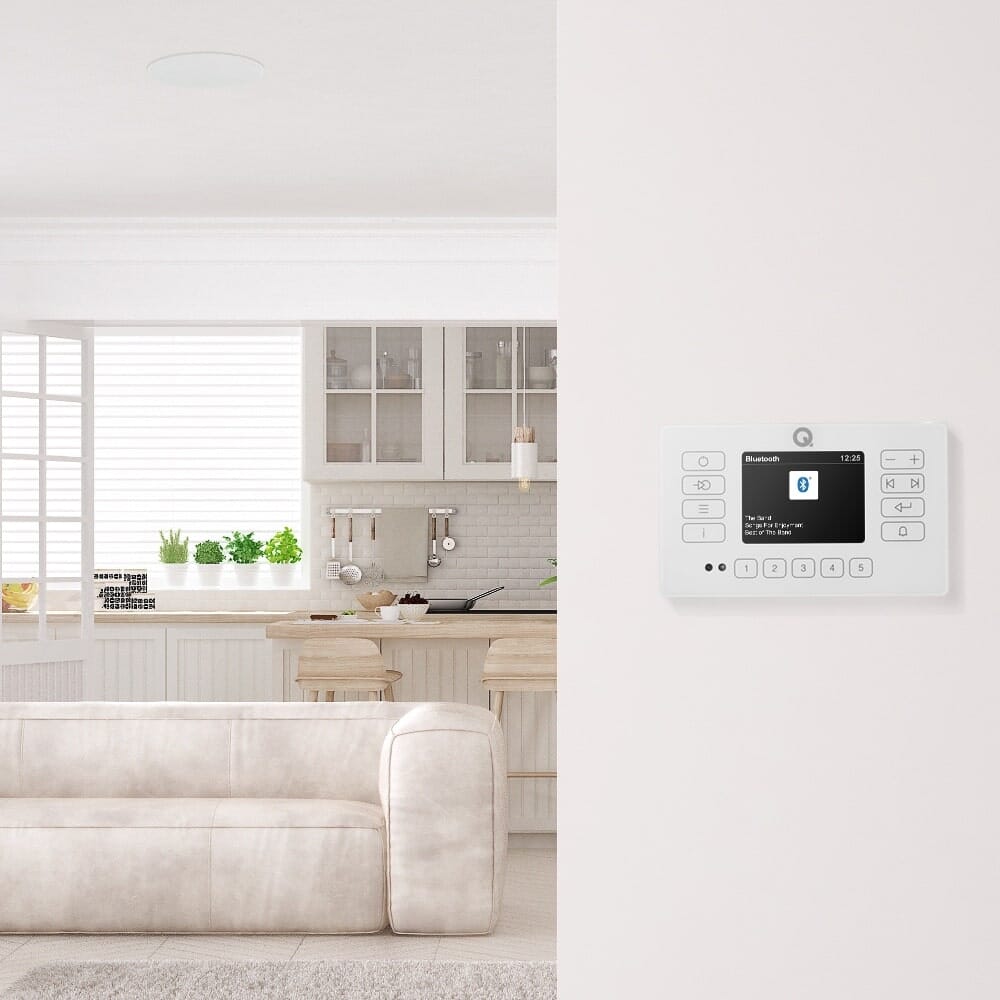

• BLUETOOTH: Connect your smart phone, tablet or computer via Bluetooth to enjoy your music. You can also connect an Amazon Alexa or Google Home via Bluetooth for hands free playback.


• AUX / OPTICAL INPUT: The E120 is the first in wall system on the market to support a direct digital input via a 3.5mm optical input. Now you can easily connect your television or digital audio system to the E120 without the need for a costly DAC. Simply plug it in with an optical cable.


• SUBWOOFER OUTPUT: Another first for the E120 is the built in subwoofer output. Simply connect an active subwoofer to the amplifier using a 3.5mm to RCA subwoofer cable and add significant depth and warmth to your music.

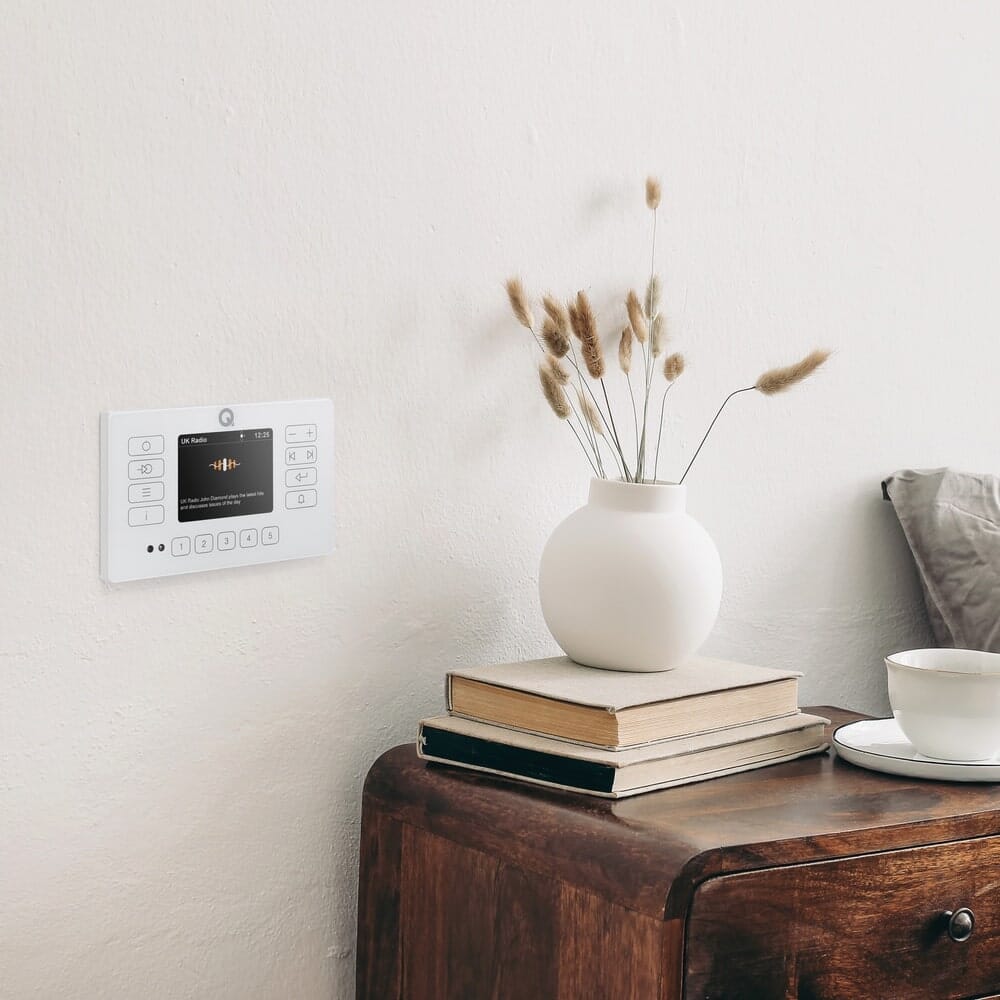

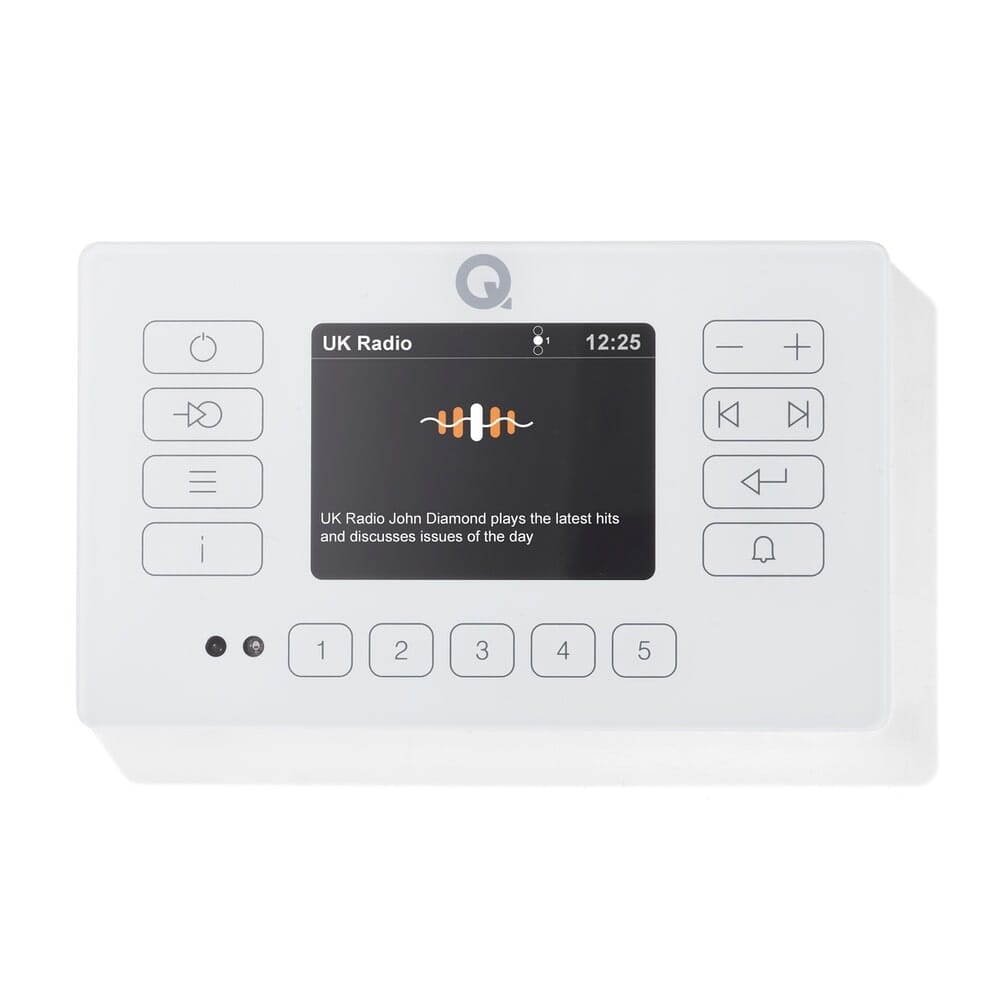

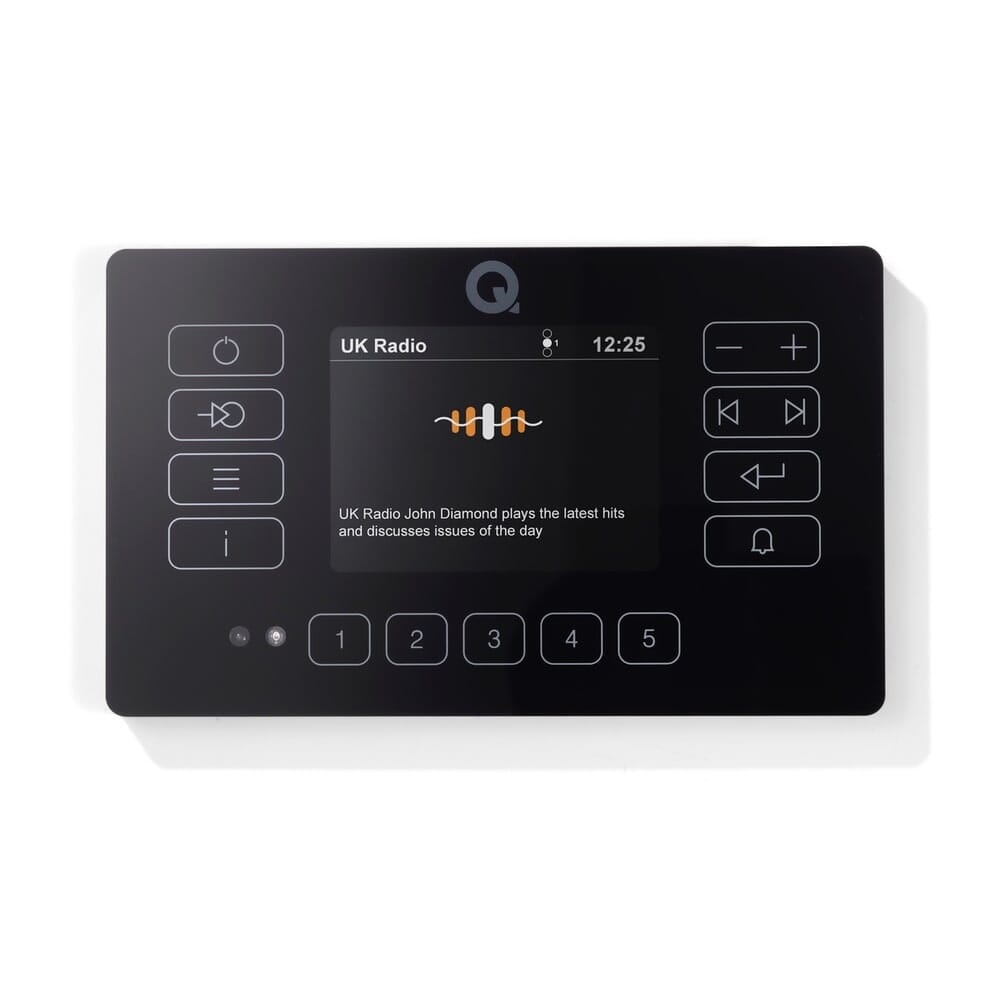

• COLOUR SCREEN: A high quality colour screen displays radio artwork and the touch sensitive buttons make it easy to control your music and volume.

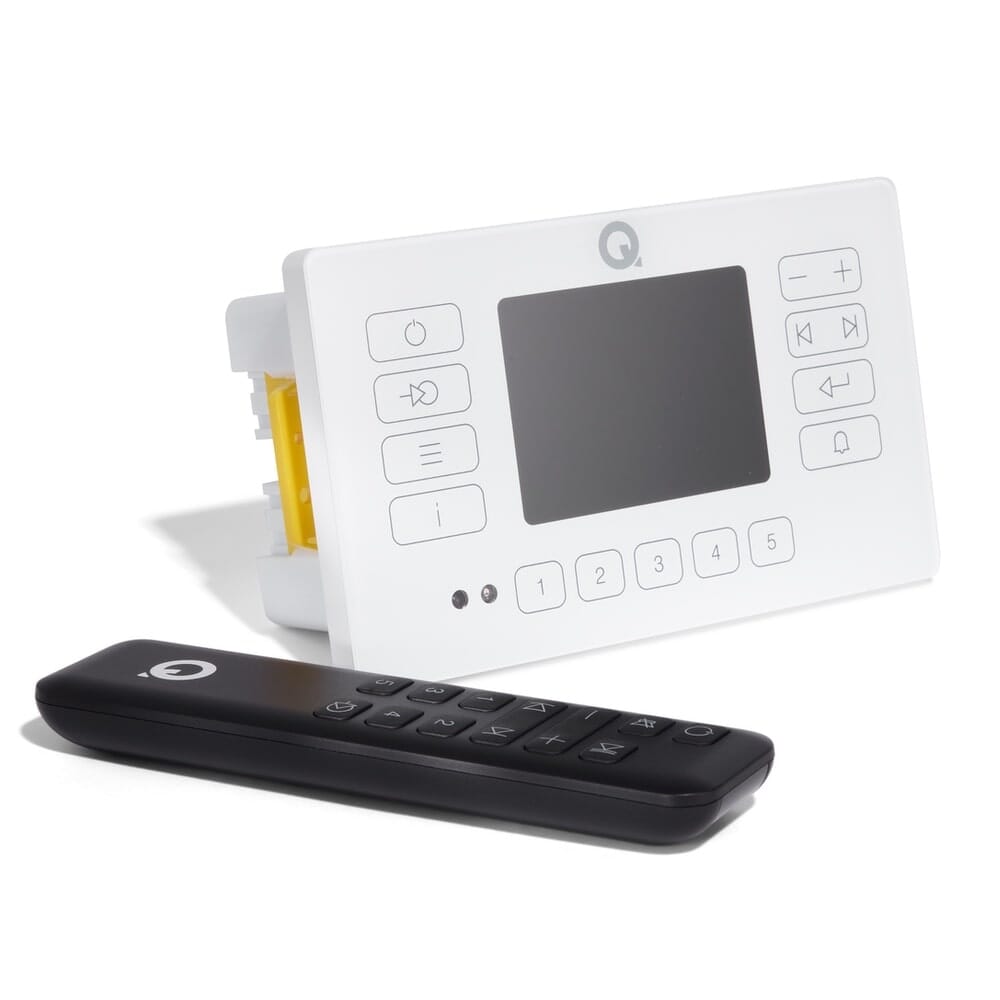

• REMOTE CONTROL: You'll get two remote controls as standard, the standard hand held remote and also a fully waterproof remote control which you can use from the bath!

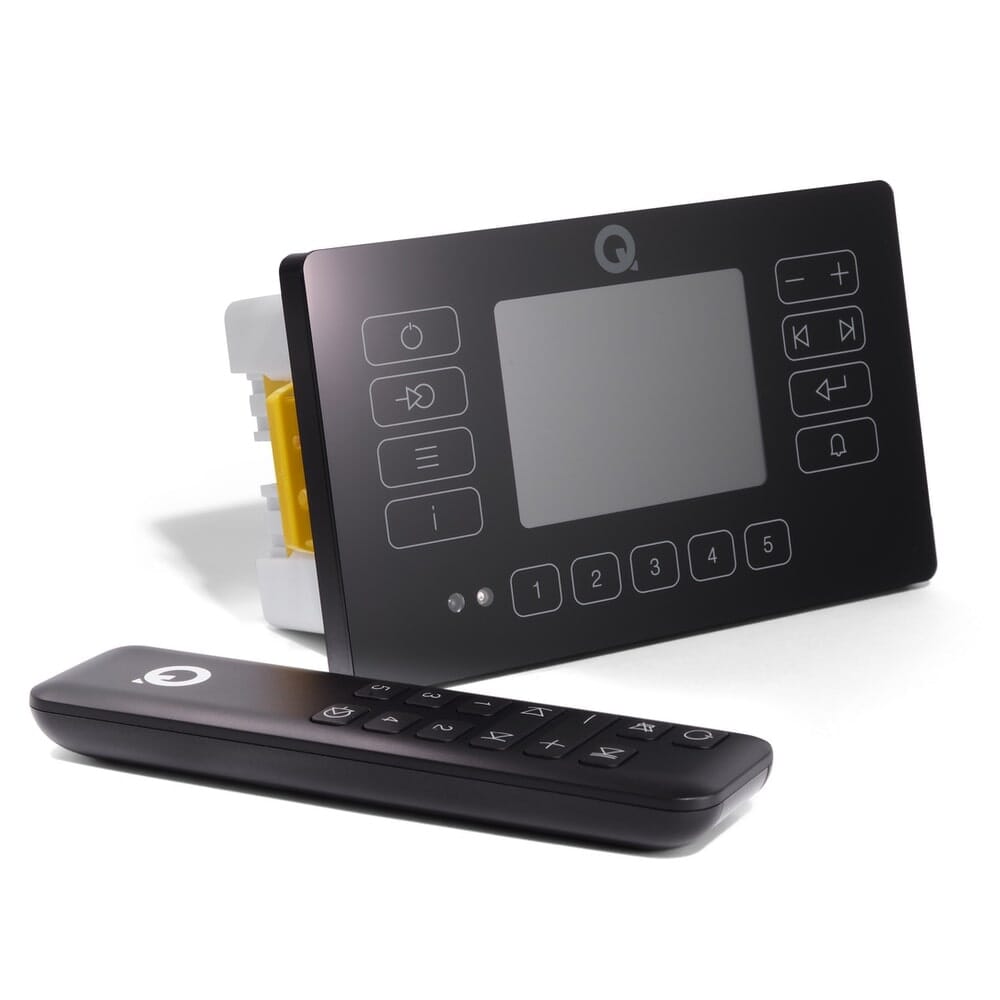

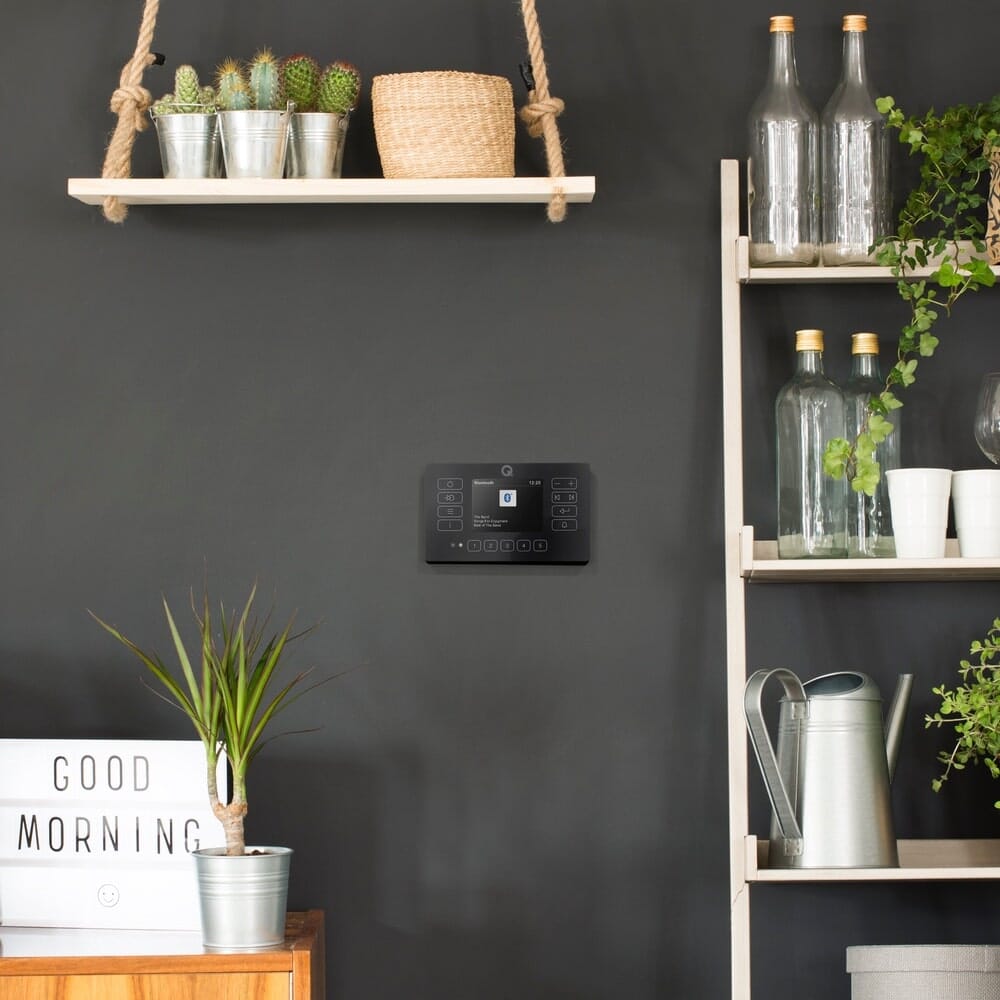

• BLACK OR WHITE: The new E120 is available in high gloss black or high gloss white to match any interior. The nicely curved corners and low profile make it discreet and will blend nicely with any interior.


• IP RATED: Now with an IP54 rating you can safely install the E120 inside zone 3 of your bathroom.

AMPLIFIER

• Audio Sources: DAB / DAB+ / FM with RDS
• Bluetooth: Version 5.0, A2DP
• Analogue Input: Type: 3.5mm Stereo, Sensitivity: 350mV, Max Level: 1.5v, Impedance: 10k Ohm
• Optical Input: Type: mini TOSLINK, Resolution: 16 Bit 48 kHz
• Speaker Outputs: Left & Right, Stereo or Dual Mono
• Analogue Line: Type: 3.5mm Stereo, Modes: Fixed or Variable, Max Level: 670mV
• Amplifier: Type: Class D, Continuous Power: 2 x 25W @ 6 Ohms, THD: 0.07% @ 1W / 0.2% @ rated power, SNR: >75dB @ Rated Power, Frequency Response: 20Hx - 20 kHz +/- 1 dB
• IP Ratings: E120 Wall Panel: IP54, Splash Proof Remote: IP54
• Control: Touch Sensitive Buttons, Infrared Remote Control, Bluetooth AVRCP v1.6 Play, Pause, Skip, Track, Artist, Album Name
• Menu Languages: English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish
• Alarms: x2 Once, Daily, Weekdays, Weekends
• Power Supply: Input: 100 - 240V AC 50/60Hz, Output: 22V DC 1.5A, Dimensions: (HxWxD) 30mm x 50mm x 115mm
• Power Consumption: Typical: 10W, Standby: <1W Deep Standby: <0.5W

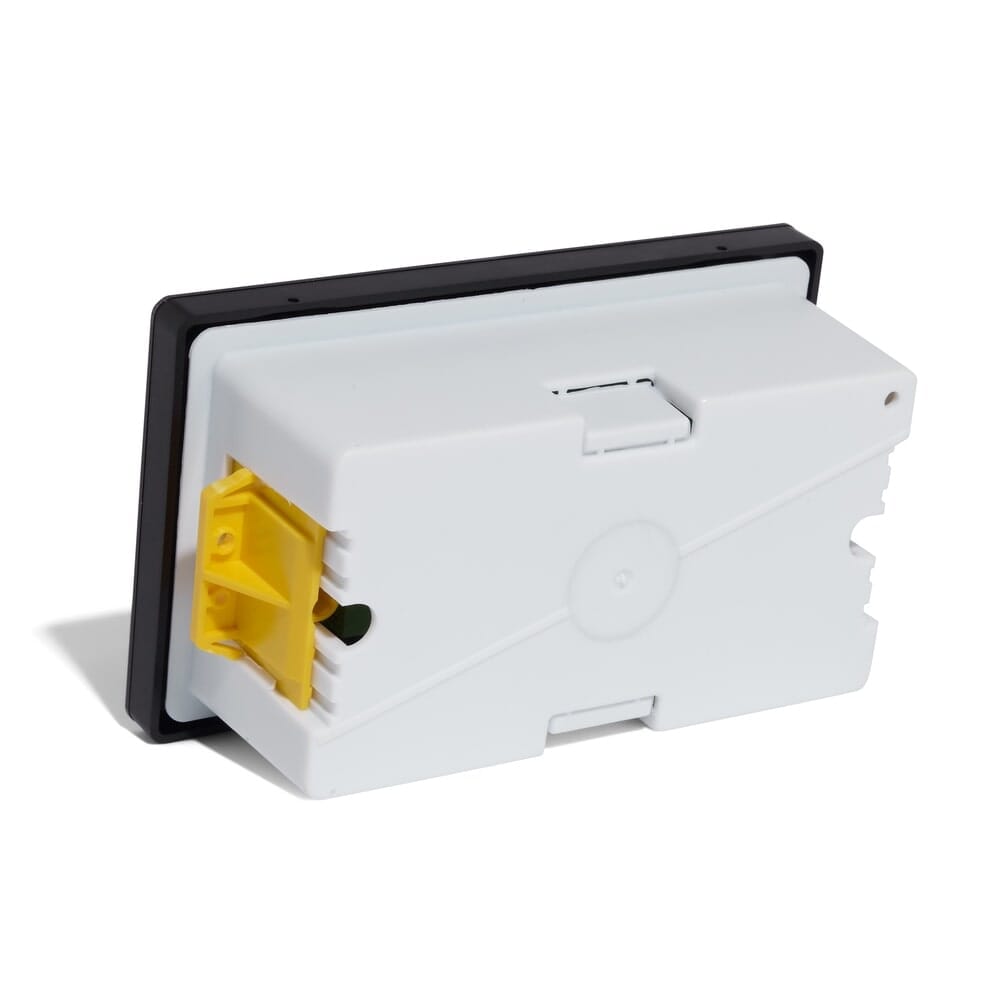

• Wall Panel: Net Weight: 0.251kg, Dimensions: (HxWxD): 91mm x 151mm x 33mm
• Speaker Cable: Gauge: 19AWG, Length: 2 x 7M
• DC Extension: Gauge: 16AWG, Length: 5M, Connectors: 5.5mm x 2.5mm DC male / 5,5mm x 2.5mm DC female

SPEAKERS (STANDARD)

Brand = Q Acoustics

Model = QI65CB

• Woofer diameter: 6.5"
• Cutout size: 203mm
• Power handling (program): 50W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 93
• Response(Low freq.) -3dB Hz: 77 - 20,000
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

SPEAKERS (HIGH DEFINITION)

Brand = Q Acoustics

Model = QI65C

• Tweeter: Swivel
• Tweeter diameter: 0.75" (19mm)
• Woofer diameter: 6.5"
• Cutout Size: 203mm
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 89
• Response(Low freq.) -3dB Hz: 75
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

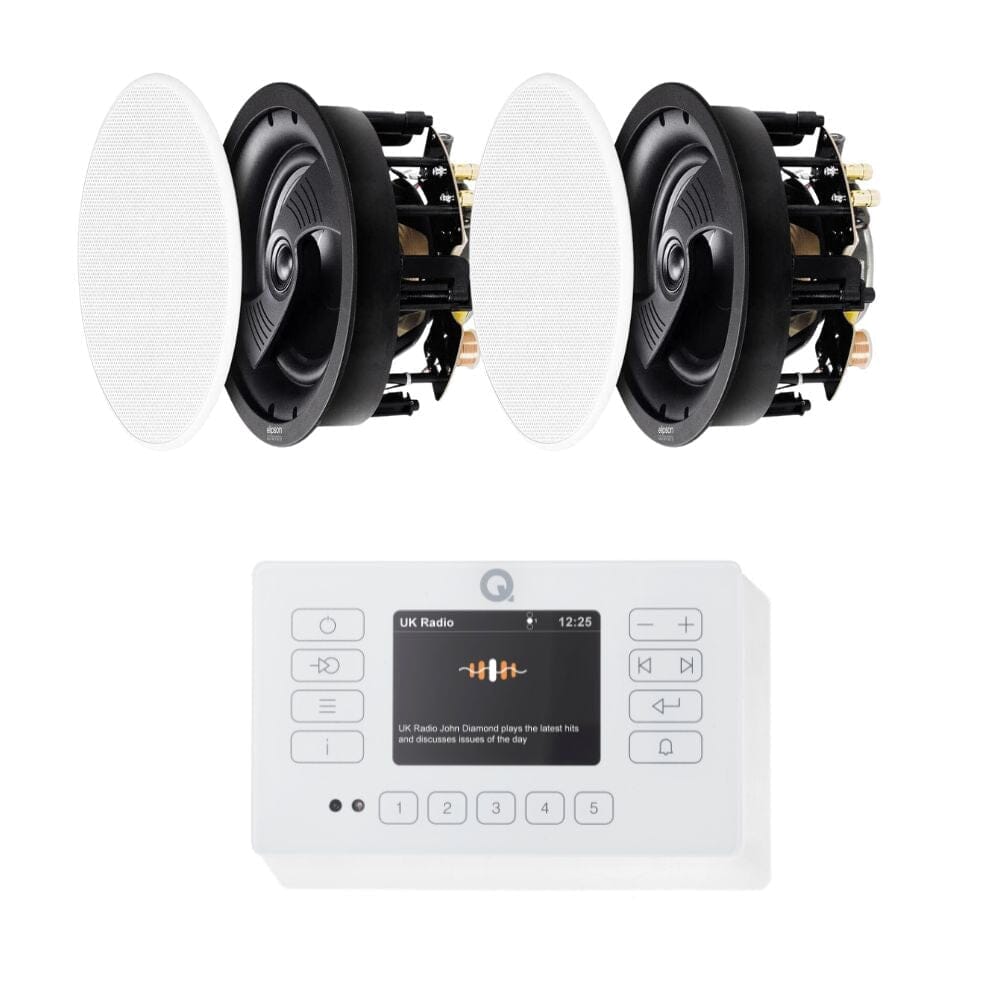

• 1 x E120 Wall Panel (Black or White)
• 2 x 6.5" Ceiling Speakers
• 2 x 7m Speaker Cables
• 1 x Power Supply
• 1 x 5M DC Extension Cable
• 1 x FM/DAB Antenna
• 1 x 5M Antenna Extension Cable
• 1 x Waterproof Remote Control
• 1 x Premium Remote Control
• 1 x Instruction Manual
