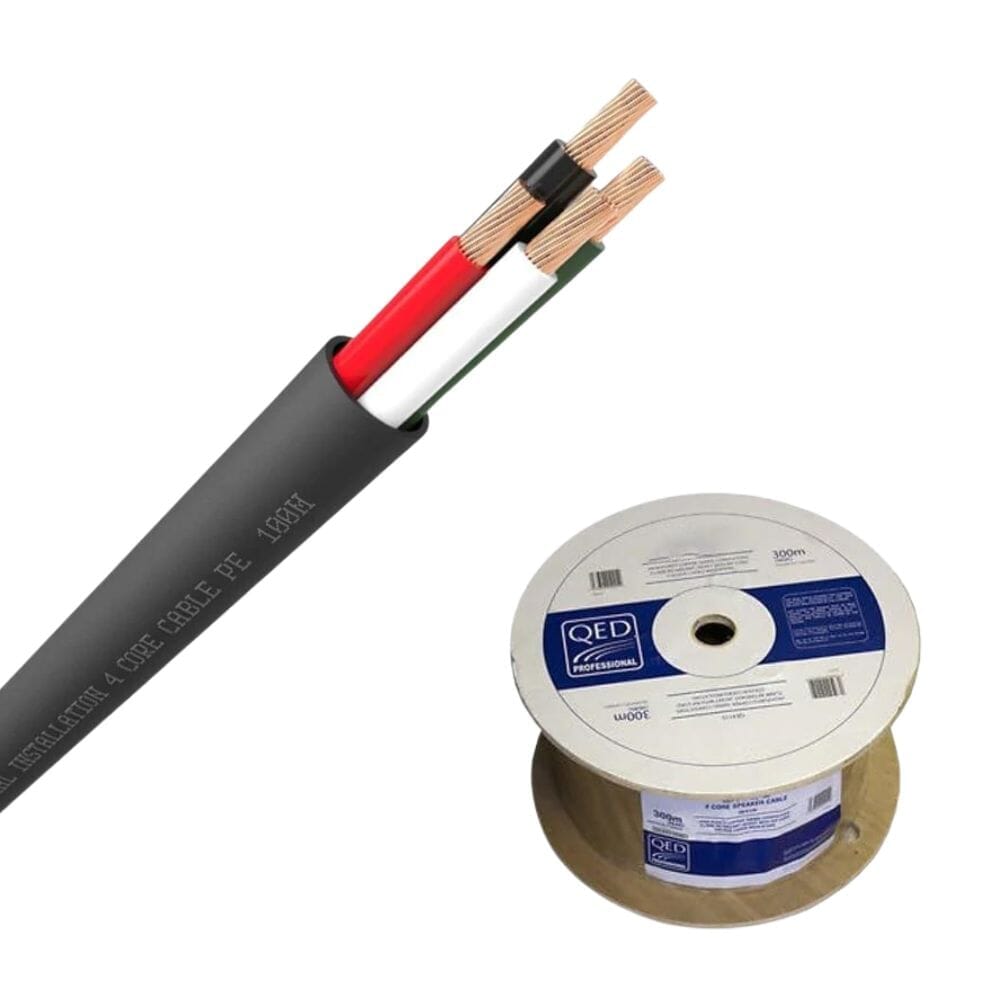

QX16/2 and QX16/4 PE are high performance and exceptional quality installation speaker cables with a water and UV resistant PE outer sheath.

They are designed to deliver excellent levels of performance in most outdoor installations with no additional conduit required.

Features

• Large cross-sectional area of high purity copper conductors


• Ensures good performance levels are maintained even on longer runs


• Sequentially metre marked - counting down so you always know what you have left on the reel or in the box


• Water and UV resistant PE Outdoor outer jacket


• Can be buried


• Meets or exceeds UV resistance ISO 4892-2


• Colour-coded conductor sheaths


• No additional conduit required saving on installation costs


• Full test report available on request


• RoHS2 Compliant


• Supplied on 300m (984ft) reel

Specifications

Conductor Size: 16 AWG

Conductor Construction: 30/0.26

Conductor Resistance: 13.3 Ω/km

Conductor Cross-sectional Area: 2.0 mm2

Insulation Colour: 16/2 Red, Black, 16/4 Red, Black, White, Green

Dielectric Strength: 600 kV AC

Jacket Material: PE

Outside Diameter: 16/2 6.20 mm, 16/47.20 mm

Jacket Colour: Black

Weight: 16/2 58 kg/km, 16/4 98 kg/km
