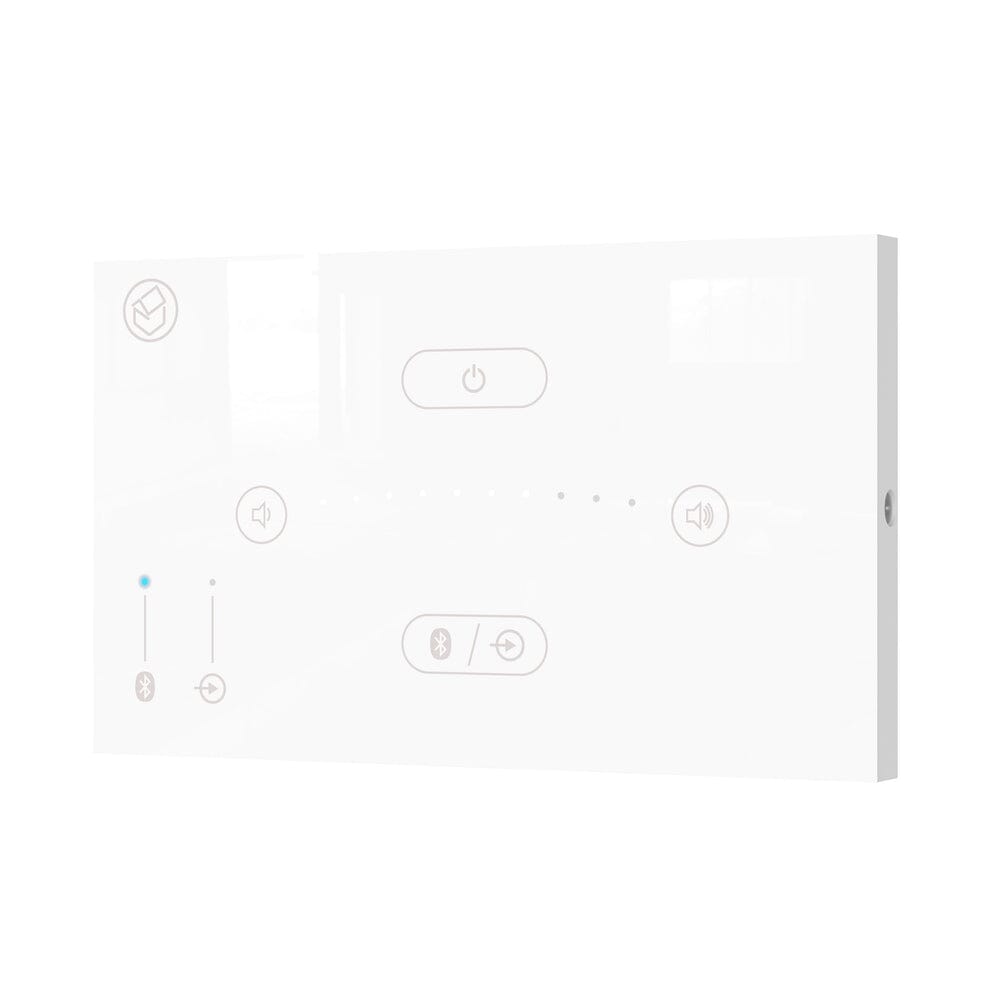

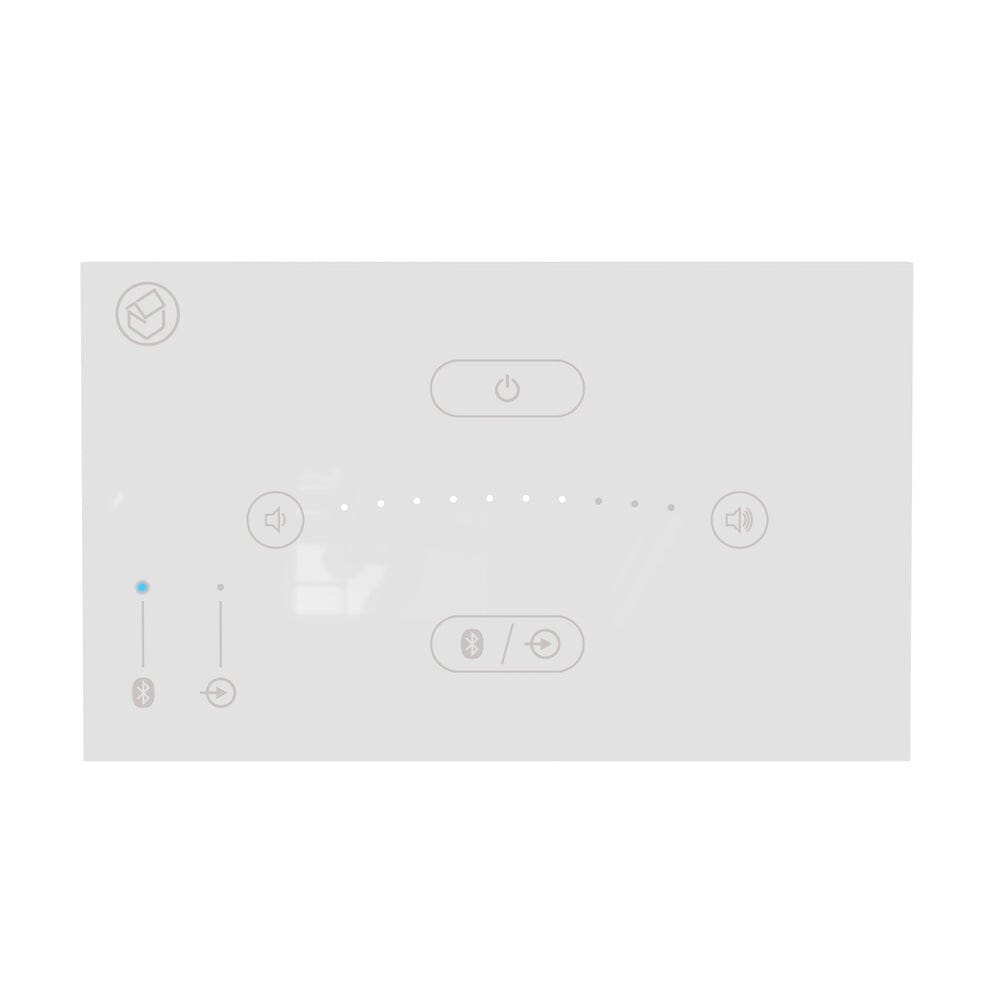

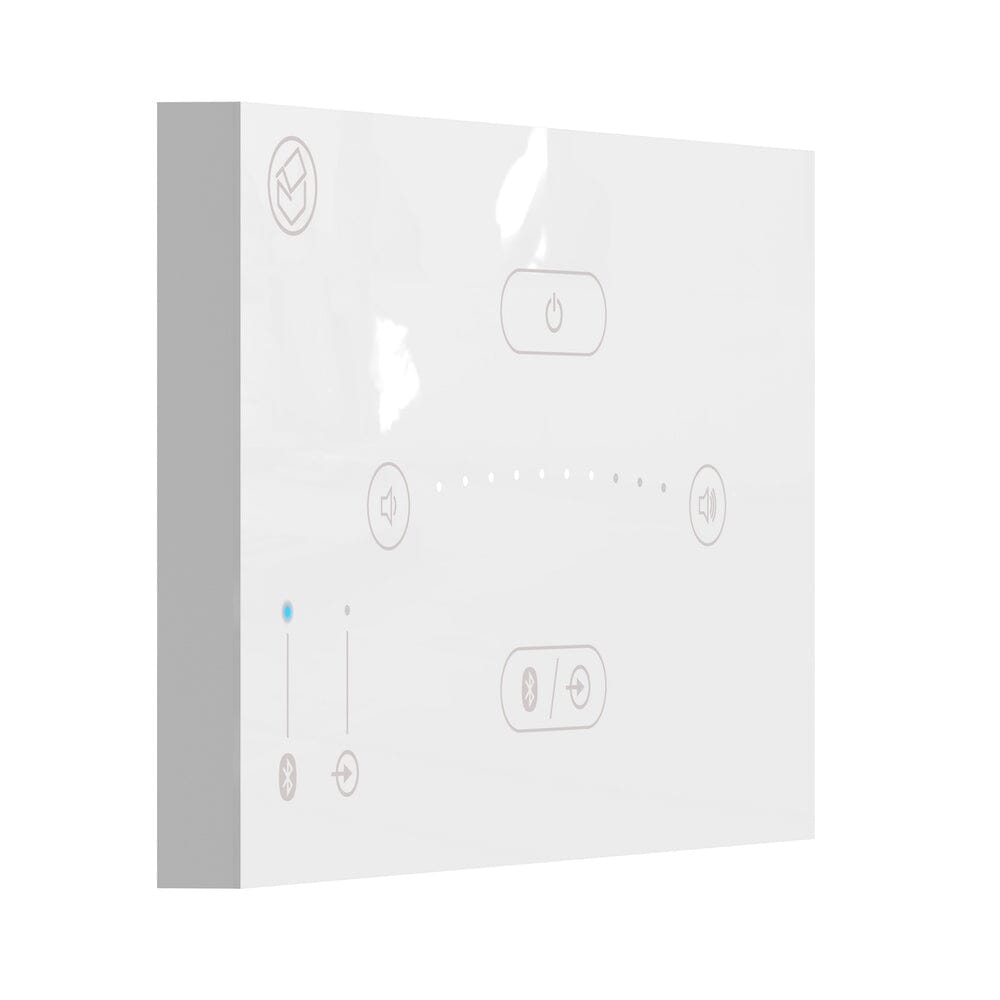

Systemline E50 6.5" Bluetooth Ceiling Speaker System - White

The first impression of an installed Systemline E50 is one of gloss-white elegance, but it does not stop there.

Not only does the Systemline E50 feature touch sensitive control but also contactless hand gesture operation.

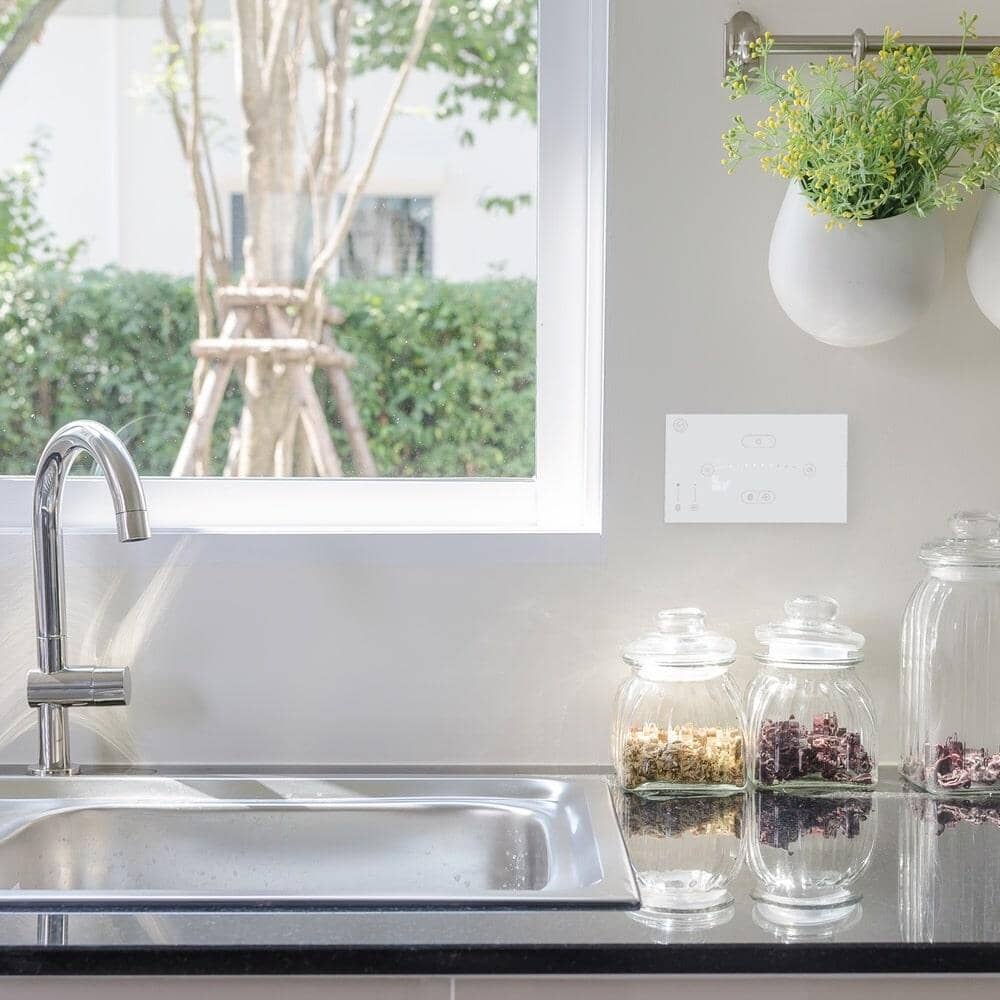

This is particularly useful in locations such as kitchens, where not having to touch a panel whilst kneading the pizza dough is of obvious practical benefit.

You'll find the Systemline E50 a pleasure to use, because it is so easy and has a number of important benefits over standalone Bluetooth speakers

FEATURES

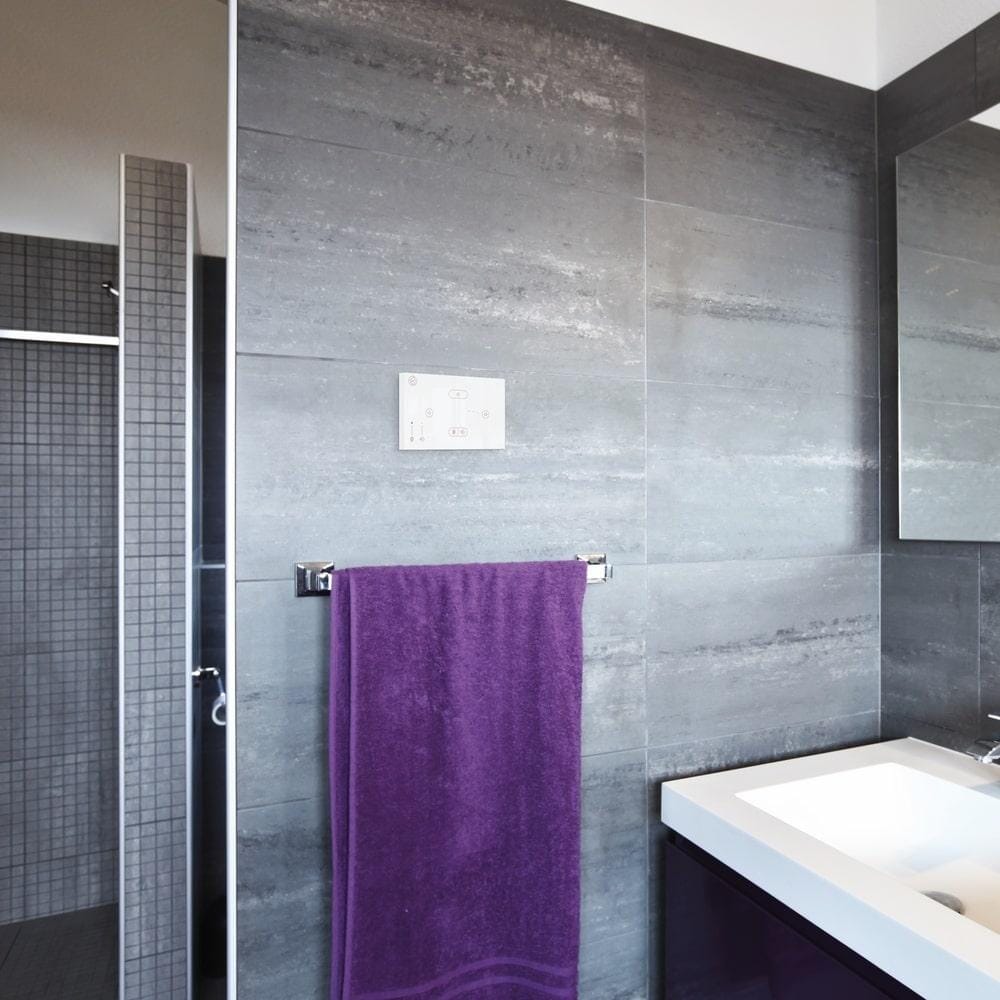

• No clutter – Systemline E50 is built into the wall or kitchen cabinet
• Touch sensitive panel and contactless gesture control
• Built in Bluetooth audio receiver – which facilitates robust wireless music streaming from any suitably equipped smart phone, tablet or laptop
• Superb sound quality with superior stereo sound stage delivered from separate left and right installed ceiling speakers
• TV sound connection
• Elegant design with an attractive gloss white finish
• Wipe clean – not a dust and grime collecton

AMPLIFIER

• Dimensions: 150 x 90mm x 47mm (WxHxD)

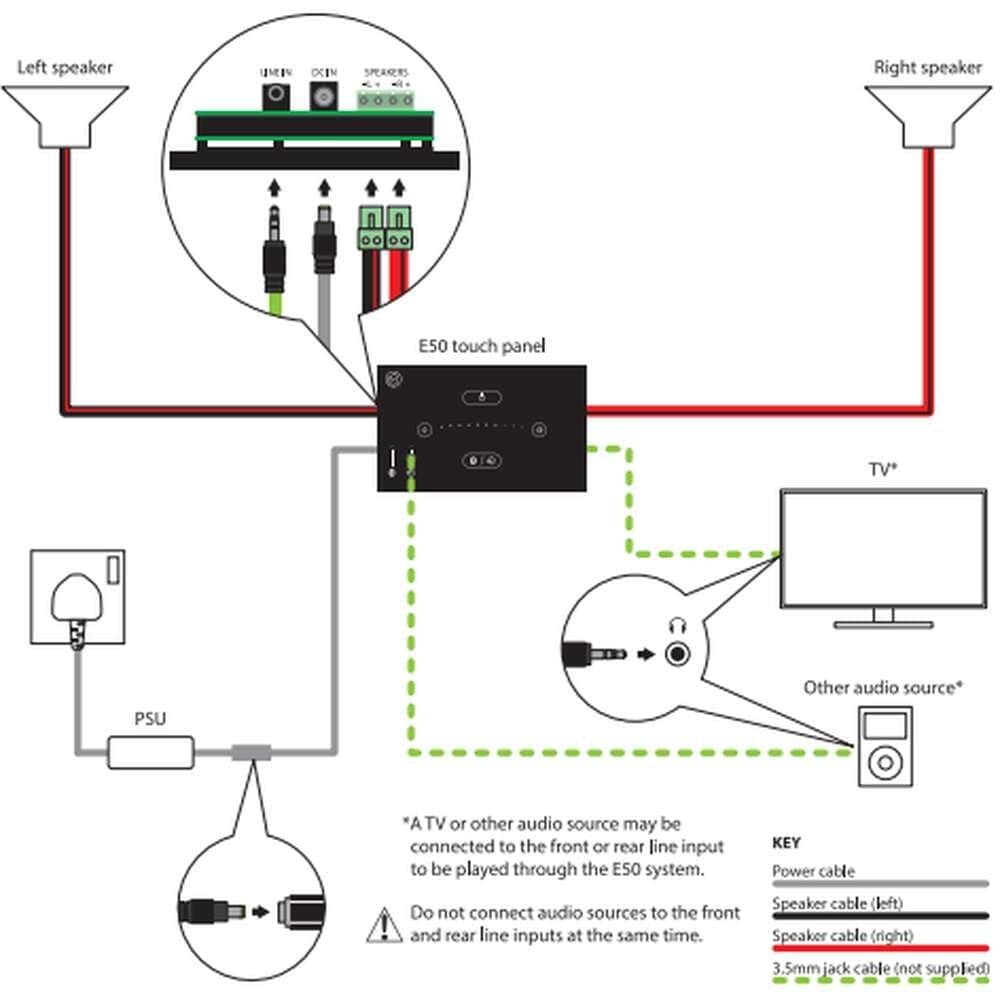

• Inputs: Rear Line In 3.5mm Stereo Jack (Audio In), DC Jack (18V DC In)
• Outputs: Speaker x 2 (Up to 4 x 8ohm speakers)
• Bluetooth: Class 2 Bluetooth 2.1 aptX for CD-quality transmission, Selectable device name to allow multiple units to be used in close proximity, Secure pairing system
• Range: Up to 10m
• Amplifier: 2 x 18W into 8 Ohms
• Dimensions: (WxHxD) 50mm x 82mm x 68mm
• Plug Type: UK 3 Pin
• Inputs: 110-240VAC 50-60Hz 1.6A
• Outputs: 18V 2.8A

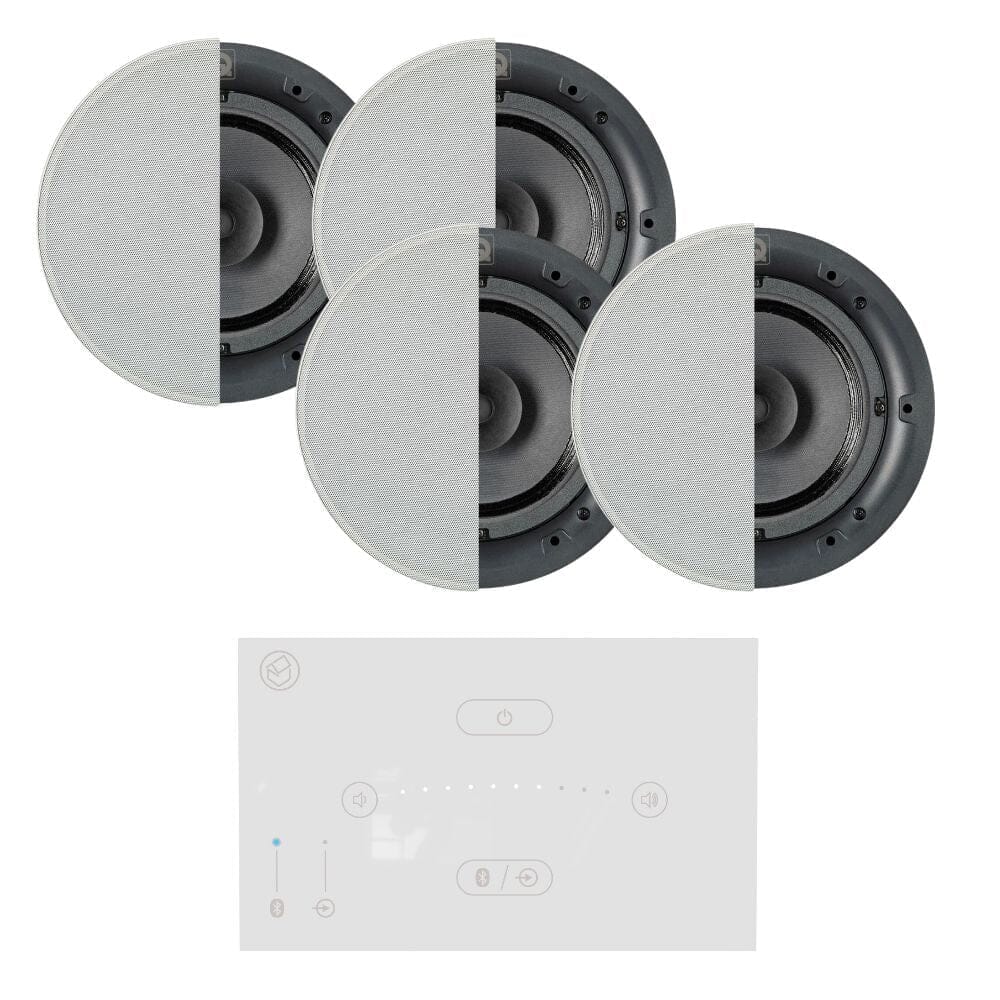

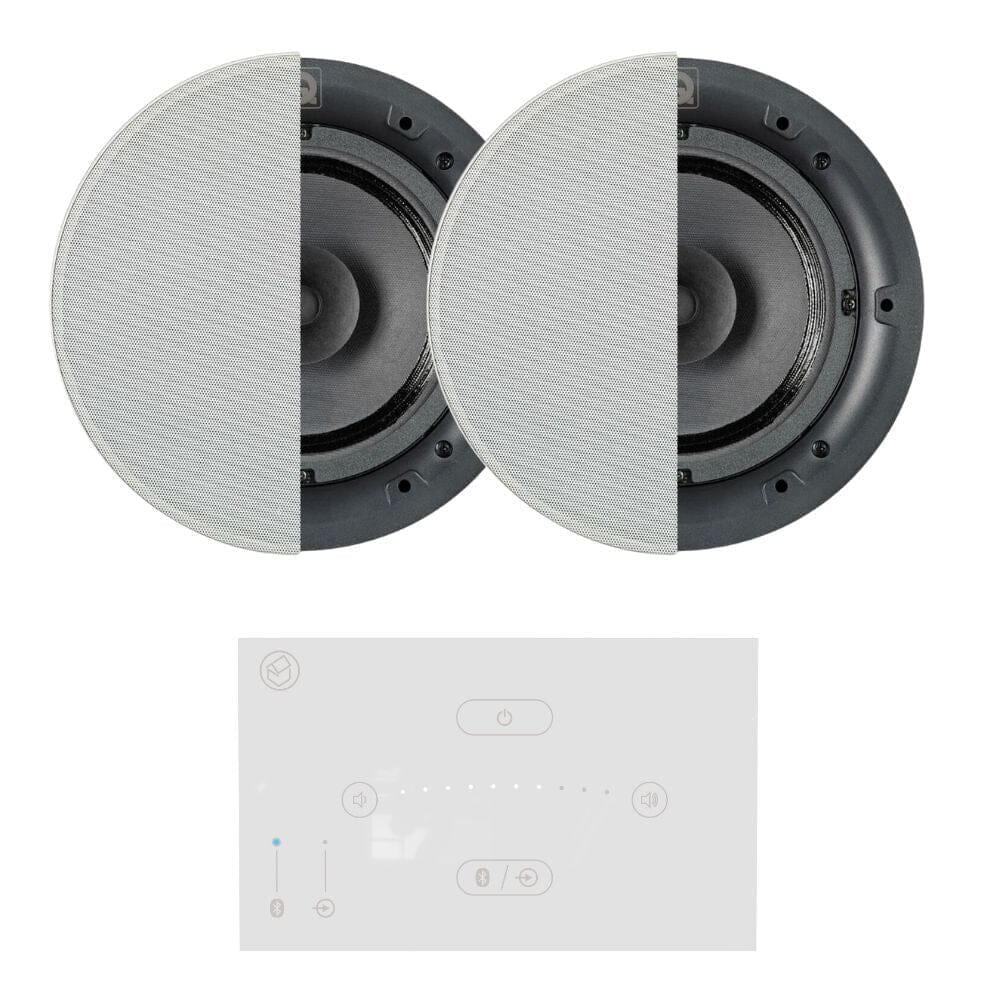

SPEAKERS (STANDARD)

Brand = Q Acoustics

Model = QI65CB

• Woofer diameter: 6.5"
• Cutout size: 203mm
• Power handling (program): 50W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 93
• Response(Low freq.) -3dB Hz: 77 - 20,000
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

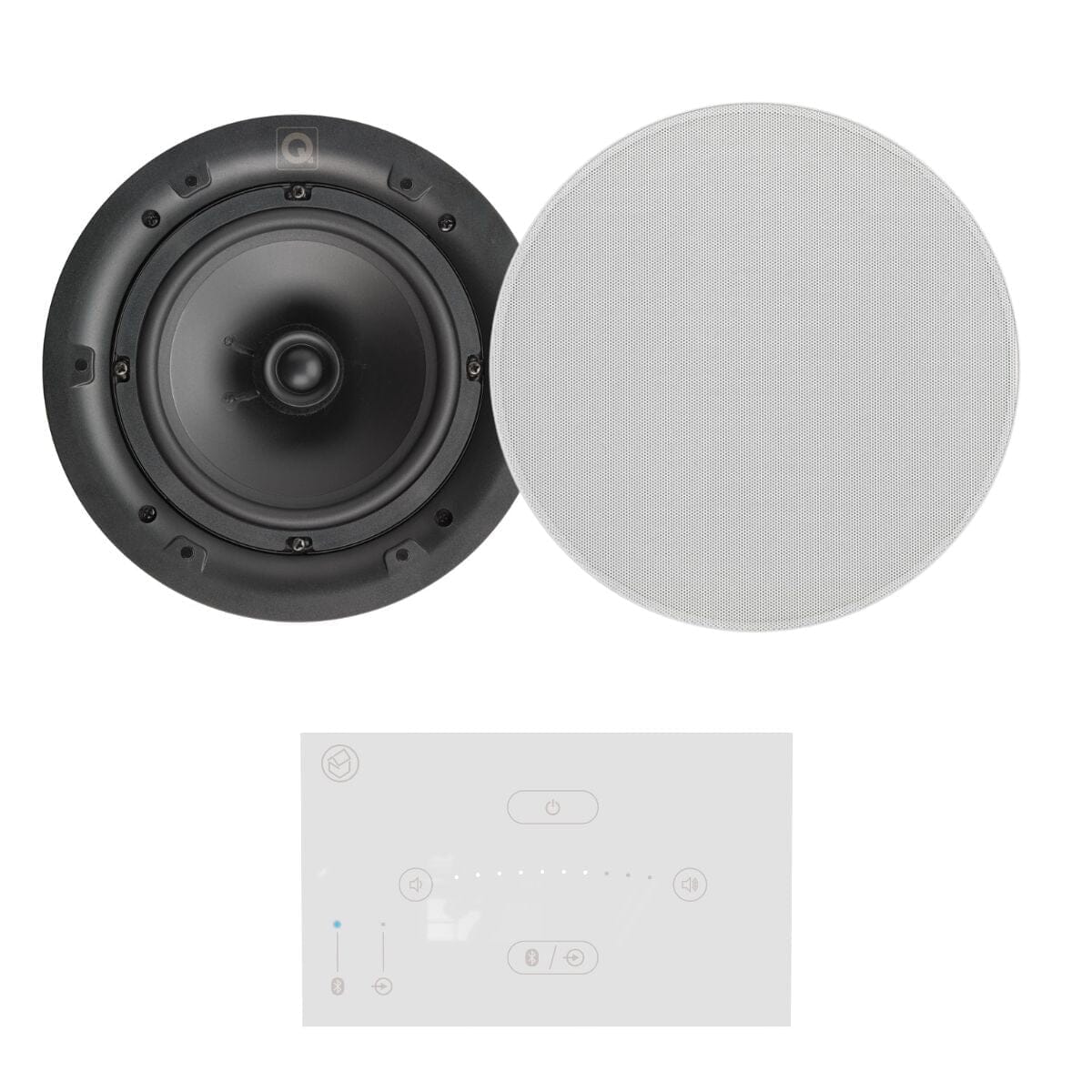

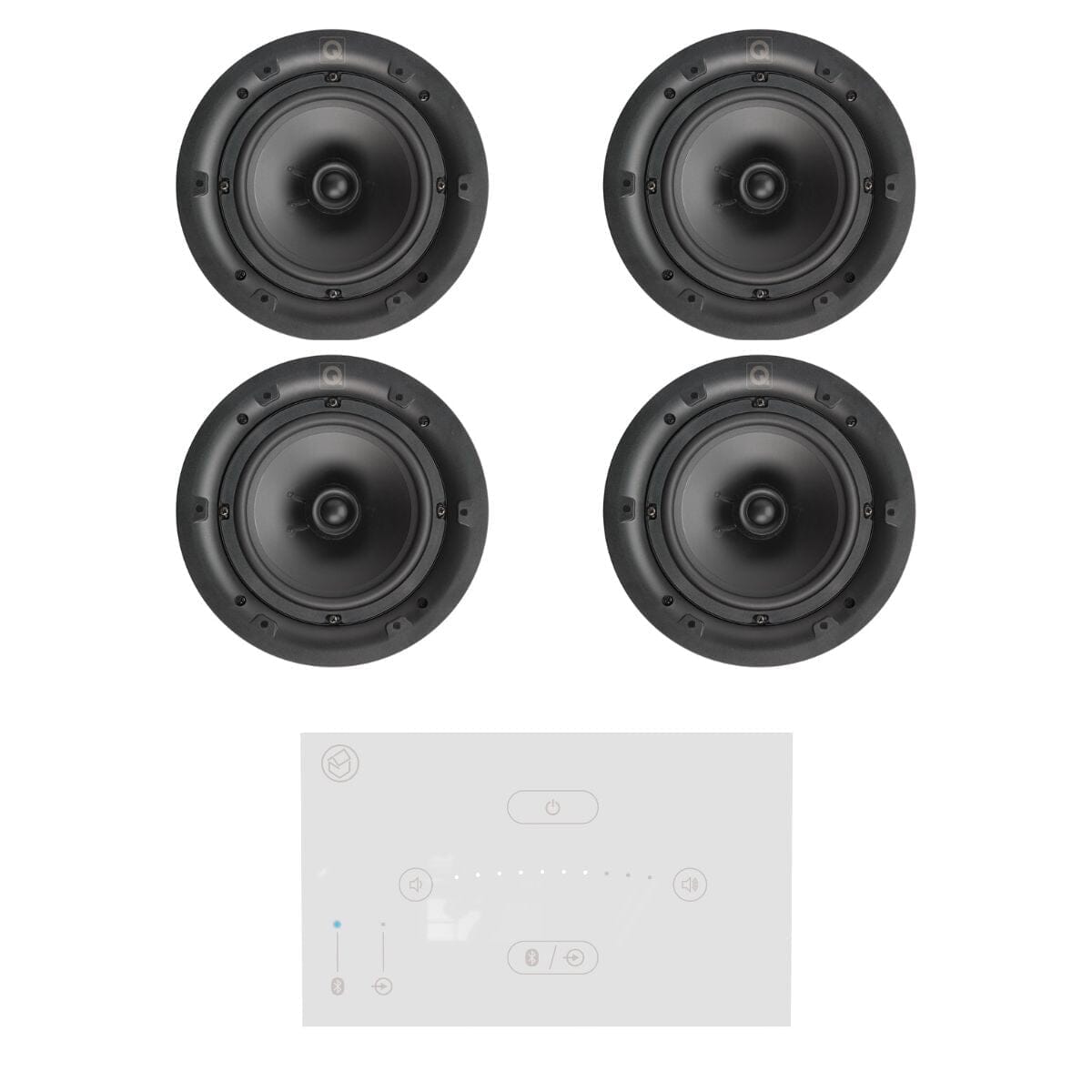

SPEAKERS (HIGH DEFINITION)

Brand = Q Acoustics

Model = QI65C

• Tweeter: Swivel
• Tweeter diameter: 0.75" (19mm)
• Woofer diameter: 6.5"
• Cutout Size: 203mm
• Power handling (program): 15-60W
• Impedance (nominal) ohms: 8ohm
• Sensitivity dB spl (2.83V, 1m): 89
• Response(Low freq.) -3dB Hz: 75
• Maximum rear depth: 79mm
• Size(Round grilles): 232mm dia
• Warranty: 5 Years

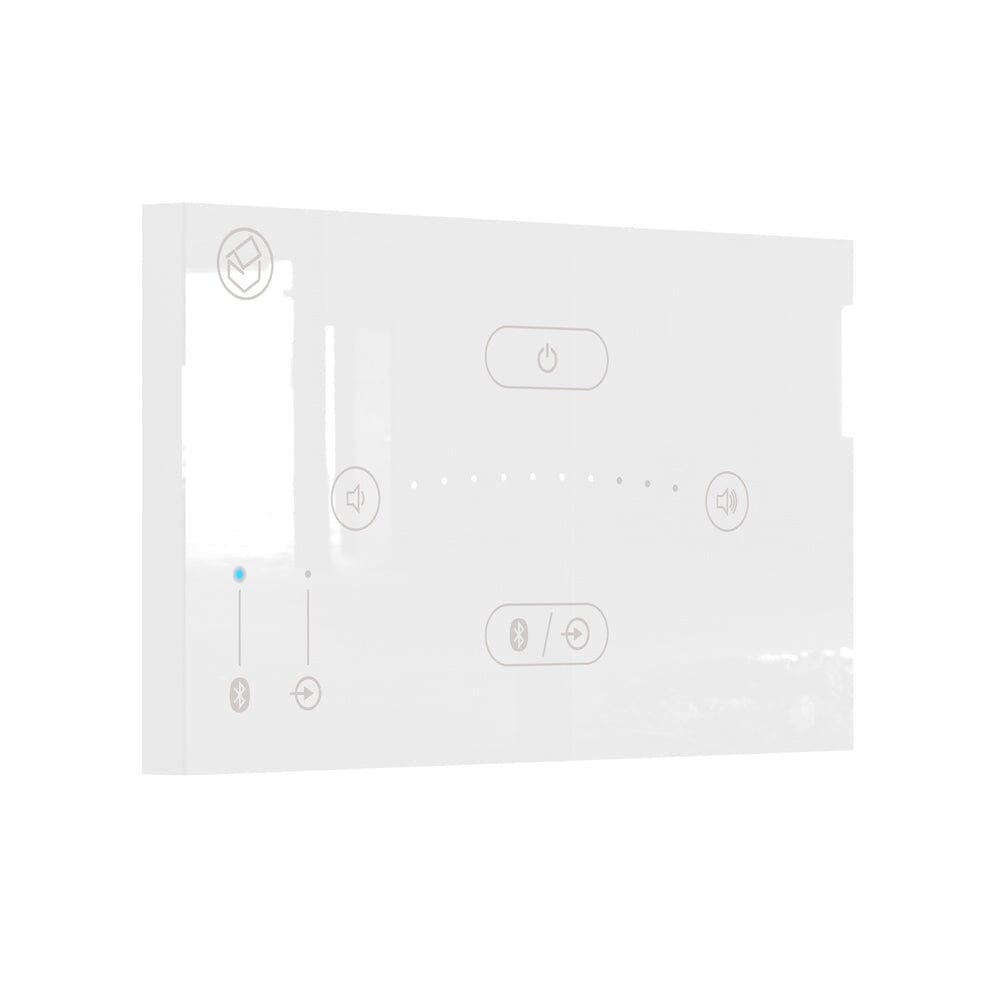

• 1 x Systemline E50 Touch Panel - Gloss White
• 1 x Mounting Frame
• 1 x Dry Lining Back Box
• 1 x Power Supply
• 1 x Power Extension Cable (5m)
• 2 x Speaker Cables (7m)
• 2 x Q Acoustics QI 65CB In-Ceiling Speakers

• Installation Manual
• E50 User Manual
