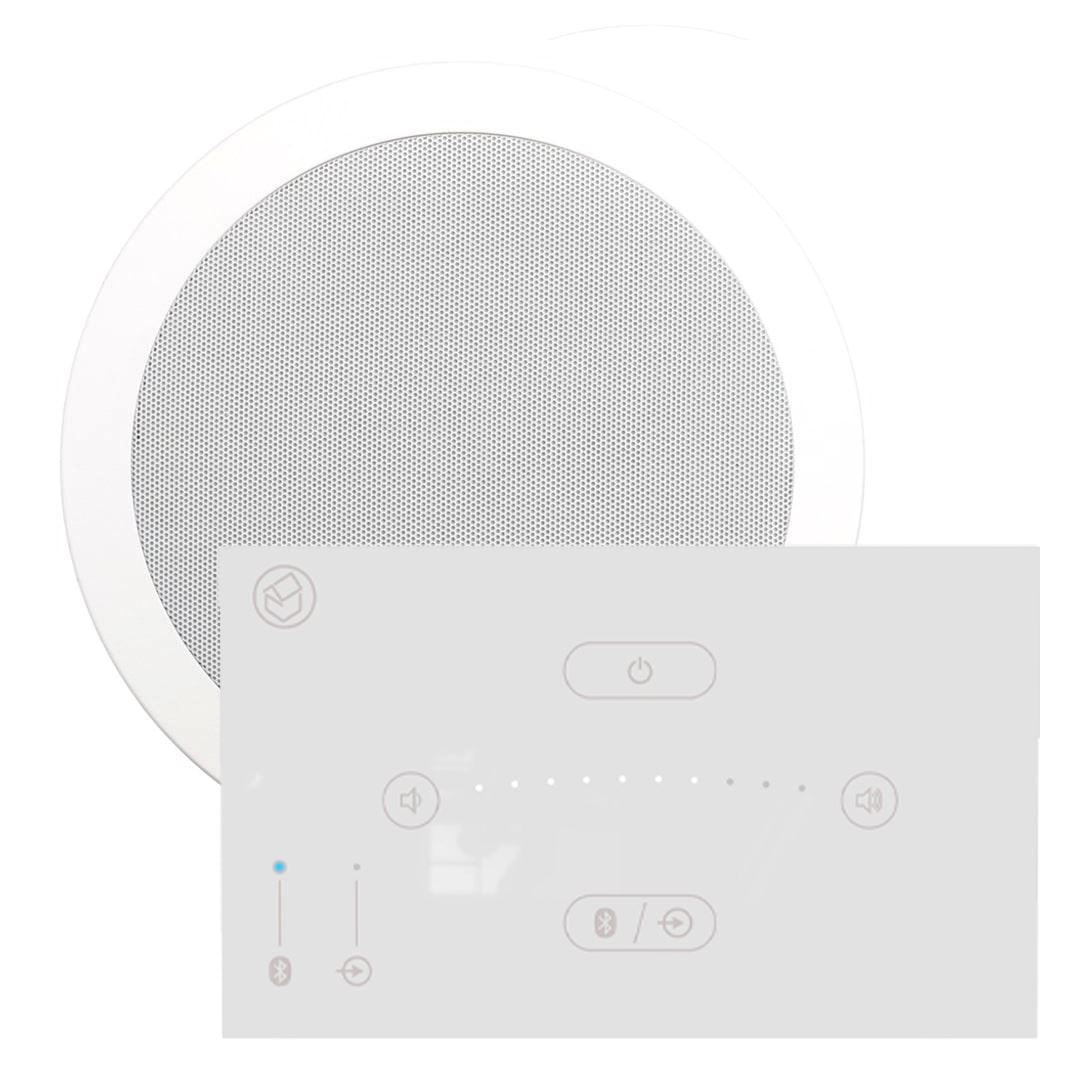

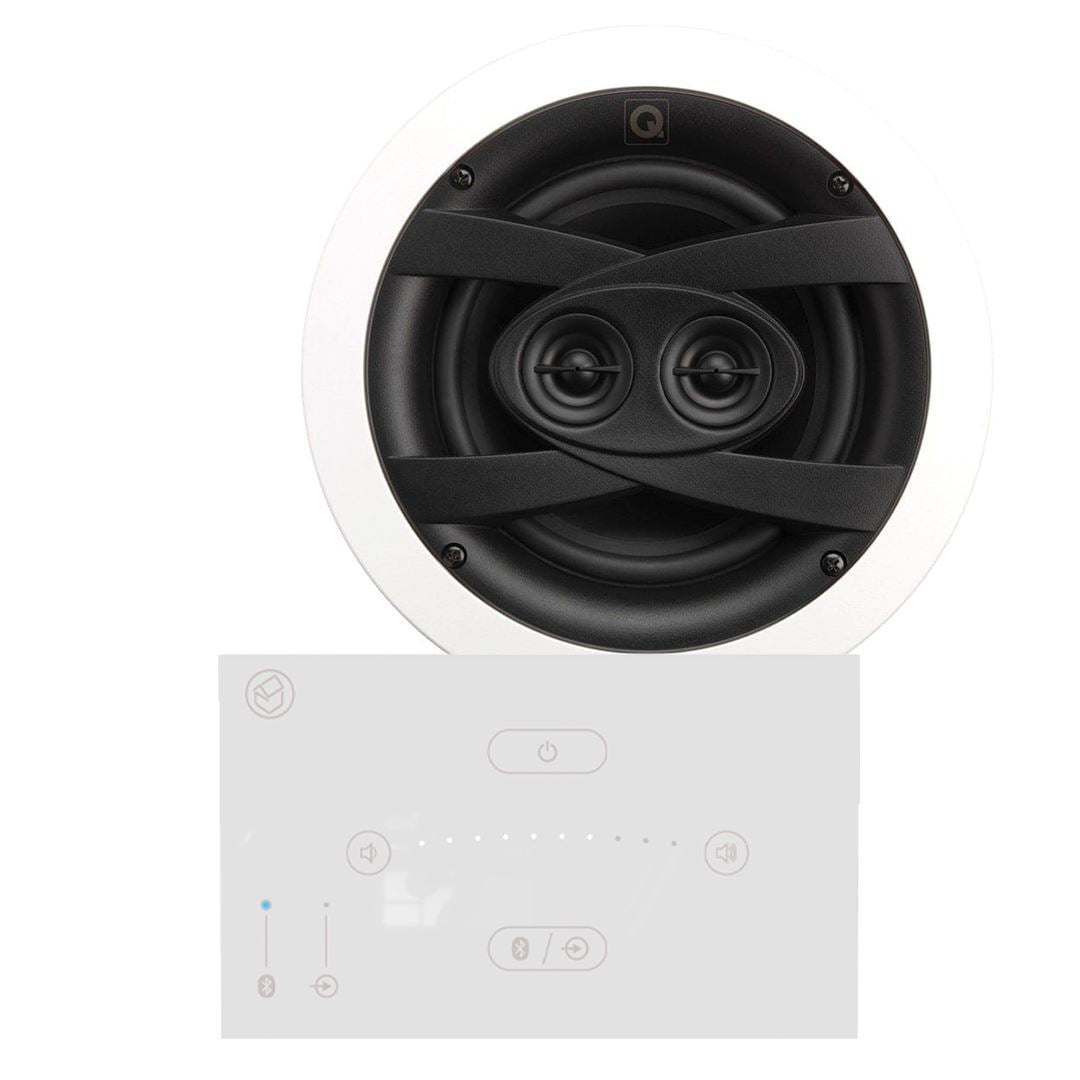

Systemline E50 Bathroom Bluetooth Ceiling Speaker System inc. 6.5" Stereo Ceiling Speaker

Systemline  |  SKU: SE0570
£349.99

Description

Ideal for bathrooms small and large, the Systemline E50 is a wall mounted amplifier unit which lets you stream music from your smart phone or tablet.

A powerful 2 x 18W amplifier will fill even the largest of bathrooms with high quality music played through the discreet waterproof ceiling speakers.

Control the volume, track and more with simple hand gestures, with a wave of the hand you can change tracks, a circular motion will turn the volume down! Perfect for wet hands.

You could even connect a bathroom television to the system so you can enjoy your TV programs with room-filling sound.

Systemline E50 Features


Easy To Use


Simple touch screen controls available on in-wall touch panel


Bluetooth Streaming


Stream audio wirelessly from a range of mobile devices


Gesture Control


Contactless control via a set of intuitive hand gestures


Great Sound Quality


18W / channel stereo Hi-Fi amplifier with Bluetooth (aptXTM and AAC)*


Elegant Finish


Attractive gloss white touch panel and discrete speaker design


Excellent Sound Dispersion


Important in large rooms and open plan layouts


No Clutter


Built-in system takes up minimal space in your home


TV Audio Connection


Connect TV to rear panel line input for enhanced TV sound


Wipe Clean


Touch panel does not collect dust and grime


Easy Access Line Input


Direct connection from almost any audio source via front jack socket



Gesture Control

The real unique feature that sets the E50 apart from its rivals is the gesture controls! Simply wave your hand in front of the unit to change the volume, mute and un-mute. Ideal for when you're in the bathroom, no need to touch the panel to adjust volume or tracks with wet hands.

Systemline E50 Installation

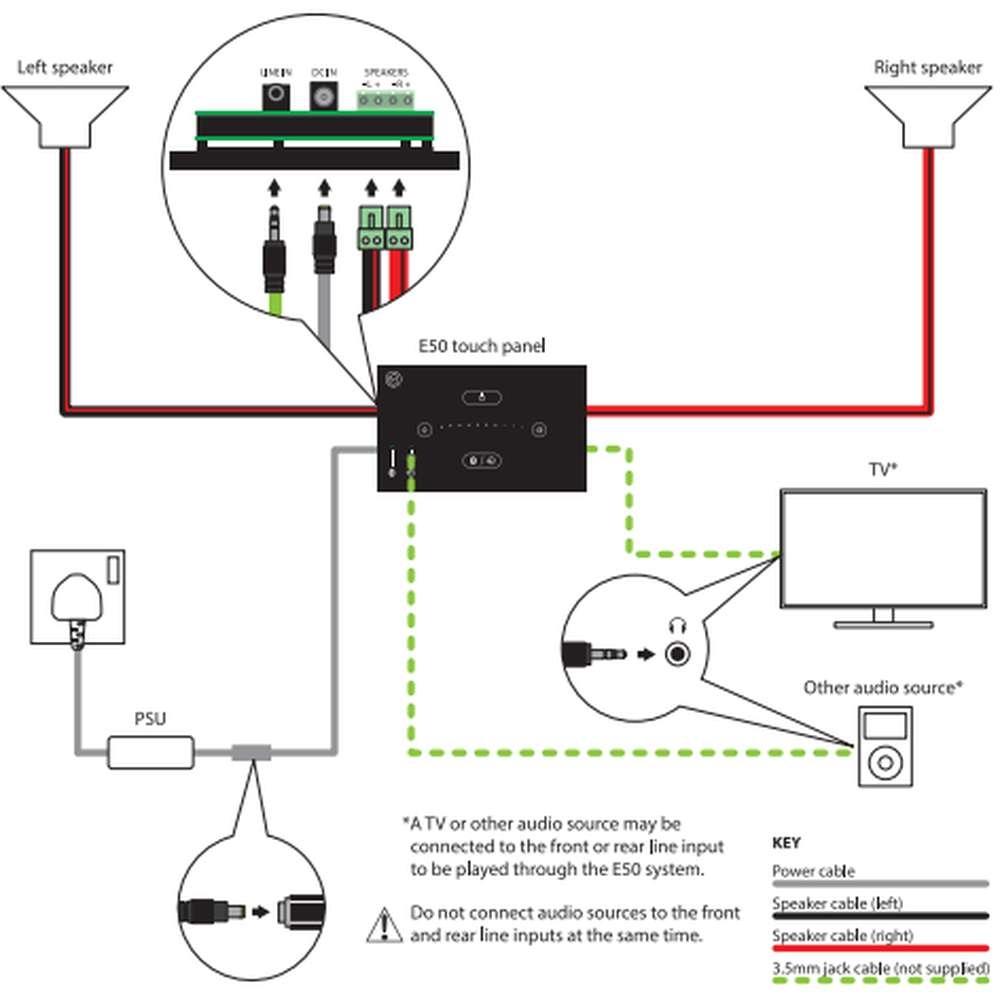

Installing the E50 is pretty easy, the amplifier fits to a standard 2G UK back box, install the power supply to a three pin socket mounted above the ceiling or in a cupboard and run the speaker cable to the two ceiling mounted speakers.

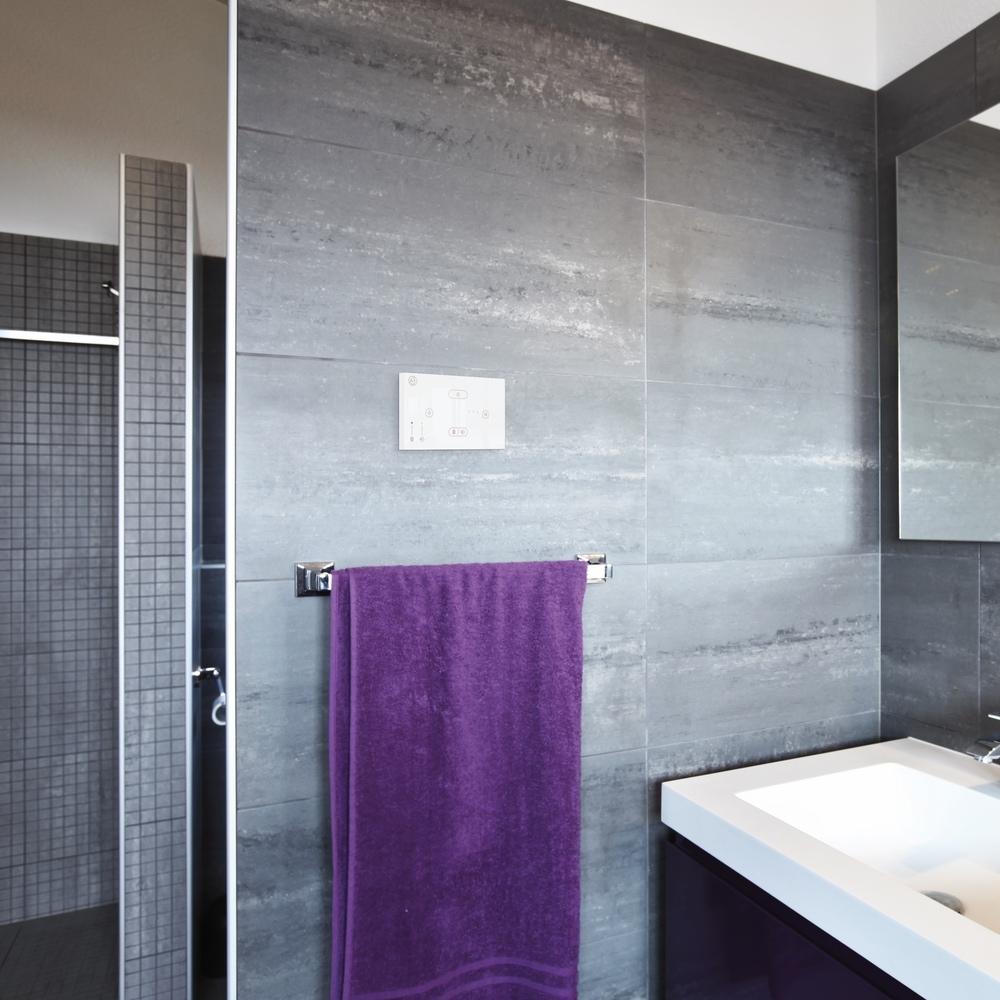

If it's going in a bathroom then you need to make sure it's outside of Zone 2, so it can't go in the shower, over the bath or sink. Most installations are either by the door, or on the outside of the room to make sure you're clear of all bathroom regulations completely!

A quick bead of silicone sealant around the wall frame will prevent steam ingress and the 3.5mm audio jack bung should also be used (included).

What's Included With The Systemline E50?

The E50 is a complete, ready to install bundle and contains everything you need to complete your new radio system install.

  • Systemline E50 Amplifier Keypad with Gesture Control
  • Power Supply (5M)
  • 1 x 6.5" Q Acoustics QI65CW-ST Stereo Input Waterproof Ceiling Speaker
  • 47mm 2 Gang Dry Lining Back Box
  • Speaker Cables (2 x 7M)

Speaker Features

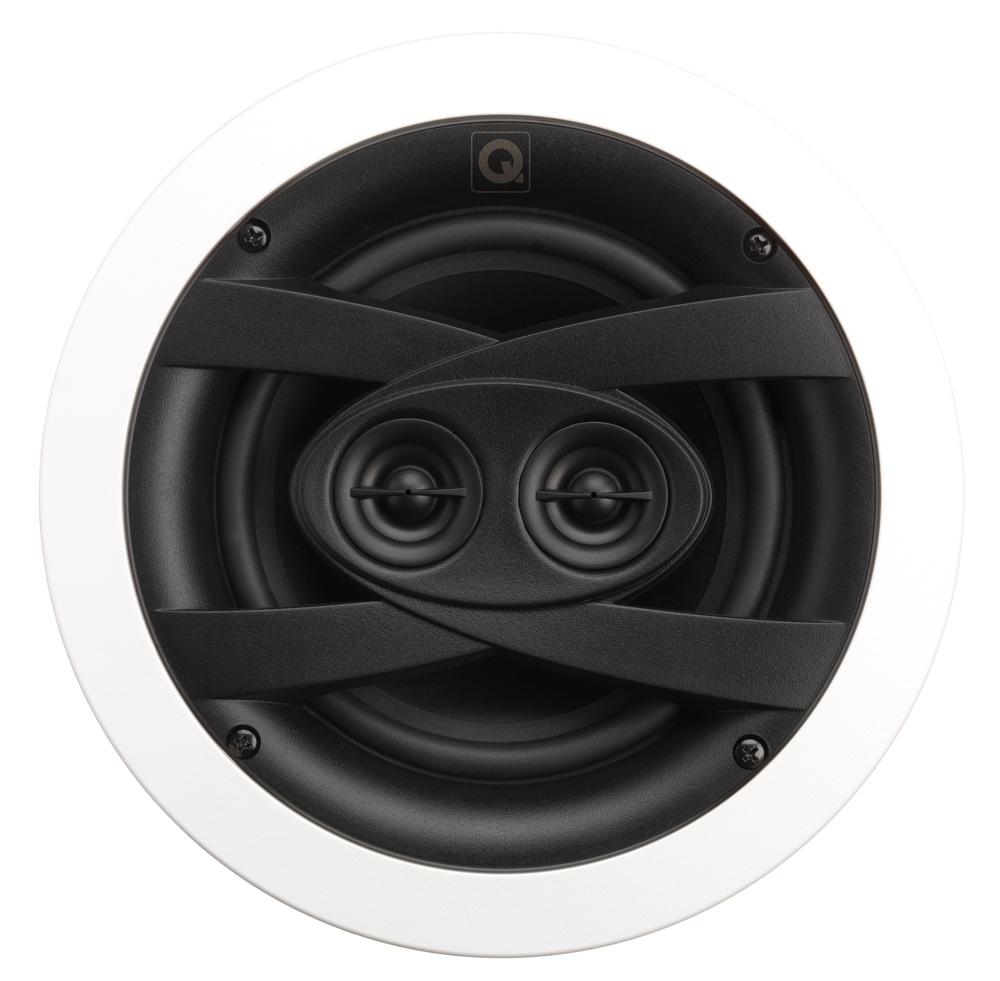

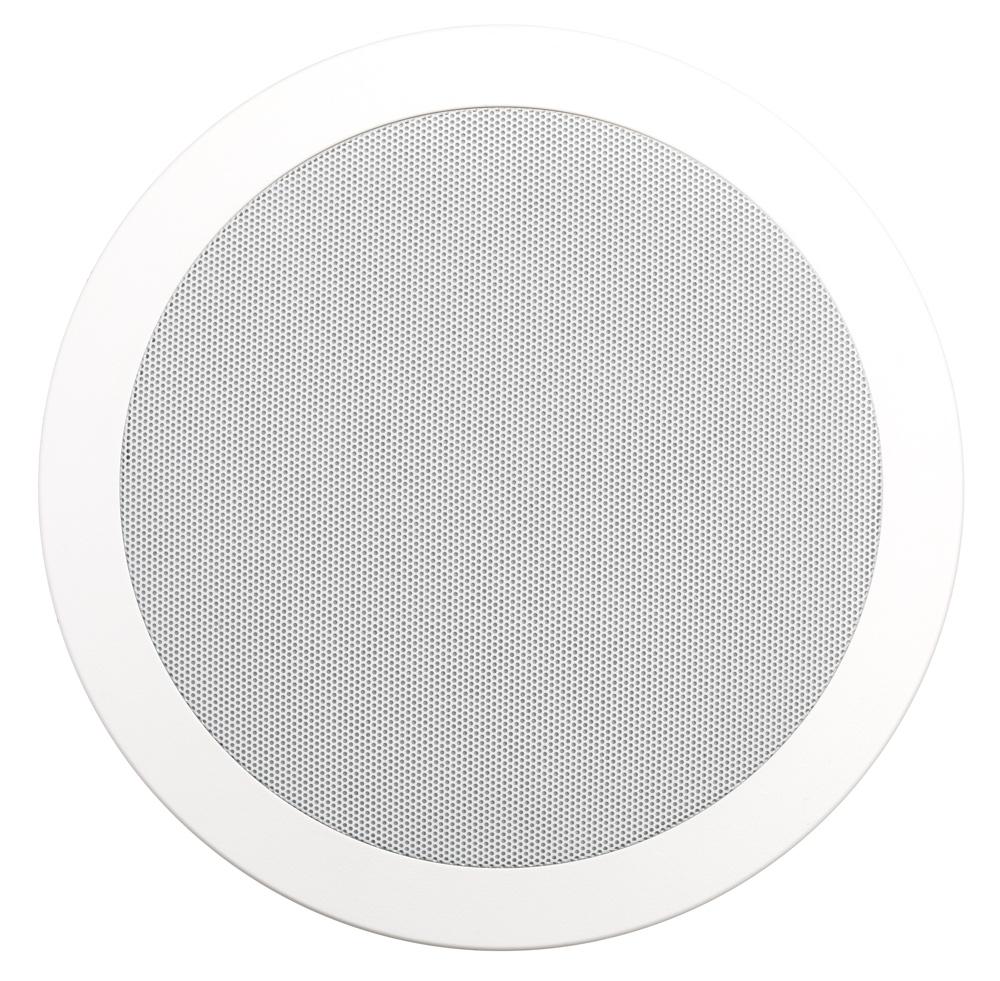

The Q Install 6.5" Weatherproof single stereo ceiling speaker features the very latest styling and stereo speaker technology that is designed to meet the most demanding requirements of custom installers and their clients.

It features a discreet bezel and grille design that clips magnetically into place, with the grille geometry being carefully optimised to ensure the perfect balance between sound and discreet appearance. As with all Q Install products they feature protective driver dust covers and cloth backed grilles to facilitate painting.

The HF is adjustable by + or - 3dB from a switch on the crossover.

These speakers are clutter free and will blend seamlessly with your interior, allowing you to relax with your favourite music in high quality. No cables on show!

The Q Install QI65CW-ST speaker can also withstand the harshest of elements that means you can enjoy them both indoors and outdoors, whilst using the stereo speaker technology that gives you superior sound wherever you may be. This allows you to be able to listen to music throughout your home whether that's in the bathroom, wet room or even outside when you're in the hot tub!

Key Features

  • Zones
    Single Zone
  • Placement
    In Ceiling
  • Music Sources
    Bluetooth
  • Inputs
    3.5mm AUX
  • Power Handling
    36W RMS (2 x 18W)

Specifications

    AMPLIFIER

    • Dimensions: 150 x 90mm x 47mm (WxHxD)
    • Inputs: Rear Line In 3.5mm Stereo Jack (Audio In), DC Jack (18V DC In)
    • Outputs: Speaker x 2 (Up to 4 x 8ohm speakers)
    • Bluetooth: Class 2 Bluetooth 2.1 aptX for CD-quality transmission, Selectable device name to allow multiple units to be used in close proximity, Secure pairing system
    • Range: Up to 10m
    • Amplifier: 2 x 18W into 8 Ohms
    • Dimensions: (WxHxD) 50mm x 82mm x 68mm
    • Plug Type: UK 3 Pin
    • Inputs: 110-240VAC 50-60Hz 1.6A
    • Outputs: 18V 2.8A

    SPEAKER

    Brand = Q Acoustics

    Model = QI65CW-ST

    • Tweeter: Swivel
    • Tweeter diameter: 2 x 0.5" (13mm)
    • Woofer diameter: 6.5"
    • Power handling (program): 15-60W
    • Impedance (nominal) ohms: 8 ohm
    • Sensitivity dB spl (2.83V, 1m): 85
    • Response(Low freq.) -3dB Hz: 65
    • Cutout Size: 197mm
    • Maximum rear depth: 84mm
    • Size(Round grilles): 232mm dia
    • Warranty: 5 Years

What You Get

    The E50 is a complete, ready to install bundle and contains everything you need to complete your new radio system install.

    • Systemline E50 Amplifier Keypad with Gesture Control
    • Power Supply (5M)
    • 1 x 6.5" Q Acoustics QI65CW-ST Stereo Input Waterproof Ceiling Speaker
    • 47mm 2 Gang Dry Lining Back Box
    • Speaker Cables (2 x 7M)
