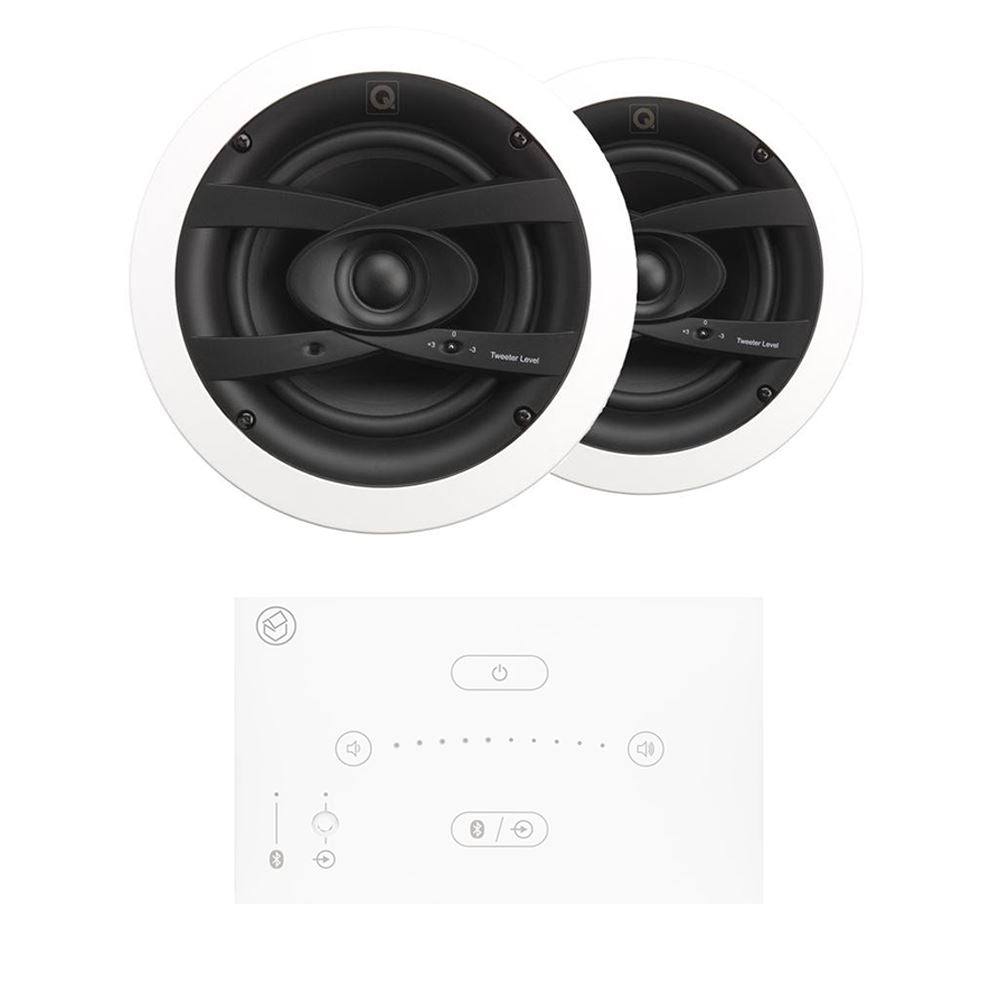

Systemline E50 DAB Radio & Bluetooth 6.5" In Ceiling Speaker System

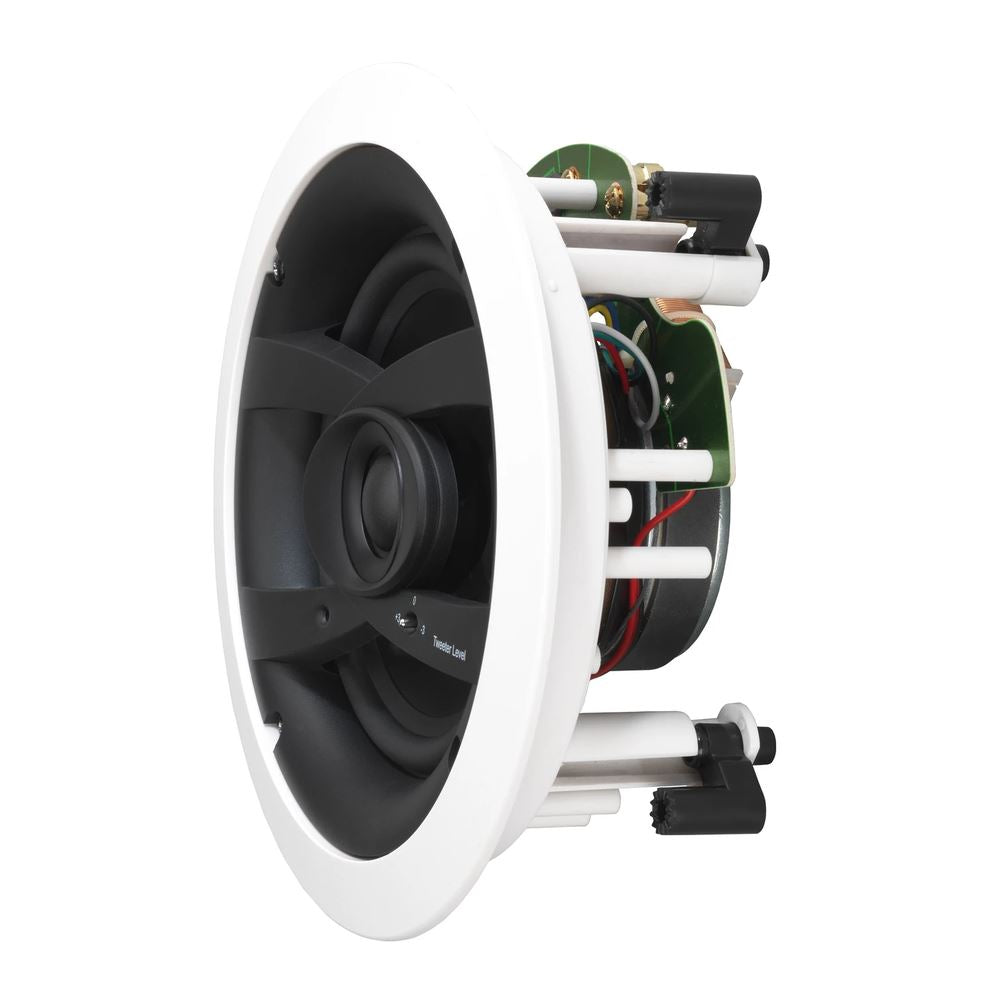

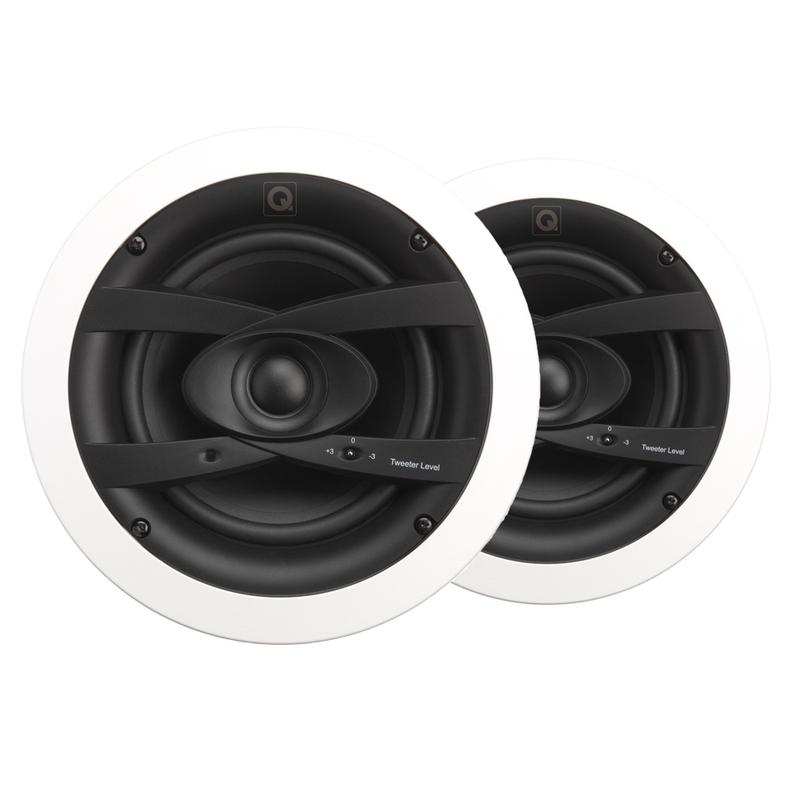

The Q Install Qi65CW 6.5" waterproof ceiling speakers features the very latest styling and technology that is designed to meet the most demanding requirements.

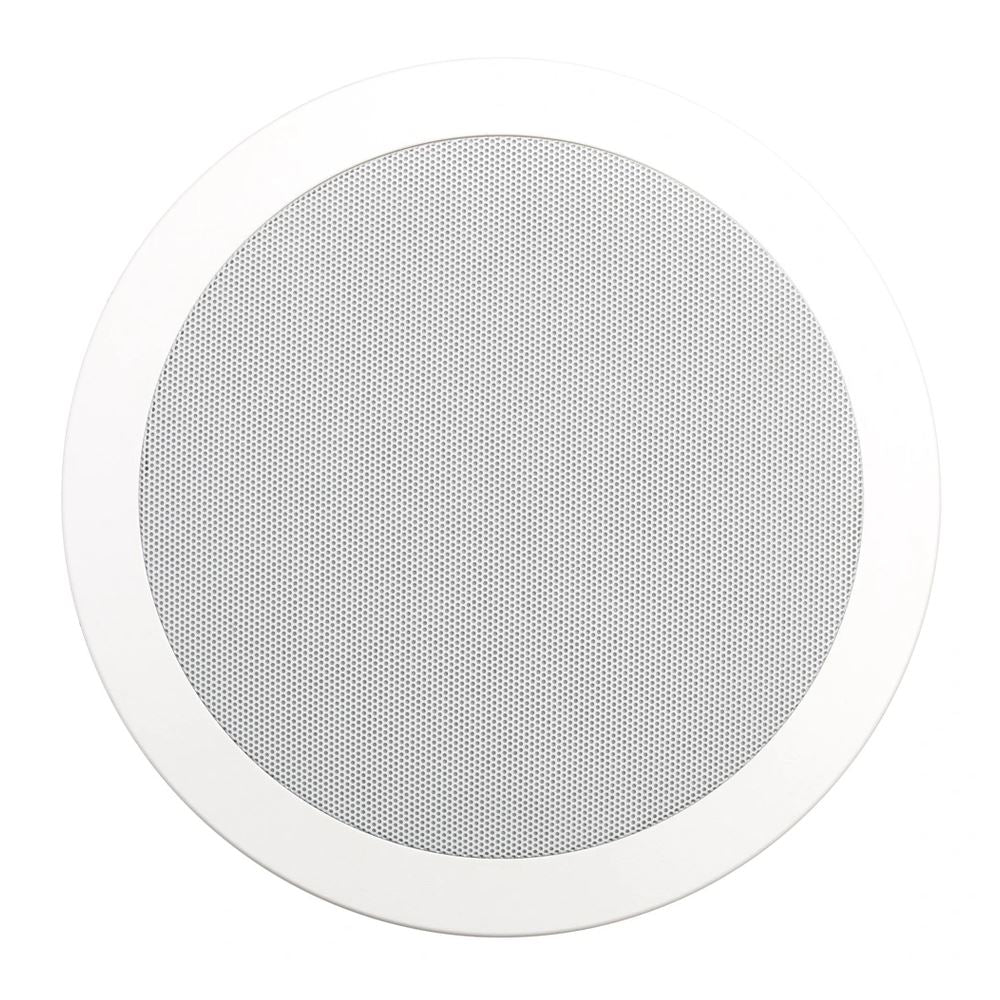

Featuring a discreet bezel and grille design that clips magnetically into place, with the grille geometry being carefully optimised to ensure the perfect balance between sound and discreet appearance. As with all Q Install products they feature protective driver dust covers and cloth backed grilles to facilitate painting.

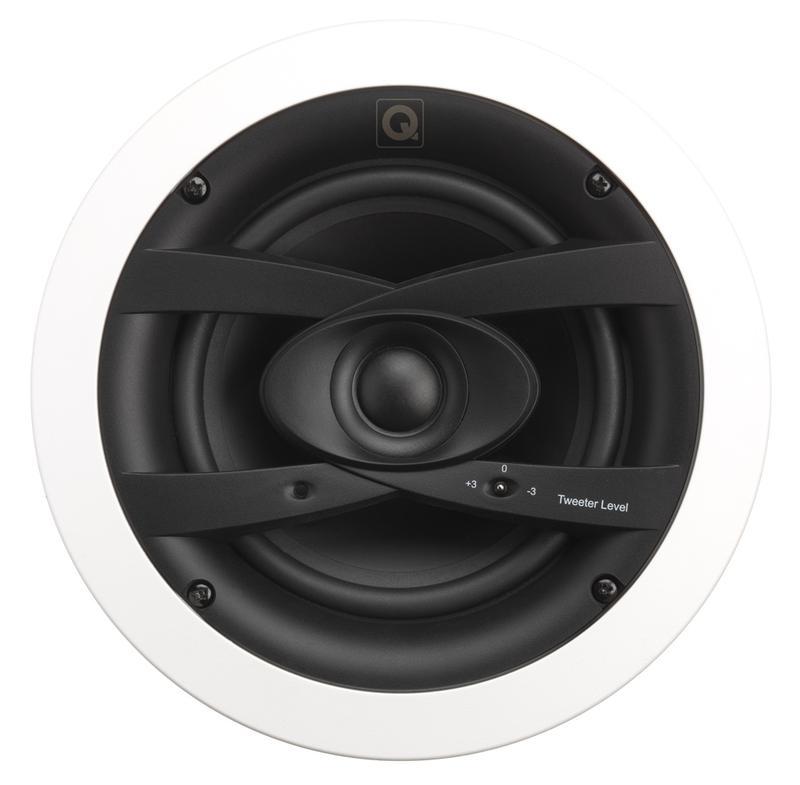

The HF is adjustable by + or - 3dB from a switch on the crossover.

The Q Install Qi65CW speakers are clutter free due to being installed within the ceiling itself which gives you more space to do what else you may wish.

These speakers can also withstand the harshest of elements that means you can enjoy your favourite music both indoors and outdoors.

The Qi65CW allow you to be able to listen to music throughout your home or work place, both inside and outside, where this was previously not possible. These are great for adding your own personal touch, and bring in more of an atmosphere.

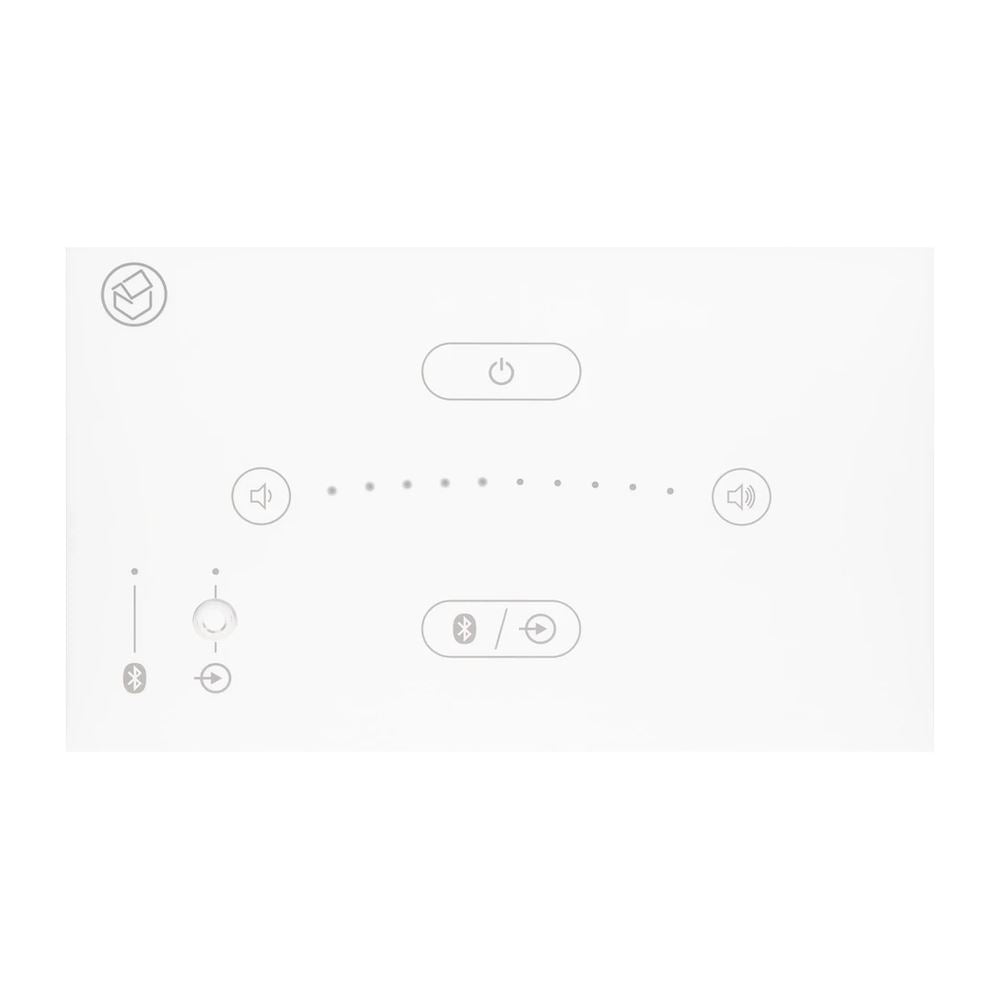

Ideal for bathrooms small and large, the Systemline E50 is a wall mounted amplifier unit which lets you stream music from your smart phone or tablet.

A powerful 2 x 18W amplifier will fill even the largest of bathrooms with high quality music played through the discreet waterproof ceiling speakers.

Control the volume, track and more with simple hand gestures, with a wave of the hand you can change tracks, a circular motion will turn the volume down! Perfect for wet hands.

You could even connect a bathroom television to the system so you can enjoy your TV programs with room-filling sound.

FEATURES

GESTURE CONTROLS

The real unique feature that sets the E50 apart from its rivals is the gesture controls! Simply wave your hand in front of the unit to change the volume, mute and un-mute. Ideal for when you're in the bathroom, no need to touch the panel to adjust volume or tracks with wet hands.

INSTALLATION

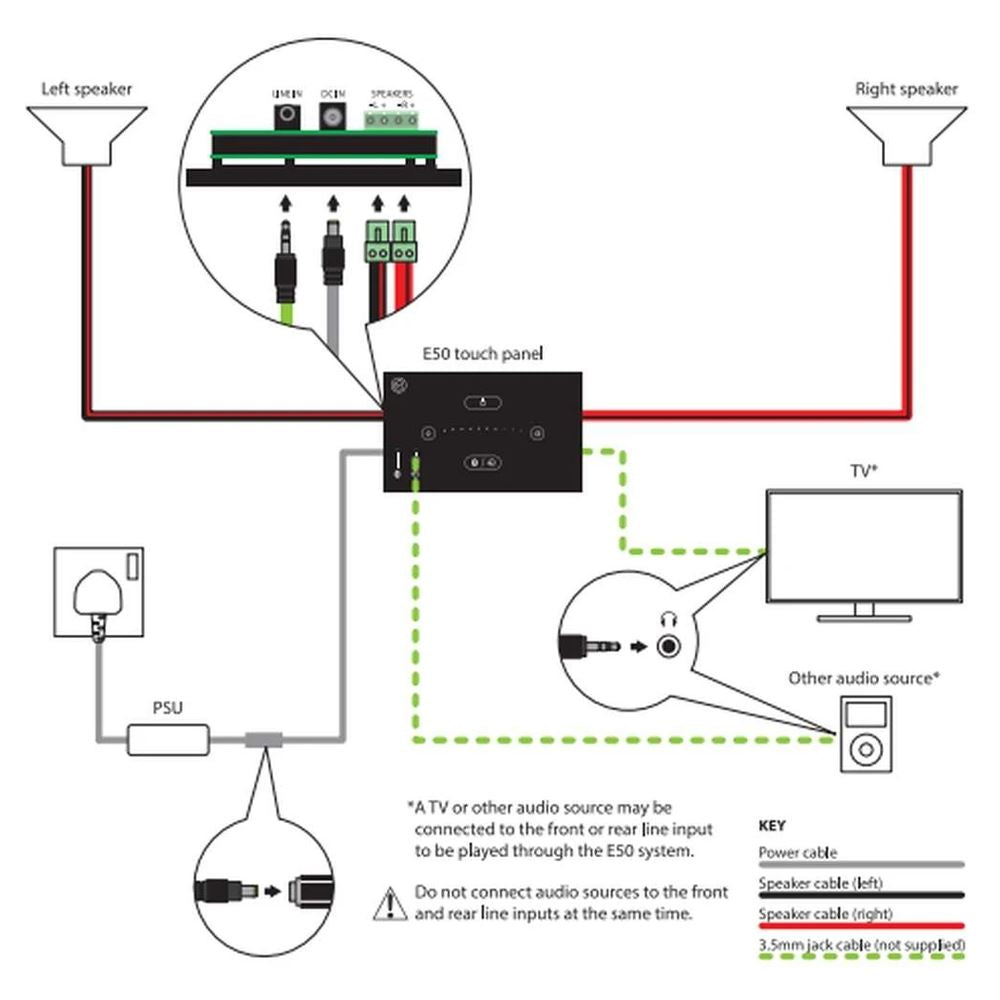

Installing the E50 is pretty easy, the amplifier fits to a standard 2G UK Backbox, install the power supply to a three pin socket mounted above the ceiling or in a cupboard and run the speaker cable to the two ceiling mounted speakers.

If it's going in a bathroom then you need to make sure it's outside of Zone 2, so it can't go in the shower, over the bath or sink. Most installations are either by the door, or on the outside of the room to make sure you're clear of all bathroom regulations completely!

A quick bead of silicone sealant around the wall frame will prevent steam ingress and the 3.5mm audio jack bung should also be used (included).

SPEAKER:

Tweeter:	fixed
Tweeter diameter:	1 x 1" (25mm)
Woofer diameter:	165mm
Power handling (program):	15-60W
Impedance (nominal) ohms:	8ohm
Sensitivity dB spl (2.83V, 1m):	87 (switchable HF)
Response(Low freq.) -3dB Hz:	65
Maximum rear depth:	84mm
Size(Round grilles):	232mm dia
Warranty:	5 Years



AMPLIFIER:



Bluetooth:

Class 2 Bluetooth 2.1

aptX for CD-quality transmission

Secure pairing system

Selectable device name to allow multiple units to be used in close proximity

Range up to 10m

Inputs:

Front & Rear Line In 3.5mm Stereo Jack (Audio In), DC Jack (18V DC In)

Power Output:

2 x 18W into 8 Ohms @ 0.5% THD 1kHz

Frequency Response:

20Hz – 20kHz +/- 1dB

Power Supply:

110-240 VAC

Dimensions:

Height - 91mm

Width - 151mm

Depth (Plate only) - 10.50mm

Depth (inc. Amp) - 45mm

• 1 x Systemline E50 Amplifier Keypad with Gesture Control
• 1 x Power Supply (5M)
• 1 x 47mm 2 Gang Dry Lining Back Box
• 2 x 7m Speaker Cables
• 2 x Q Acoustics Install QI65CW 6.5" In Ceiling Speakers

• Systemline E50 Overview Video
• Systemline E50 Unboxing Video
• Installation Manual
• E50 User Manual
• E Series with 4 speakers
• E50 Pairing with echo Dot - Alexa
