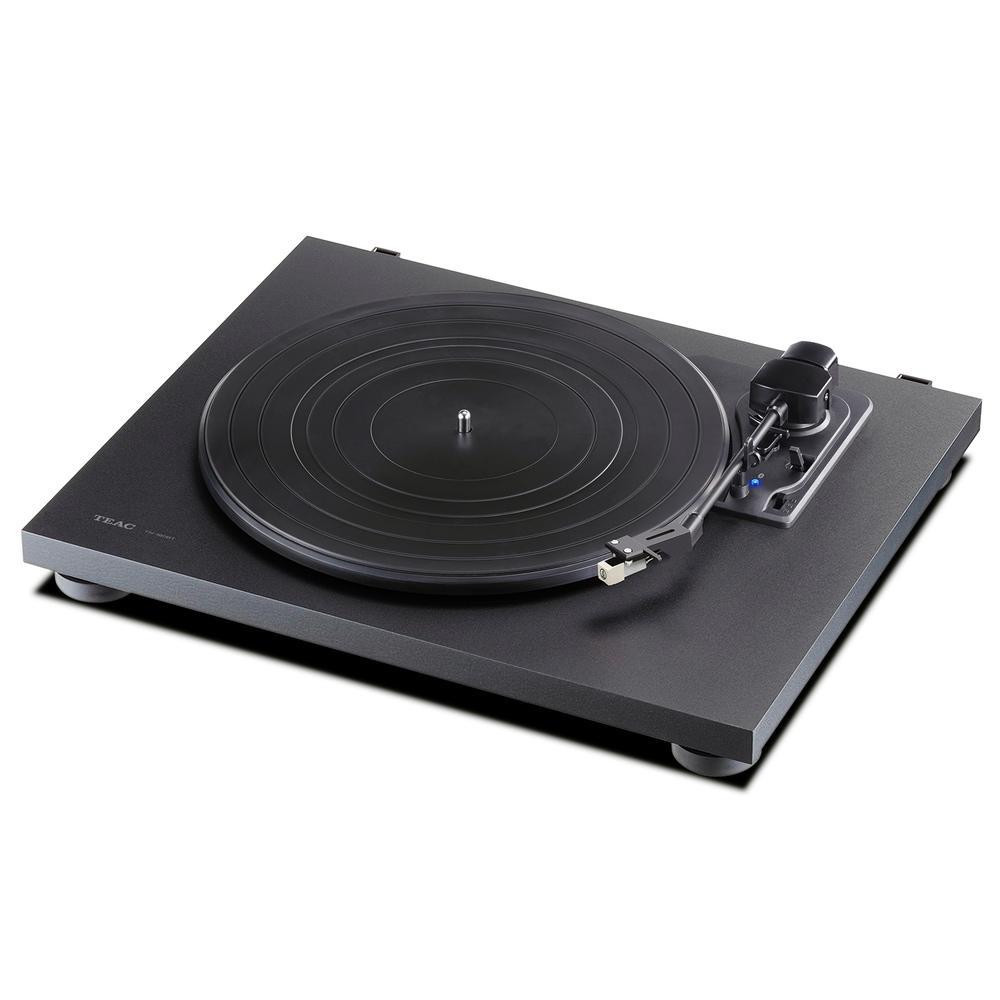

TEAC TN-180BT-A3 Belt Drive Bluetooth Turntable - 3 Speed

The TN-180BT brings you a totally new way of listening to vinyl records with its Bluetooth capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth speakers or headphones you might have for iPhones are required to enjoy the world of vinyl records.

Designed for music enthusiasts, the belt-drive motor ensures a clearer sound than direct-drive DJ players, while selectable outputs, Phono, Line or Bluetooth allow you to connect any type of amplifiers, powered speakers or Bluetooth devices.

Unlike many budget turntables, the TN-180BT employs a single wooden board cabinet with high-density MDF to dampen vibrations and provide clearer and richer sound, while 3-speed and auto-return turntable mechanism.

For music lovers who have been collecting vinyl records for decades or those just starting out, TEAC’s TN-180BT delivers the true sound of vinyl records.

FEATURES

• 3-speed Belt-drive turntable supporting 33/45/78 rpm

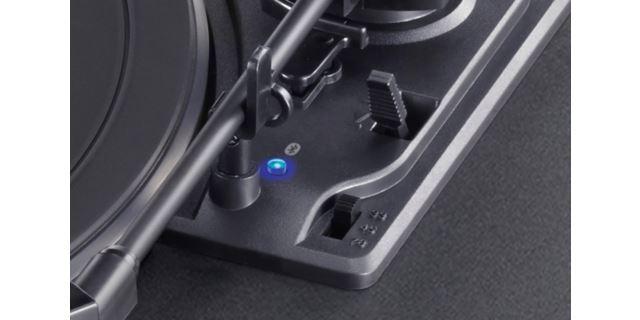

• Built-in Bluetooth transmitter to BT speakers or headphones
• Built-in Phono equalizing amplifier and Phono and Line outputs

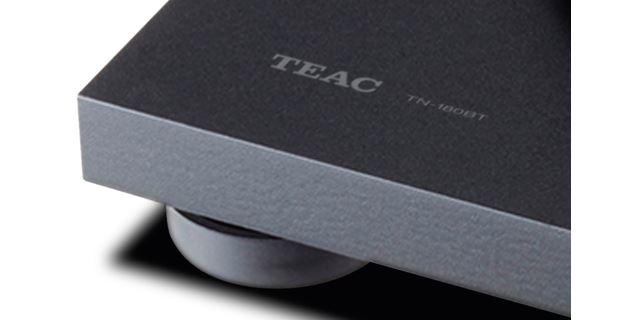

• High-density MDF cabinet for improved resonance reduction

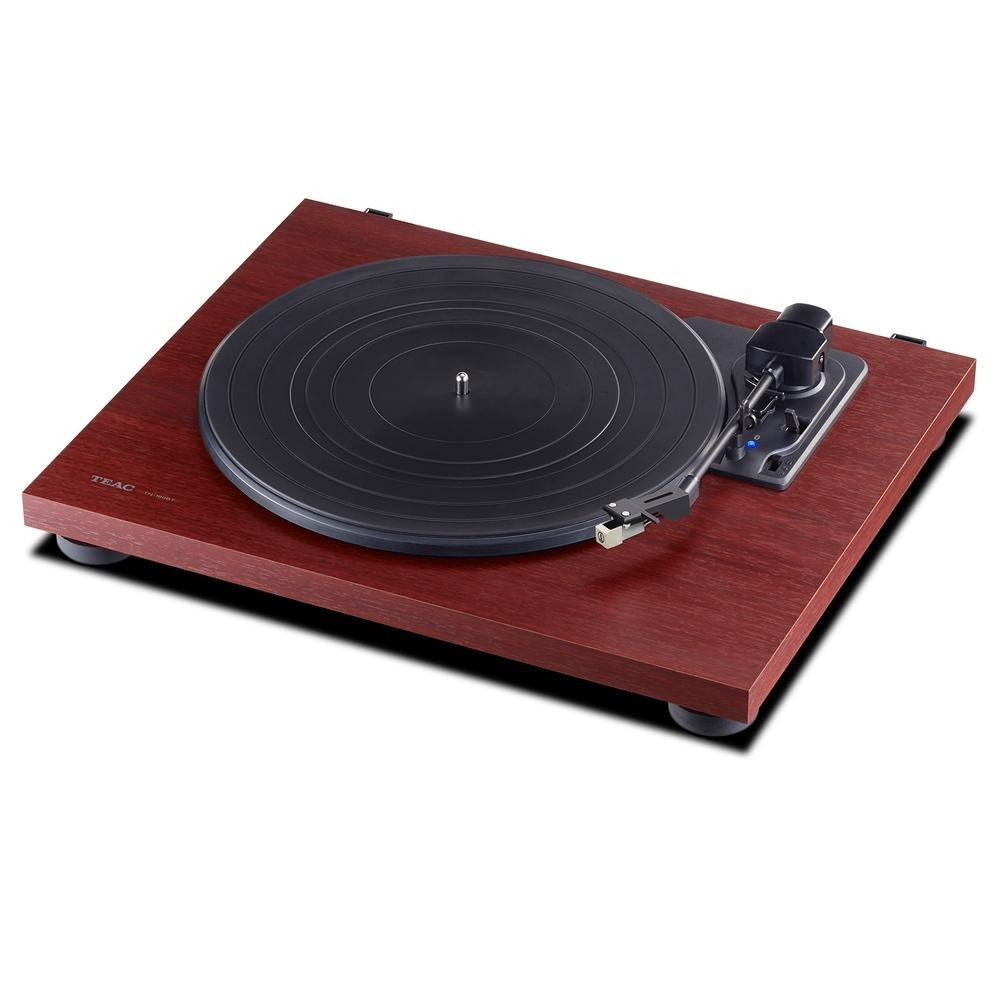

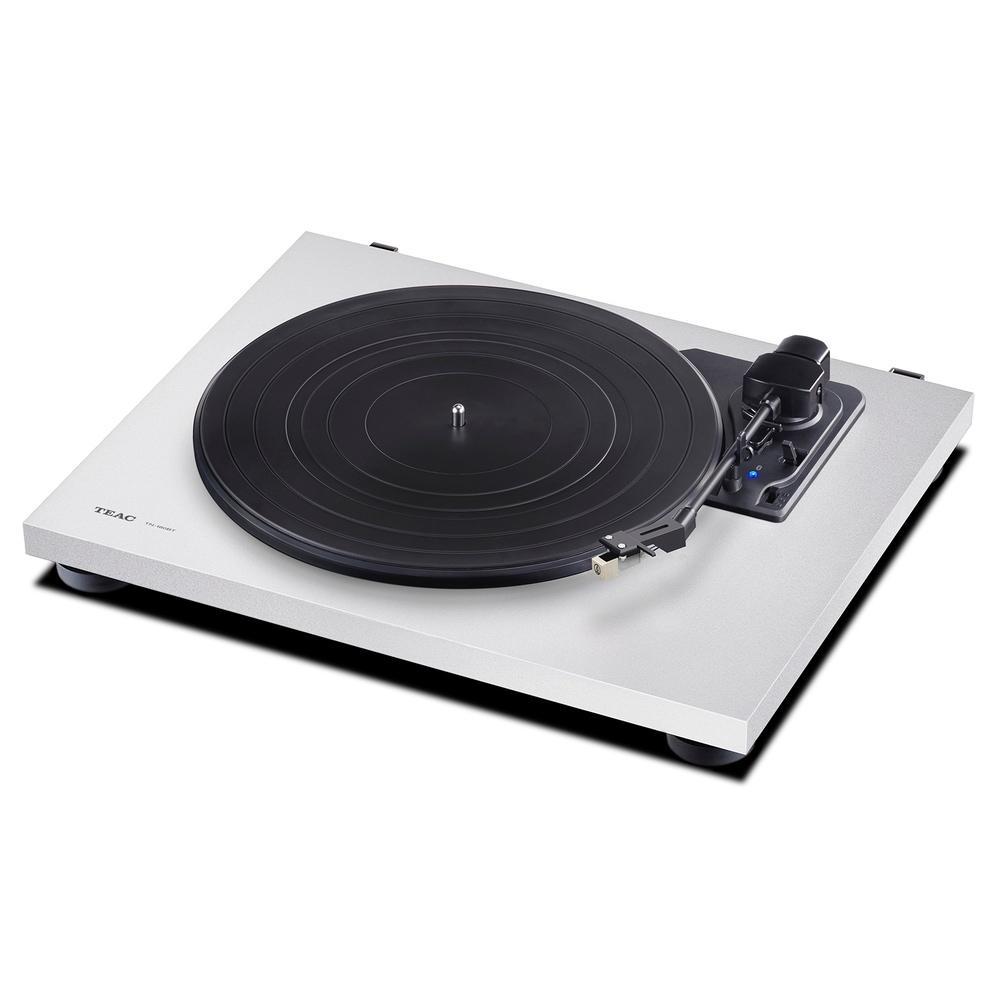

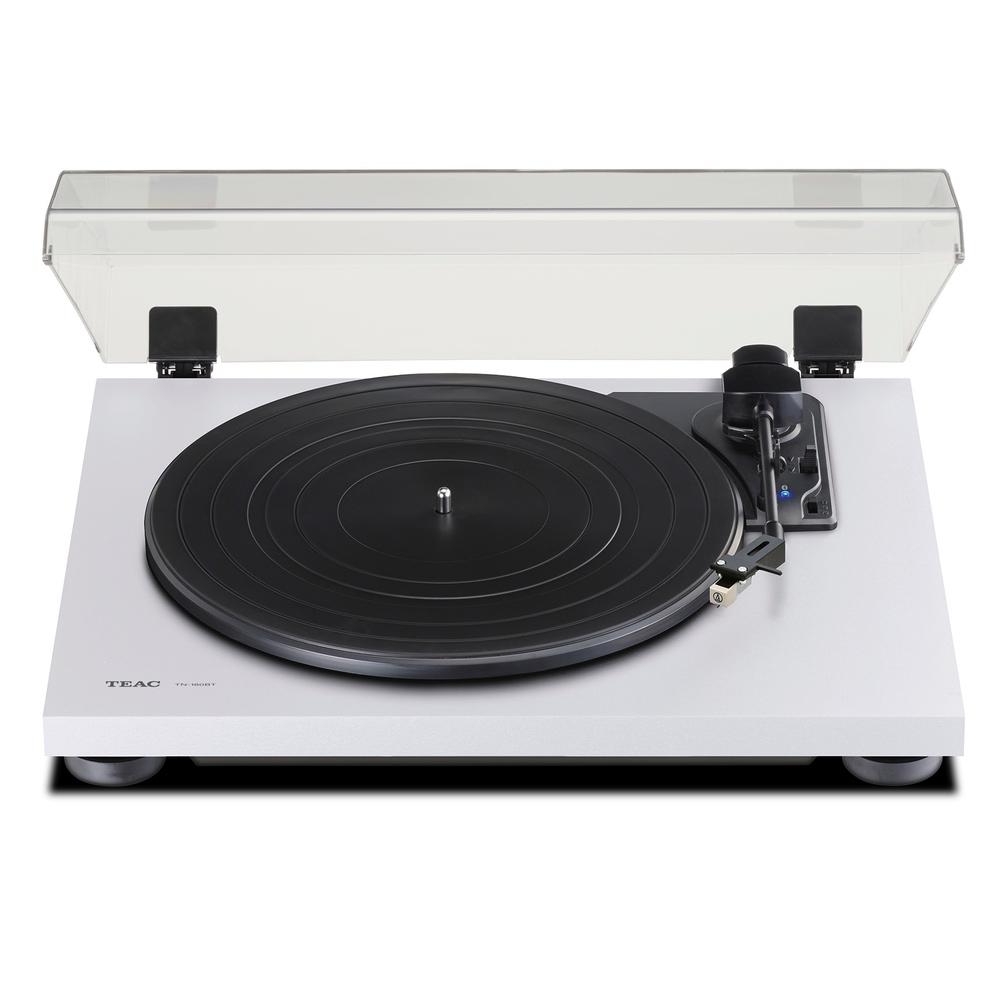

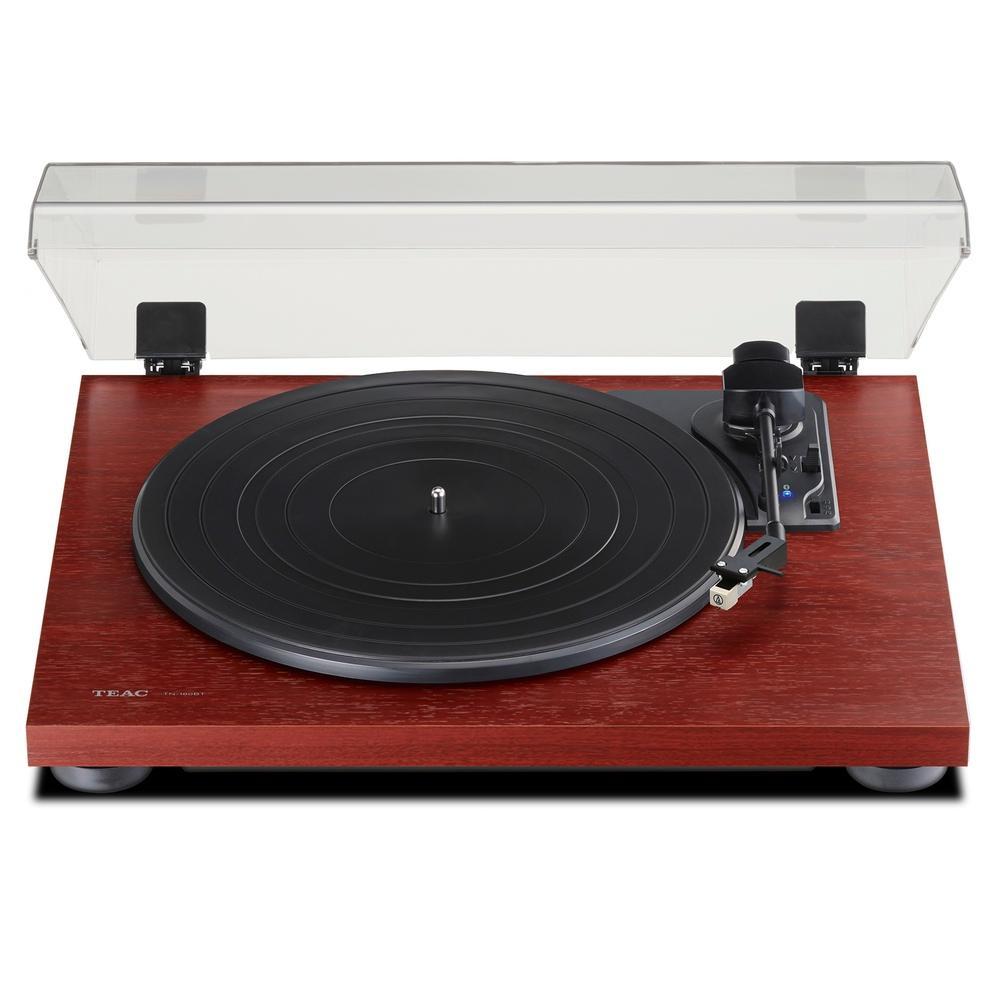

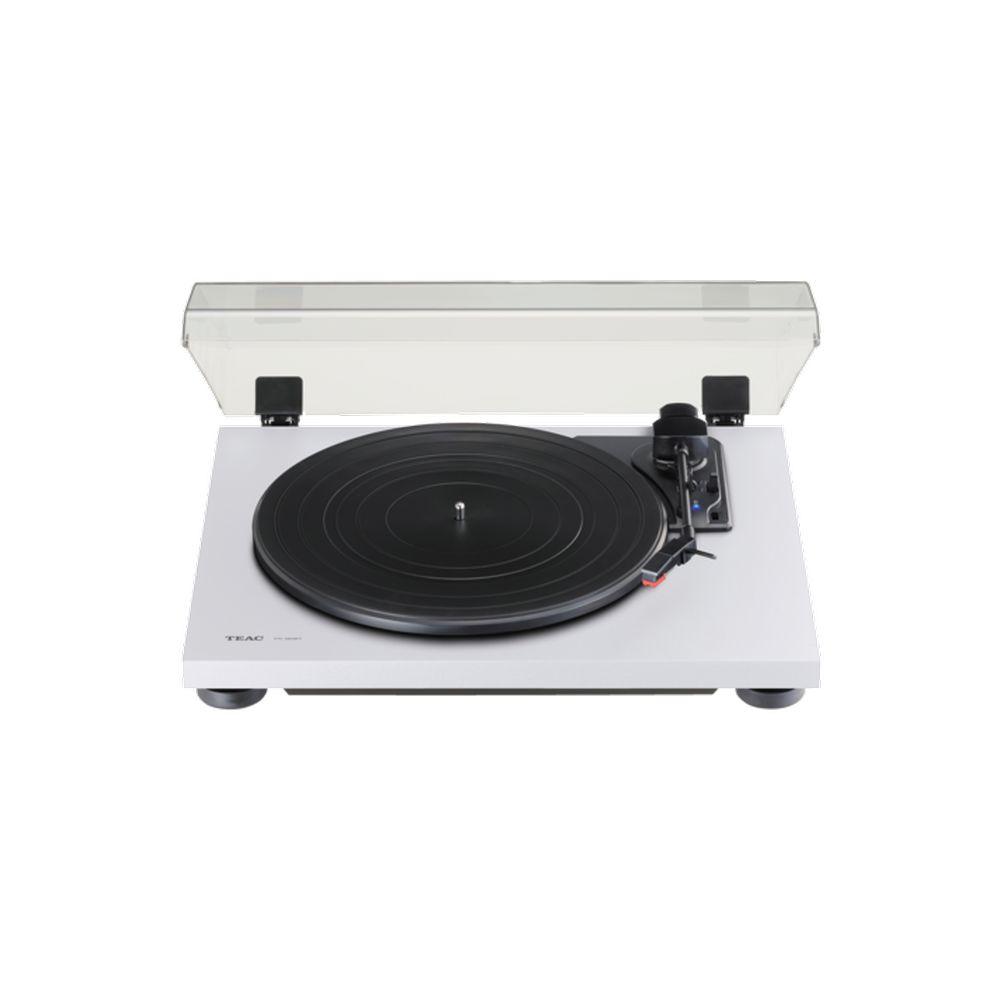

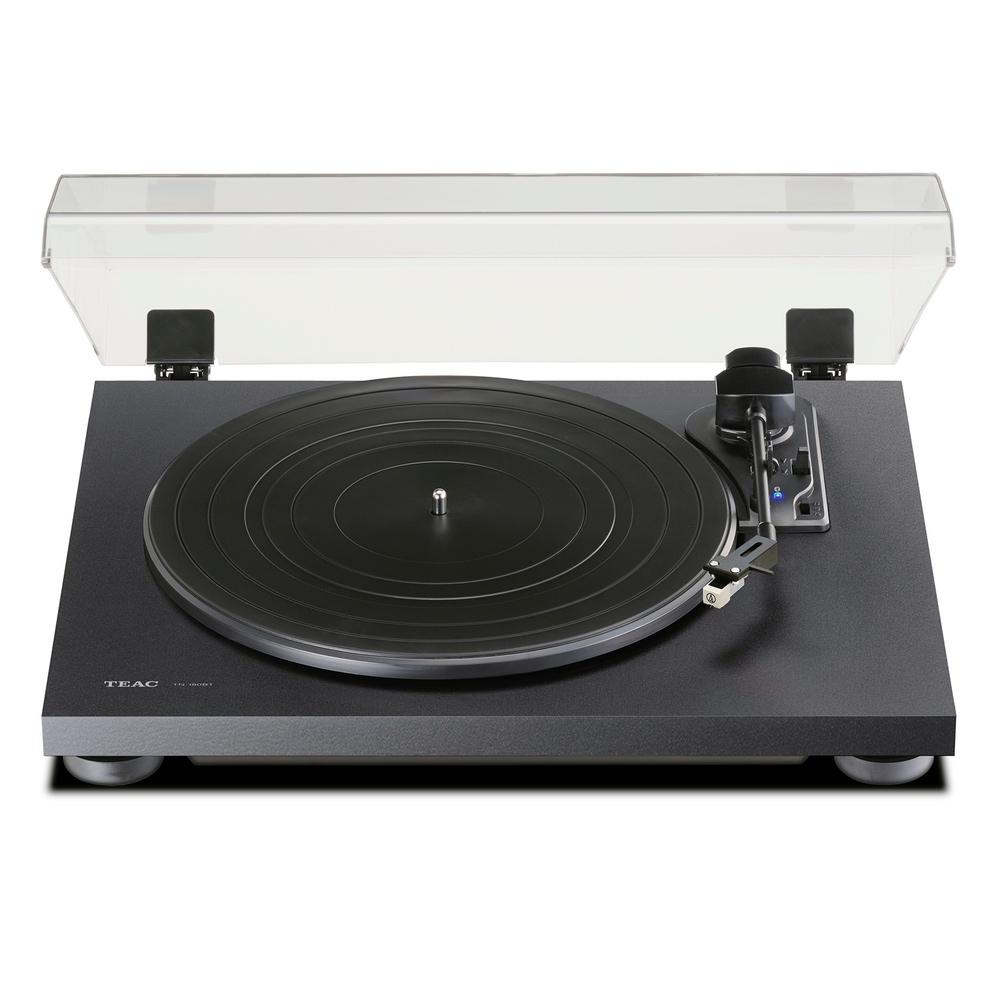

• Sleek design in black, white or cherry finish
• Auto-return and manual arm lifter

TURNTABLE

• Belt Drive
• Motor DC Motor
• Rotation Speeds 33-1/3, 45, 78 rpm
• Deviation of Speed +/-2%
• Wow-and-Flutters 0.25%
• Signal-to-Noise Ratio more than 64 dB (A-weighted, 20kHz, LPF)
• Turntable (Platter)
• Material Plastic
• Diameter 30 cm

TONE-ARM

• Type Straight, Static-balanced
• Effective Arm Length 200mm

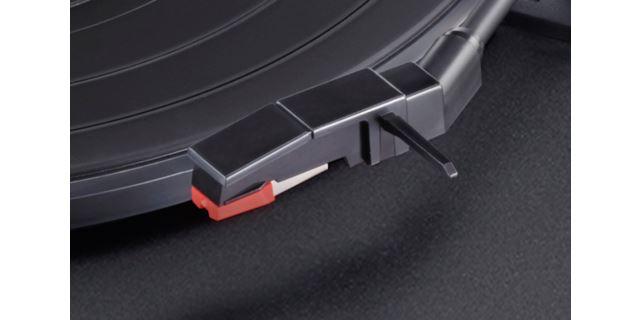

HEAD SHELL & CARTRIDGE

• Type MM-type
• Output Voltage 2.4mV (+/-3dB)

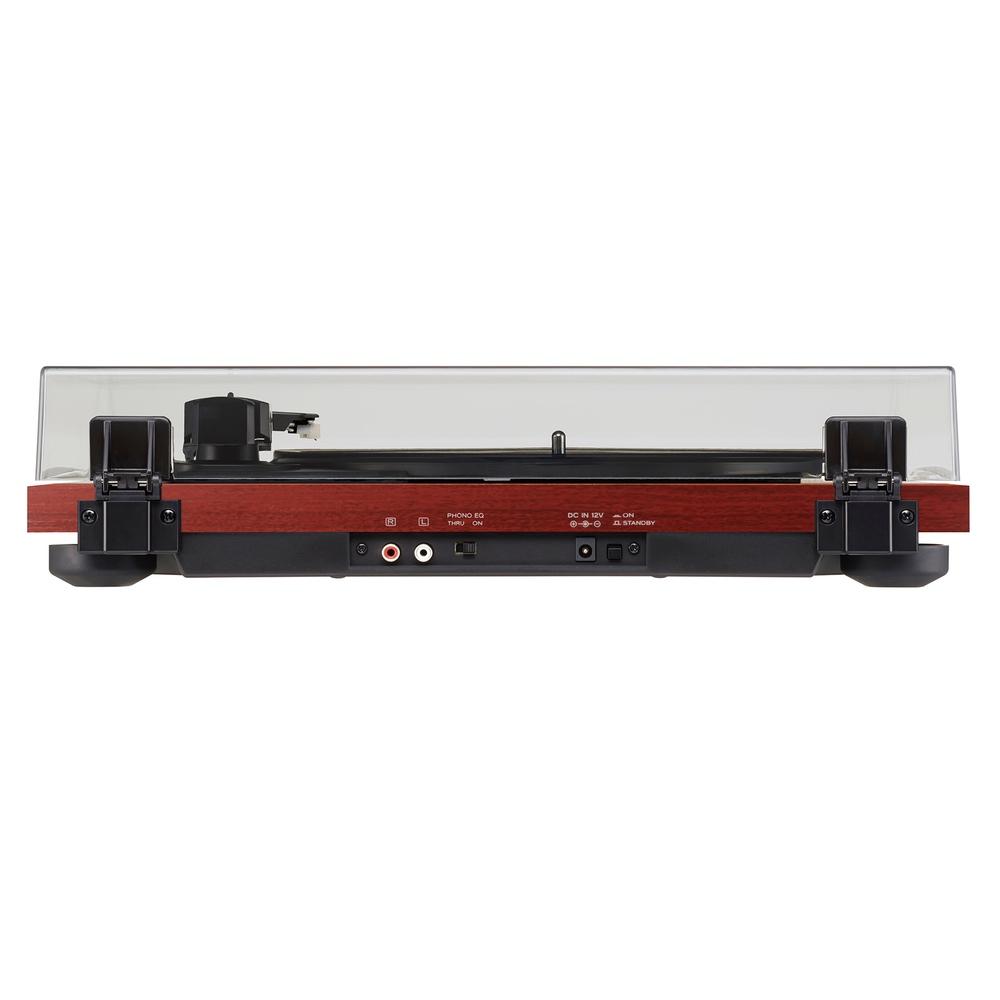

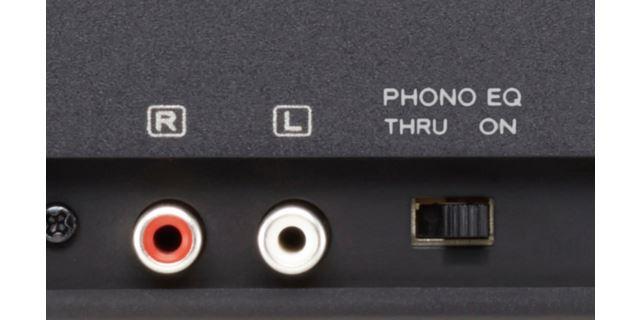

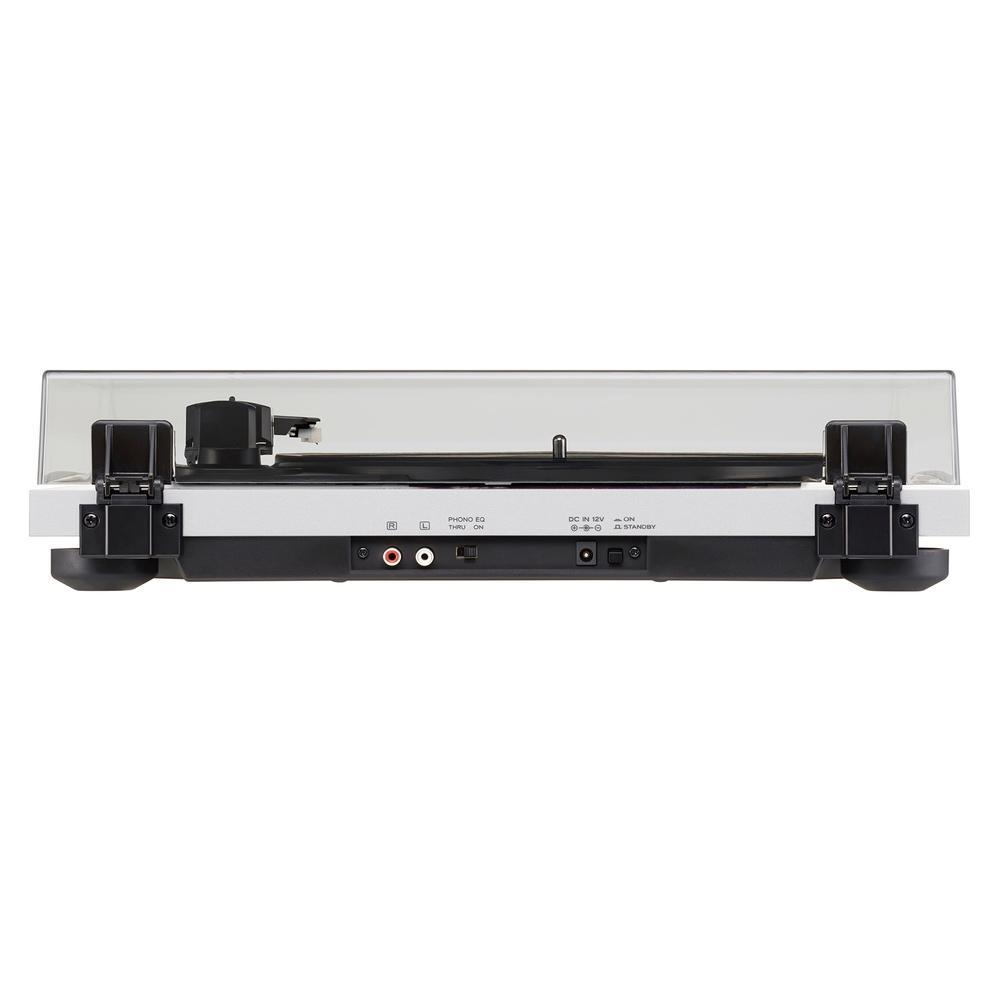

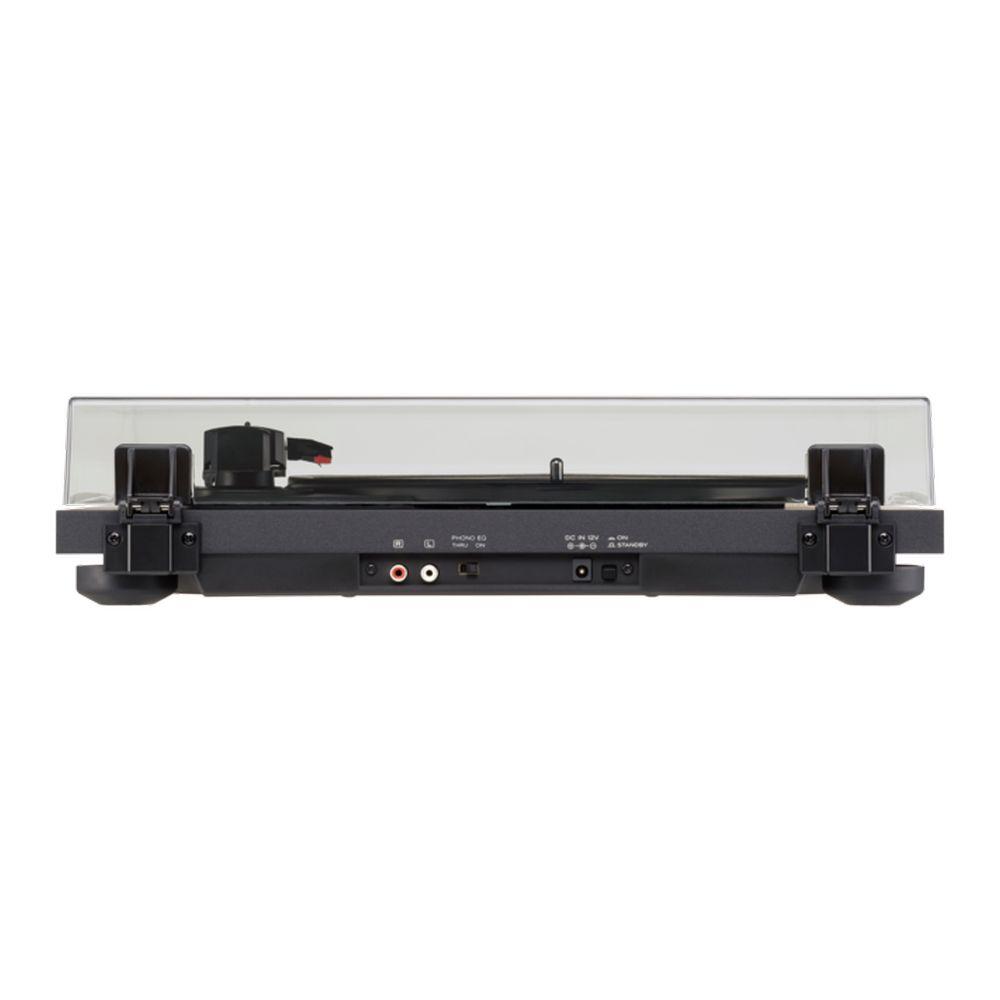

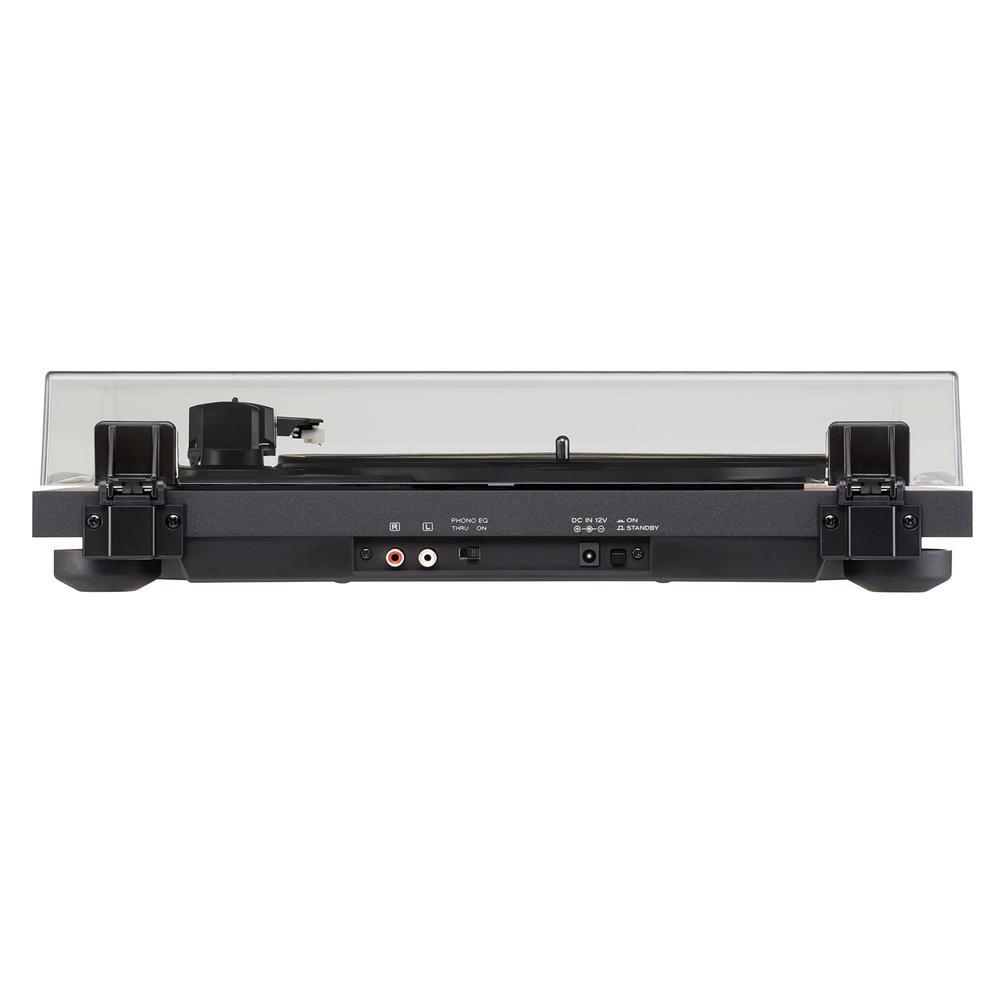

ANALOG OUTPUT

• Connectors RCA Pin Jack x 1 pair (Chrome-plated)
• Output Voltage
• PHONO 2.4 mV (+/-3dB)
• LINE 149 mV (-16.5dBV)

BLUETOOTH

• Range Approx. 10m
• Supported Codec SBC
• General
• Operation Power AC Adapter
• Input AC 100-240V, 50/60Hz
• Output DC 12V 500mA
• Power Consumption 1.5 Watts or less
• Standby Power 0.2 Watts or less
• Dimensions (W x H x D) 420 × 105× 356 mm / 16.5” x 4.1” x 14.0”
• Weight (Net) 4.9 kg / 10.8 lbs.
• Operating Temperature +5˚C to +35˚C

• TN-180BT Turntable
• Rubber Mat
• EP Adapter
• MM-type Cartridge  (Installed)
• Dust Cover
• Dust Cover Hinges
• RCA Audio Cable
• AC Adapter (GPE053A-V120050-Z)
• Owner’s Manual (including Warranty Card)
